HM4121015LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> HM4121015LF

HM4121015LF: DescriptionPULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT; CategoryPower management transformer; File Size453KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM4121015LF Overview

PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT

HM4121015LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
application	GATE DRIVE
ET product minimum value	65 V-us
high	20 mm
Insulation voltage	4200 V
JESD-609 code	e1
length	24 mm
Manufacturer's serial number	HM41
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	TRAY
physical size	24.0mm X 14.0mm X 20.0mm
Primary inductance	220 µH
surface mount	NO
Terminal surface	TIN SILVER COPPER
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	10:15
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

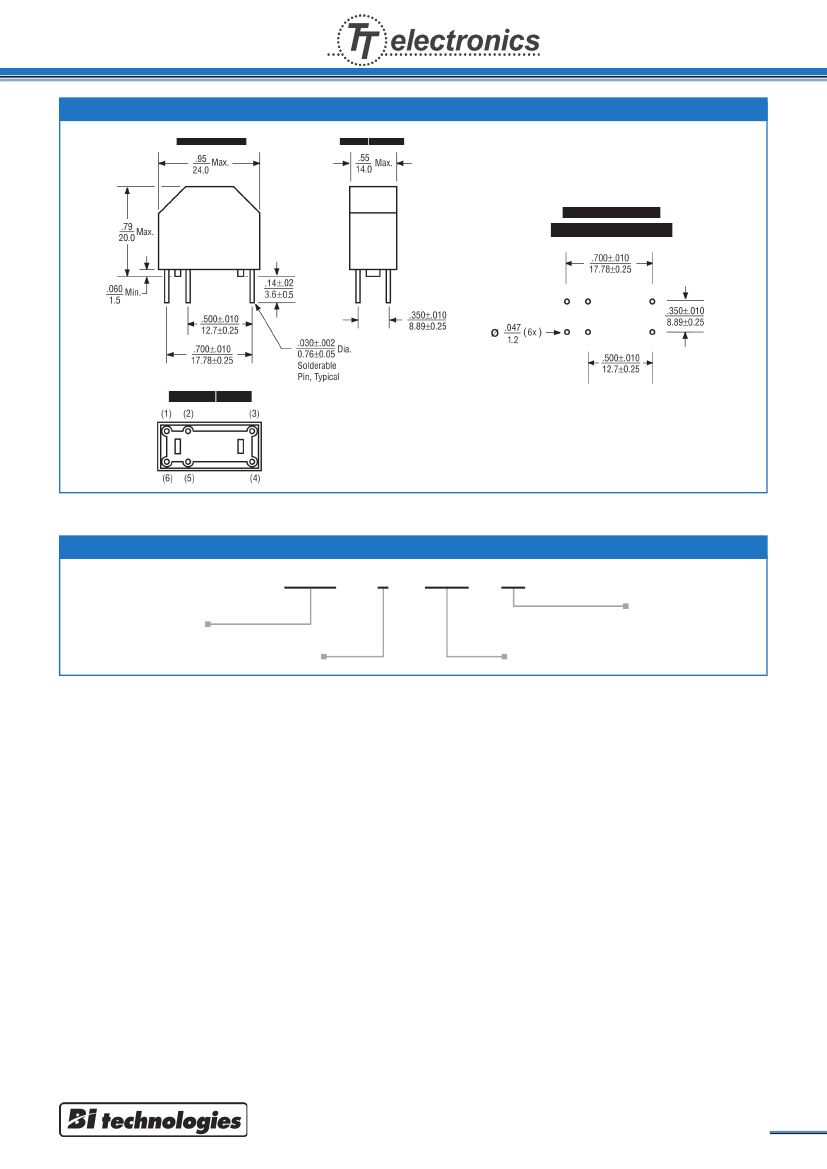

Electrical / Environmental



Toroid Style Gate Drive Transformers

RoH

il a

Comp

•

Operating Temperature Range

Insulation Resistance, Minimum

Temperature Rise, Maximum

Current Rating

-25°C to +85°C

100M

Ω

40°C

0.3 Amps

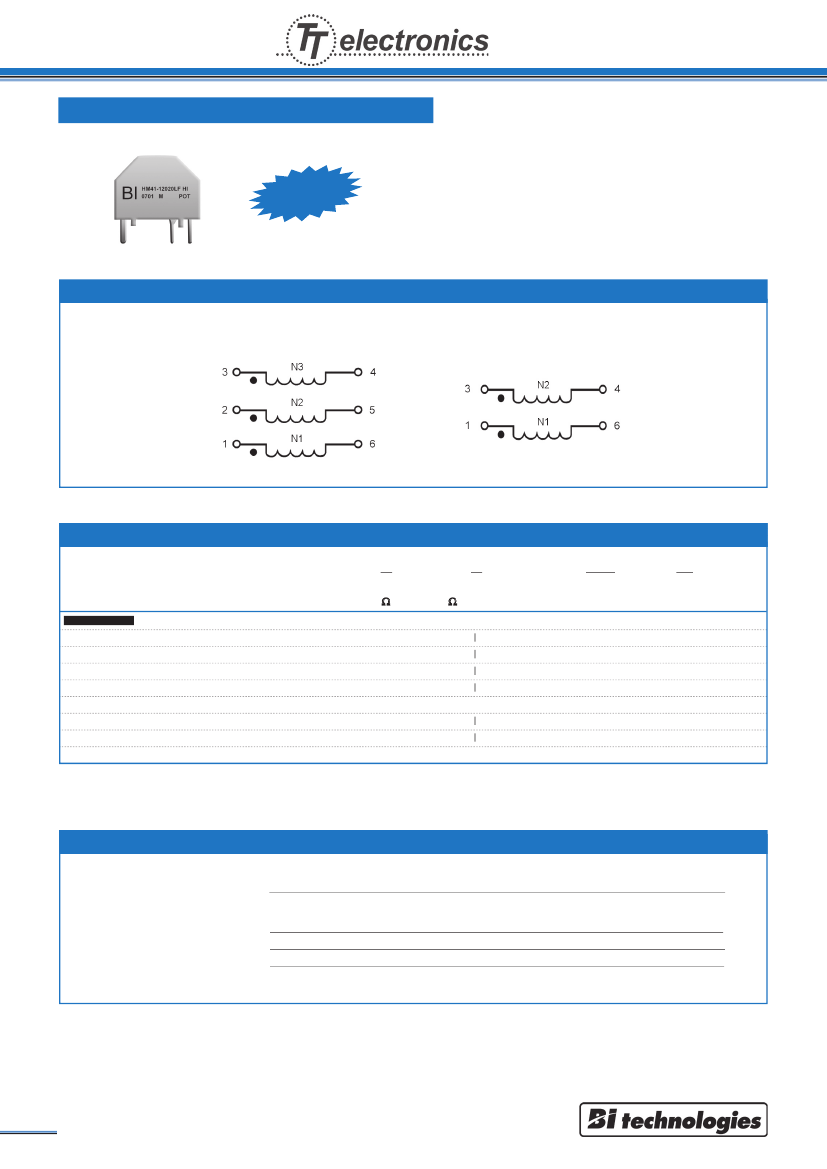

Schematics

(HM41-1XXXXLF)

Schematic 1

(HM41-2XXXXLF)

Schematic 2

Specifications @ 25°C

Part

Number

HM41-10812LF

HM41-21010LF

HM41-11010LF

HM41-11210LF

HM41-11410LF

HM41-21015LF

HM41-11510LF

HM41-12010LF

HM41-12020LF

Notes:

Inductance

Turns

10kHz, 50mV

±0

P(1-6)

N1:N2:N3

mH Min.

8:8:12

10:10

10:10:10

12:12:10

14:14:10

10:15

15:15:10

20:20:10

20:20:20

0.14

0.22

0.31

0.42

0.22

0.48

0.86

Leakage

(1)

Inductance

P(3-4)

µH Max.

0.5

DC Resistance

P(1-6)

P(3-4)

Ω

Max.

Ω

Max.

0.060

0.072

0.077

0.090

0.072

0.100

0.138

0.156

0.097

0.07

0.074

0.07

0.074

0.07

0.074

0.07

0.074

0.100

0.07

0.074

0.07

0.074

0.156

P(1-6)

V-µS Max.

130

Isolation

(2)

N3-N1/N2

N1-N2

Vrms

4200

500

4200

500

4200

500

Schematic

(1) Leakage inductance is measured at winding (3-4) with all other winding(s) shorted.

(2) Hi-Pot tester setting : 0.5mA maximum leakage current, 3 seconds duration.

Packaging

Standard:

Vacuum Tray

Model

HM41-1XXXXLF

HM41-2XXXXLF

Capacity Per Tray

(Units)

Capacity Per Carton

(Unit)

360

Last Updated: 21 April 2008

MAGNETIC COMPONENTS SELECTOR GUIDE 2007/08 EDITION

We reserve the right to change specifications without prior notice.

www.bitechnologies.com

HM4121015LF Related Products

	HM4121015LF	HM4111210LF	HM4110812LF	HM4121010LF	HM4112010LF	HM4112020LF	HM4111510LF	HM4111410LF	HM4111010LF
Description	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S), ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
application	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE
ET product minimum value	65 V-us	78 V-us	52 V-us	65 V-us	130 V-us	130 V-us	98 V-us	91 V-us	65 V-us
high	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Insulation voltage	4200 V	500 V	500 V	4200 V	500 V	500 V	500 V	500 V	500 V
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1	e1
length	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm	24 mm
Manufacturer's serial number	HM41	HM41	HM41	HM41	HM41	HM41	HM41	HM41	HM41
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY
physical size	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm	24.0mm X 14.0mm X 20.0mm
Primary inductance	220 µH	310 µH	140 µH	220 µH	860 µH	860 µH	480 µH	420 µH	220 µH
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	10:15	12:12:10	8:8:12	10:10	20:20:10	20:20:20	15:15:10	14:14:10	10:10:10
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	TT Electronics plc	-	-	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
