86563005067LF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 86563005067LF

Preview

86563005067LF: DescriptionConnector Accessory, 0.06in Max Cable Dia, Contact, Phosphor Bronze, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

86563005067LF Overview

Connector Accessory, 0.06in Max Cable Dia, Contact, Phosphor Bronze, ROHS COMPLIANT

86563005067LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	CONTACT FINISH: GOLD, TERMINATION TIN OVER NICKEL
Assembly name	CONTACT
Maximum number of cable entries	0.06 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	MALE
Contact style	BLADE PIN
DIN compliance	NO
Finished thickness	15
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Terminal type	CRIMP
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

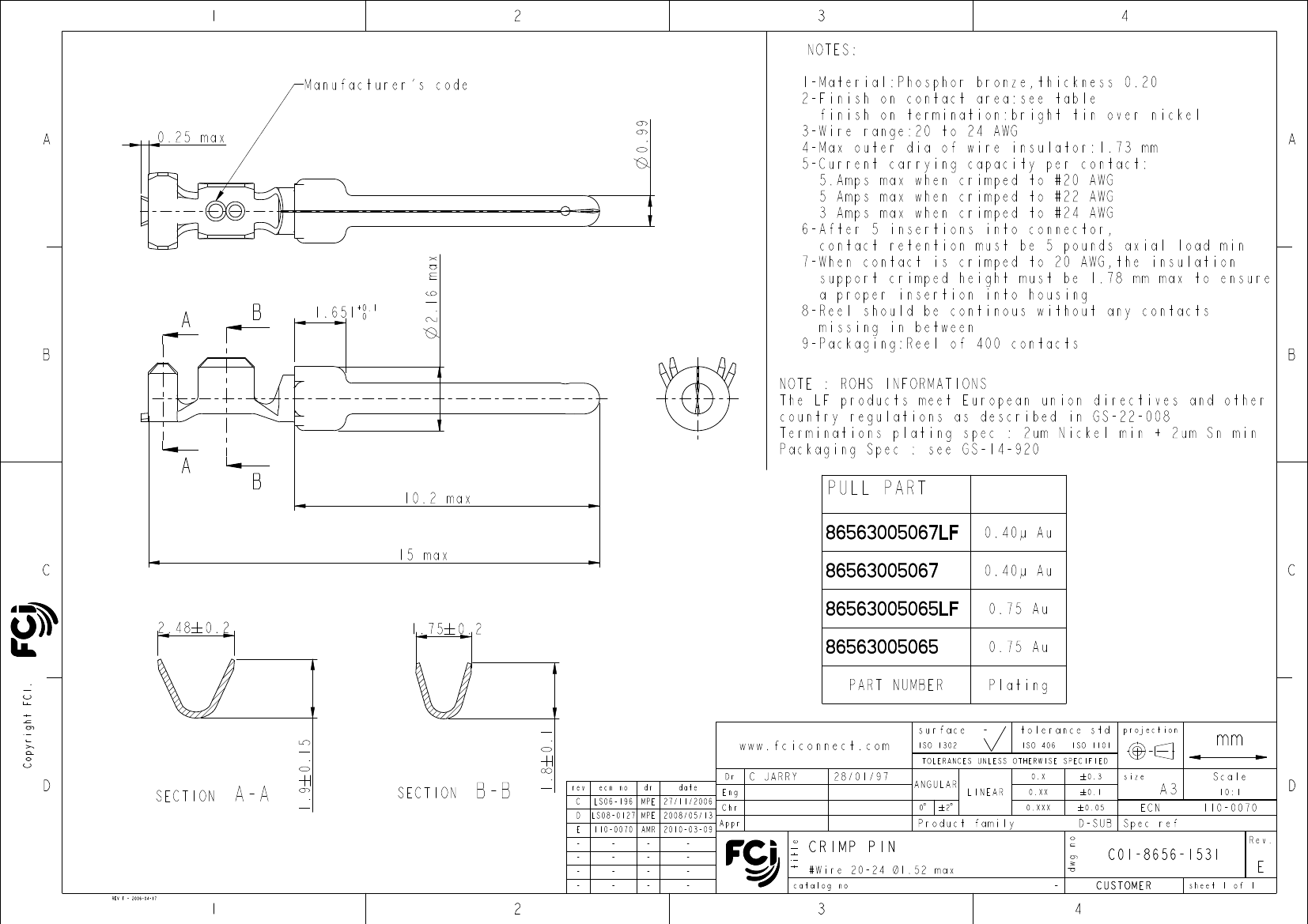

NOTES:

4

Manufacturer's code

0.99

A

0.25 max

A

B

1.651

+0.1

0

1-Material:Phosphor bronze,thickness 0.20

2-Finish on contact area:see table

finish on termination:bright tin over nickel

3-Wire range:20 to 24 AWG

4-Max outer dia of wire insulator:1.73 mm

5-Current carrying capacity per contact:

5.Amps max when crimped to #20 AWG

5 Amps max when crimped to #22 AWG

3 Amps max when crimped to #24 AWG

6-After 5 insertions into connector,

contact retention must be 5 pounds axial load min

7-When contact is crimped to 20 AWG,the insulation

support crimped height must be 1.78 mm max to ensure

a proper insertion into housing

8-Reel should be continous without any contacts

missing in between

9-Packaging:Reel of 400 contacts

NOTE : ROHS INFORMATIONS

The LF products meet European union directives and other

country regulations as described in GS-22-008

Terminations plating spec : 2um Nickel min + 2um Sn min

Packaging Spec : see GS-14-920

A

2.16 max

B

A

B

10.2 max

PULL PART

86563005067LF

0.40µ Au

0.75 Au

Plating

-

tolerance std

ISO 406

ISO 1101

C

15 max

86563005067

86563005065LF

C

2.48 0.2

1.75 0.2

86563005065

Copyright FCI.

PART NUMBER

1.8 0.1

surface

projection

1.9 0.15

www.fciconnect.com

Dr

rev

C

D

E

-

ecn no

LS06-196

I10-0070

-

dr

date

Eng

Chr

Appr

MPE 27/11/2006

AMR 2010-03-09

-

ISO 1302

mm

Scale

10:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

D

SECTION

A-A

SECTION

B-B

C JARRY

28/01/97

ANGULAR

0

2

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

A3

ECN

D

LS08-0127 MPE 2008/05/13

I10-0070

Rev.

Product family

dwg no

title

D-SUB Spec ref

CRIMP PIN

#Wire 20-24 Ø1.52 max

-

C01-8656-1531

CUSTOMER

sheet

1 of 1

E

catalog no

REV F - 2006-04-17

1

2

3

PDM: Rev:E

STATUS:

Released

4

Printed: Apr 24, 2010

.

86563005067LF Related Products

	86563005067LF	86563005065LF	86563005067	86563005065
Description	Connector Accessory, 0.06in Max Cable Dia, Contact, Phosphor Bronze, ROHS COMPLIANT	Wire Terminal, ROHS COMPLIANT	Connector Accessory, 0.068in Max Cable Dia, Contact, Phosphor Bronze,	Wire Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	unknown
Base Number Matches	1	1	1	1
Is it Rohs certified?	conform to	conform to	incompatible	-
Other features	CONTACT FINISH: GOLD, TERMINATION TIN OVER NICKEL	-	MATING: GOLD, TERMINATION: TIN OVER NICKEL	MATING: GOLD, TERMINATION: TIN OVER NICKEL
Assembly name	CONTACT	-	CONTACT	CONTACT
Maximum number of cable entries	0.06 inch	-	0.068 inch	0.068 inch
Connector bracket type	CONNECTOR ACCESSORY	-	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	MALE	-	MALE	MALE
Contact style	BLADE PIN	-	BLADE PIN	BLADE PIN
DIN compliance	NO	-	NO	NO
Finished thickness	15	-	15	30
IEC compliance	NO	-	NO	NO
MIL compliance	NO	-	NO	NO
Material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT
Terminal type	CRIMP	-	CRIMP	CRIMP
Maximum wire diameter	20 AWG	-	20 AWG	20 AWG
Minimum wire diameter	24 AWG	-	24 AWG	24 AWG
