5434-0432-2 datasheet, PDF - EEWORLD Datasheet

5434-0432-2: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerLeamax Enterprise Co., Ltd.

Download Datasheet Parametric View All

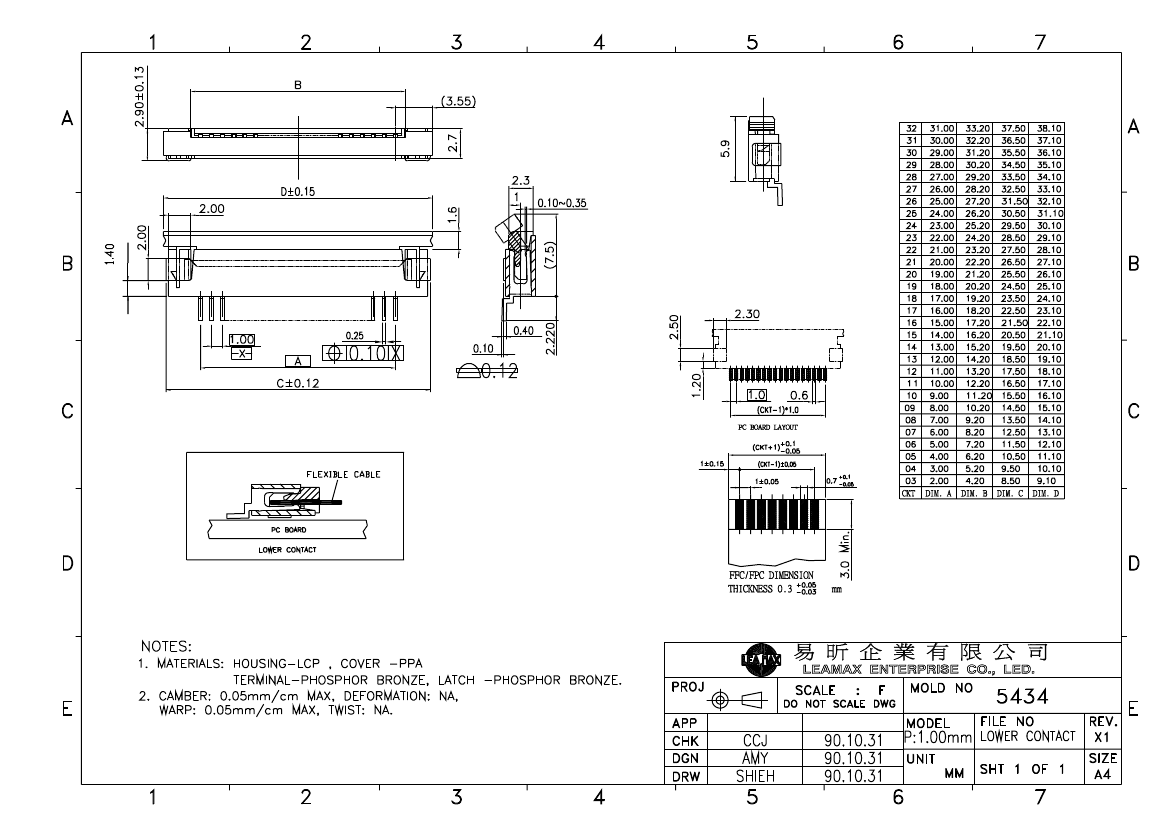

5434-0432-2 Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever

Parameter Name	Attribute value
Maker	Leamax Enterprise Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE AND REEL PACKAGING
body width	0.114 inch
subject depth	0.232 inch
body length	0.398 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SINGLE PRONG
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.039 inch
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1
