5962-87509012A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-87509012A

5962-87509012A: DescriptionBuffer, 10H Series, 6-Func, 1-Input, ECL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size100KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-87509012A Overview

Buffer, 10H Series, 6-Func, 1-Input, ECL, CQCC20, CERAMIC, LCC-20

5962-87509012A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
Other features	STROBED OUTPUTS
Control type	ENABLE HIGH
series	10H
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Logic integrated circuit type	BUFFER
Number of digits	6
Number of functions	6
Number of entries	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	46 mA
propagation delay (tpd)	1.9 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1

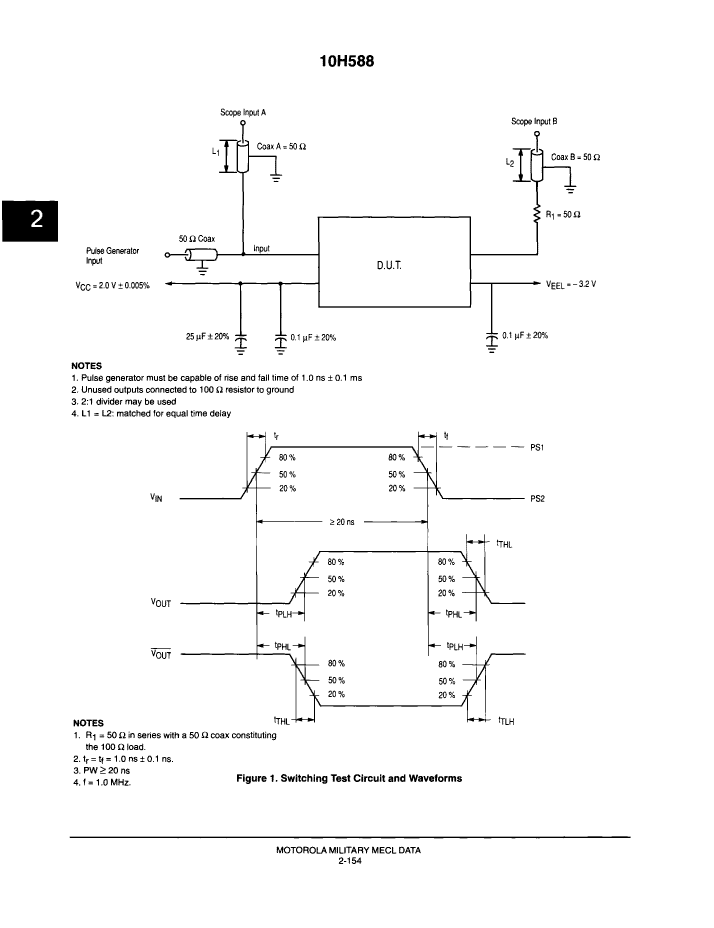

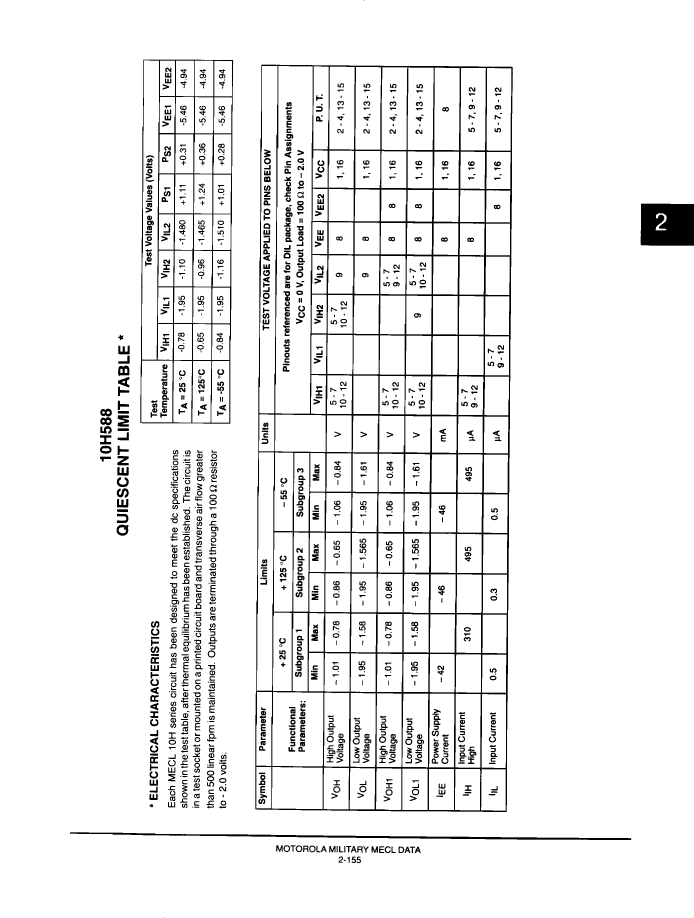

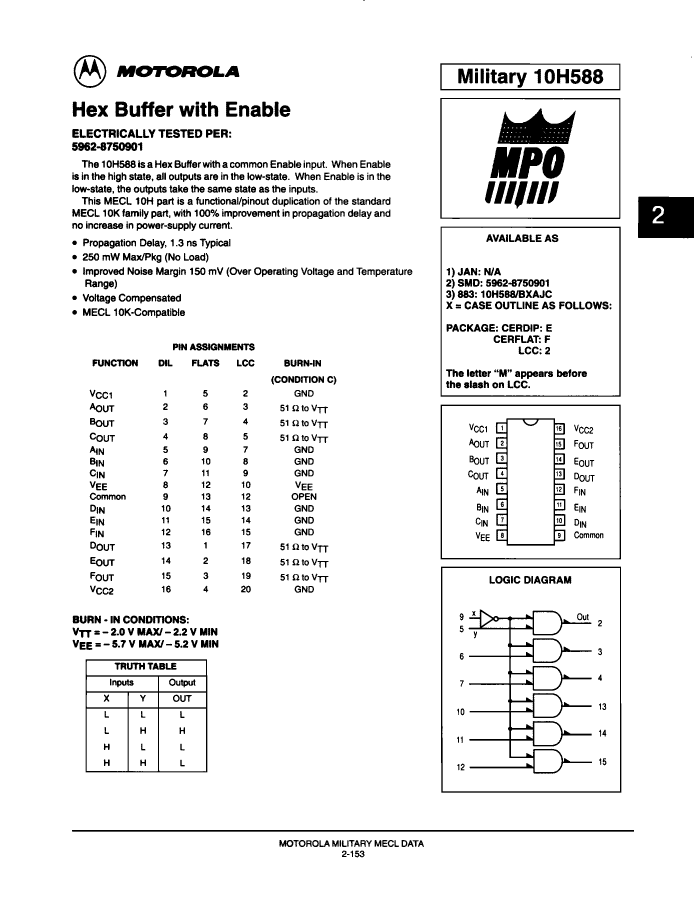

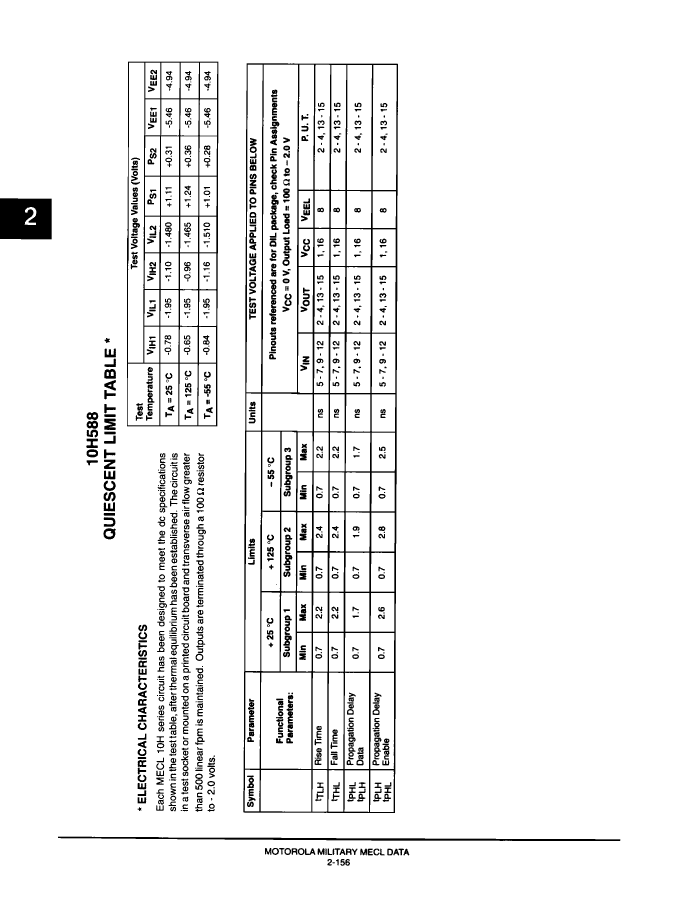

Preview

Download Datasheet

View All

5962-87509012A Related Products

	5962-87509012A	10H588/BEAJC	GRM0222C1H7R5DA03	GRM0222C1H7R6WA03	5962-8750901EA	5962-8750901FA
Description	Buffer, 10H Series, 6-Func, 1-Input, ECL, CQCC20, CERAMIC, LCC-20	10H SERIES, HEX 1-INPUT NON-INVERT GATE, CDIP16, CERDIP-16	Chip Multilayer Ceramic Capacitors for General Purpose	Chip Multilayer Ceramic Capacitors for General Purpose	10H SERIES, HEX 1-INPUT NON-INVERT GATE, CDIP16, CERDIP-16	Buffer, 10H Series, 6-Func, 1-Input, ECL, CDFP16, CERAMIC, FP-16
package instruction	QCCN, LCC20,.35SQ	DIP, DIP16,.3	-	-	DIP,	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	-	-	unknown	unknown
Other features	STROBED OUTPUTS	STROBED OUTPUTS	-	-	STROBED OUTPUTS	STROBED OUTPUTS
series	10H	10H	-	-	10H	10H
JESD-30 code	S-CQCC-N20	R-GDIP-T16	-	-	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	-	-	e0	e0
length	8.885 mm	19.495 mm	-	-	19.49 mm	9.65 mm
Logic integrated circuit type	BUFFER	BUFFER	-	-	BUFFER	BUFFER
Number of functions	6	6	-	-	6	6
Number of entries	1	1	-	-	1	1
Number of terminals	20	16	-	-	16	16
Maximum operating temperature	125 °C	125 °C	-	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	-	-	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	-	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP	-	-	DIP	DFP
Package shape	SQUARE	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	-	-	IN-LINE	FLATPACK
Maximum supply current (ICC)	46 mA	46 mA	-	-	46 mA	46 mA
propagation delay (tpd)	1.9 ns	1.9 ns	-	-	1.9 ns	1.9 ns
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	5.08 mm	-	-	5.08 mm	2.15 mm
surface mount	YES	NO	-	-	NO	YES
technology	ECL	ECL	-	-	ECL	ECL
Temperature level	MILITARY	MILITARY	-	-	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	-	-	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	-	-	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	-	-	DUAL	DUAL
width	8.885 mm	7.62 mm	-	-	7.62 mm	6.415 mm
Base Number Matches	1	1	-	-	1	1
