50960035171E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 50960035171E

50960035171E: DescriptionStrip Terminal Block,; CategoryThe connector terminals; File Size559KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

50960035171E Overview

Strip Terminal Block,

50960035171E Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

Pin Strip |

Spacing 15.24 mm

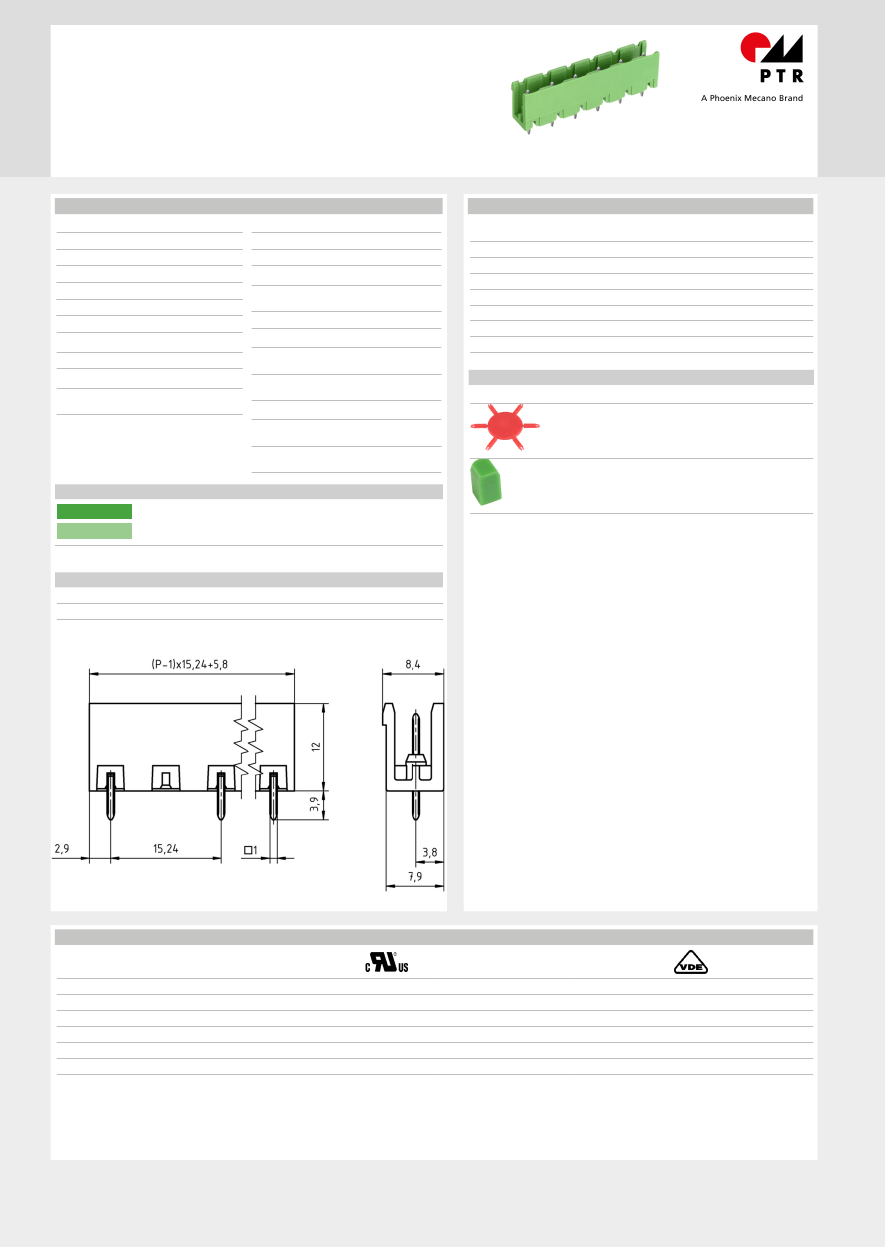

STLZ960/..-15.24-V-GREEN

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

Order Data (Spacing 15.24 mm)

Insulating Material

Material

Flammability Class

PA 6.6

21.04

36.28

51.52

66.76

82.00

97.24

112.48

STLZ960/2-15.24-V-GREEN

STLZ960/3-15.24-V-GREEN

STLZ960/4-15.24-V-GREEN

STLZ960/5-15.24-V-GREEN

STLZ960/6-15.24-V-GREEN

STLZ960/7-15.24-V-GREEN

STLZ960/8-15.24-V-GREEN

Poles

Width (mm)

Article Designation

Article

Number

50960025171 E

50960035171 E

50960045171 D

50960055171 D

50960065171 D

50960075171 D

50960085171 D

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

PCB Hole Diameter

1.4 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Contact Pin

Copper

Alloy

Accessoires

Figure

Designation

Coding Star CS2-5.0/5.08-RED

Article Number

Order Data: 50000000024

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Separating Element

SE-STL950-GREEN

Order Data: 50950000002

Colours

GREEN, RAL 6018

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Counterparts (Spacing 15.24 mm)

Terminal Block

AKZ960

In combination of connectors with different admission data, the lower value is valid.

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Test Voltage

Pollution Degree

600 V

15 A

600 V

15 A

630 V

12 A

III

2.20 kV

6.0 kV

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu
