MKP 1839 HQ
Vishay Roederstein
AC and Pulse Metallized Polypropylene Film Capacitors
MKP Axial Type
FEATURES
Supplied loose in box, taped on ammopack or reel
available on request
•
Compliant to RoHS directive 2002/95/EC
Ød
t
l
t
l
l
t
d
ENCAPSULATION
Plastic-wrapped, epoxy resin sealed. Flame
retardant.
APPLICATIONS
High current and high pulse operations
CLIMATIC TESTING CLASS ACC. TO
IEC 60068-1
55/110/56
REFERENCE STANDARDS
IEC 60384-17
CAPACITANCE RANGE (E12 SERIES)
0.1 µF to 3.3 µF
MARKING
Manufacturer’s logo; code for dielectric material;
manufacturer’s
type
designation;
C-code;
rated
voltage-code; tolerance-code; special n °C-value; tolerance;
rated voltage; year and week; manufacturer’s location
CAPACITANCE TOLERANCE
±5%
LEADS
Tinned wire
DIELECTRIC
Polypropylene film
RATED TEMPERATURE
85 °C
ELECTRODES
Metallized
MAXIMUM APPLICATION TEMPERATURE
At 85 °C: U
C
= 1.0 U
R
at 110 °C: U
C
= 0.7 U
R
CONSTRUCTION
Series construction
PULL TEST ON LEADS
≥
20 N in direction of leads according to IEC 60068-2-21
RATED (DC) VOLTAGE
630 V, 850 V, 1250 V, 1600 V
BENT TEST ON LEADS
2 bends trough 90° with half of the force used in pull test
RELIABILITY
RATED (AC) VOLTAGE
300 V, 400 V, 450 V, 600 V
Operation life > 300 000 h
Failure rate < 5 FIT (40 °C and 0.5 x U
R
)
DETAIL SPECIFICATION
For more detailed data and test requirements contact:
dc-film@vishay.com
www.vishay.com
258
For technical questions, contact:
dc-film@vishay.com
Document Number: 28162
Revision: 21-Apr-10
MKP 1839 HQ
AC and Pulse Metallized Polypropylene Film Capacitors
Vishay Roederstein
MKP Axial Type
COMPOSITION OF CATALOG NUMBER
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
Example:
468 = 680 nF
R
G
(1)
CAPACITANCE
(numerically)
SPECIAL LETTER
FOR TAPED
Bulk
Reel
Ammopack
Special
TYPE
HIGH QUALITY
CAPACITOR
MKP 1839
VOLTAGE (Vdc)
63 = 630 V
08 = 850 V
12 = 1250 V
13 = 1600 V
X
XX
08
X
HQ
X
TOLERANCE
4
±5%
Note
(1)
For detailed tape specifications refer to “Packaging Information”:
www.vishay.com/doc?28139
or end of catalog
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
0.1 µF < C
≤
0.47 µF
0.47 µF < C
≤
1 µF
1 µF < C
≤
3.3 µF
Rated voltage pulse slope
(dU/dt)
R
at U
Rdc
U
P-P
peak-to-peak voltage
R between leads,
for C
≤
0.33 µF at 500 V, 1 min
RC between leads,
for C > 0.33 µF at 500 V, 1 min
R between interconnecting and
wrapped film at 500 V, 1 min
Withstanding (DC) voltage (cut off
current 10 mA), rise time 100 V/s
Withstanding (DC) voltage between
leads and wrapped film
(1.4 x U
Rac
+ 2000)
Maximum application temperature
1008 V
1360 V
1 min
2840 V, 1 min
110 °C
at 1 kHz
≤
3 x 10
-4
≤
3 x 10
-4
≤
3 x 10
-4
630 V
DC
500 V/µs
700 V
850 V
DC
1000 V/µs
1130 V
> 100 GΩ
> 30 000 s
> 100 GΩ
2000 V
2560 V
VALUE
at 10 kHz
≤
5 x 10
-4
≤
8 x 10
-4
≤
10 x 10
-4
1250 V
DC
1000 V/µs
1400 V
at 100 kHz
≤
35 x 10
-4
≤
50 x 10
-4
≤
60 x 10
-4
1600 V
DC
1000 V/µs
1600 V
Document Number: 28162
Revision: 21-Apr-10
For technical questions, contact:
dc-film@vishay.com
www.vishay.com
259
MKP 1839 HQ
Vishay Roederstein
AC and Pulse Metallized Polypropylene Film Capacitors
MKP Axial Type
VOLTAGE CODE 63
630 V
DC
/300 V
AC
CAPACITANCE
DIMENSIONS
max.
(mm)
D
7
8
8.5
9.5
10
11
10.5
11
12
13
14
16
19
23
28
L
26.5
26.5
26.5
26.5
26.5
26.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
MASS
(g)
0.9
1.2
1.4
1.6
1.9
2.3
2.6
3.0
3.5
4.2
5.1
6.1
9.0
13.1
19.5
d
t
± 0.08 mm
(mm)
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
SPQ
(1)
VOLTAGE CODE 08
850 V
DC
/400 V
AC
DIMENSIONS
max.
(mm)
D
8.5
10
11
11.5
13
14
15
16.5
15
16.5
18
19.5
24
-
-
L
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
-
-
MASS
(g)
1.6
2.3
2.7
3.2
3.9
4.6
5.4
6.5
5.4
6.5
7.8
9.4
13.9
-
-
d
t
± 0.08 mm
(mm)
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
-
-
SPQ
(1)
Pieces
1500
1000
850
750
1000
1000
1000
1000
1000
1000
750
600
400
-
-
(µF)
0.1
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.5
2.2
3.3
Pieces
2000
1750
1500
1250
1000
900
900
750
650
500
1000
900
600
450
300
VOLTAGE CODE 12
1250 V
DC
/450 V
AC
CAPACITANCE
DIMENSIONS
max.
(mm)
D
8.5
10
11
11.5
13
14
15
16.5
18
20
21.5
23.5
-
-
-
L
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
-
-
-
MASS
(g)
1.6
2.3
2.7
3.2
3.9
4.6
5.4
6.5
7.7
9.2
11.1
13.4
-
-
-
d
t
± 0.08 mm
(mm)
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
-
-
-
SPQ
(1)
VOLTAGE CODE 13
1600 V
DC
/600 V
AC
DIMENSIONS
max.
(mm)
D
10.5
12.5
13.5
15
16.5
18
19.5
21.5
23.5
25.5
-
-
-
-
-
L
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
-
-
-
-
-
MASS
(g)
2.7
3.9
4.6
5.5
6.7
8.1
9.5
11.3
13.4
16.2
-
-
-
-
-
d
t
± 0.08 mm
(mm)
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
1.0
-
-
-
-
-
SPQ
(1)
Pieces
1000
600
500
500
900
750
600
500
400
350
-
-
-
-
-
(µF)
0.1
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.5
2.2
3.3
Note
(1)
Pieces
1500
1000
1000
800
650
500
1000
900
750
600
500
400
-
-
-
SPQ = Standard Packing Quantity
www.vishay.com
260
For technical questions, contact:
dc-film@vishay.com
Document Number: 28162
Revision: 21-Apr-10
MKP 1839 HQ
AC and Pulse Metallized Polypropylene Film Capacitors
Vishay Roederstein
MKP Axial Type
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed-circuit boards by means of automatic insertion machines.
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the capacitor body is in good contact with the printed-circuit
board.
•
For L
≤
19 mm capacitors shall be mechanically fixed by the leads
•
For larger pitches the capacitors shall be mounted in the same way and the body clamped
•
The maximum diameter and length of the capacitors are specified in the dimensions table
•
Eccentricity as shown in the drawing below:
1 mm
Storage Temperature
•
Storage temperature: T
stg
= - 25 °C to + 40 °C with RH maximum 80 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient free air temperature of 23 °C ± 1 °C, an atmospheric pressure
of 86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Document Number: 28162
Revision: 21-Apr-10
For technical questions, contact:
dc-film@vishay.com
www.vishay.com
261
MKP 1839 HQ
Vishay Roederstein
AC and Pulse Metallized Polypropylene Film Capacitors
MKP Axial Type

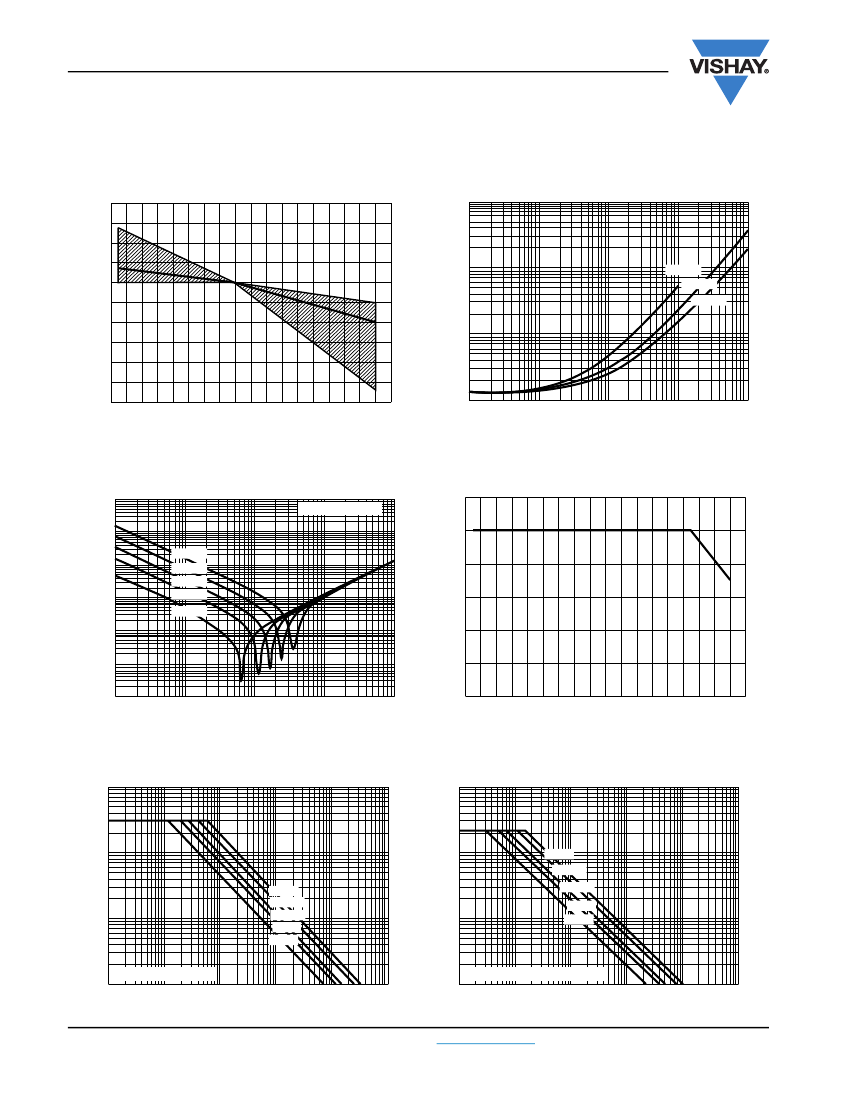

CHARACTERISTICS
Capacitance as a function of ambient temperature (typical curve)
4
ΔC/C
(%)
Dissipation
Factor x 1
-4
Tangent of loss angle as a function of frequency (typical curve)
10
3
2
10
2
0
3.3
µF
1.0
µF
0.1
µF
-2
10
1
-4
-6
- 60
10
0
- 40
- 20
0
20
40
60
80
100
T
amb
(°C)
120
10
2
10
3
10
4
10
5
f (Hz)
10
6
Impedance as a function of frequency (typical curve)
Max. DC and AC voltage as a function of temperature
Impedance
(Ω)
10
3
10
2
0.1
µF
10
1
10
0
0.22
µF
0.47
µF
1.0
µF
3.3
µF
1.2
Factor
Capacitance in
µF
1
0.8
0.6
0.4
10
-1
10
-2
10
-3
10
4
0.2
0
- 60
10
5
10
6
10
7
f (Hz)
10
8
- 20
20
60
100
T
amb
(°C)
Max. RMS Voltage (sinewave) as a function of frequency
Max. RMS Voltage (sinewave) as a function of frequency
10
3
V
RMS
(V)
10
3
V
RMS
(V)
10
2
10
2
0.1
µF
0.22
µF
0.47
µF
10
1
0.1
µF
0.22
µF
0.47
µF
1.0
µF
3.3
µF
T
amb
≤
85
°C, 630
V
DC
10
1
1.0
µF
3.3
µF
85 °C < T
amb
≤
110 °C, 630
V
DC
10
5
10
6
f (Hz)
10
7
10
0
10
0
10
2
10
3
10
4
10
2
10
3
10
4
10
5
10
6
f (Hz)
10
7
www.vishay.com
262
For technical questions, contact:
dc-film@vishay.com
Document Number: 28162
Revision: 21-Apr-10
