52469-1020P datasheet, PDF - EEWORLD Datasheet

52469-1020P: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

52469-1020P Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
Board mount options	SOLDER HOLDING POSTS
body width	0.571 inch
subject depth	0.551 inch
body length	0.202 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FLANGELESS
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	2
Number of ports	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.143 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Shell surface	SILVER
Shell material	COPPER ALLOY
Terminal length	0.075 inch
Terminal pitch	1.3716 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

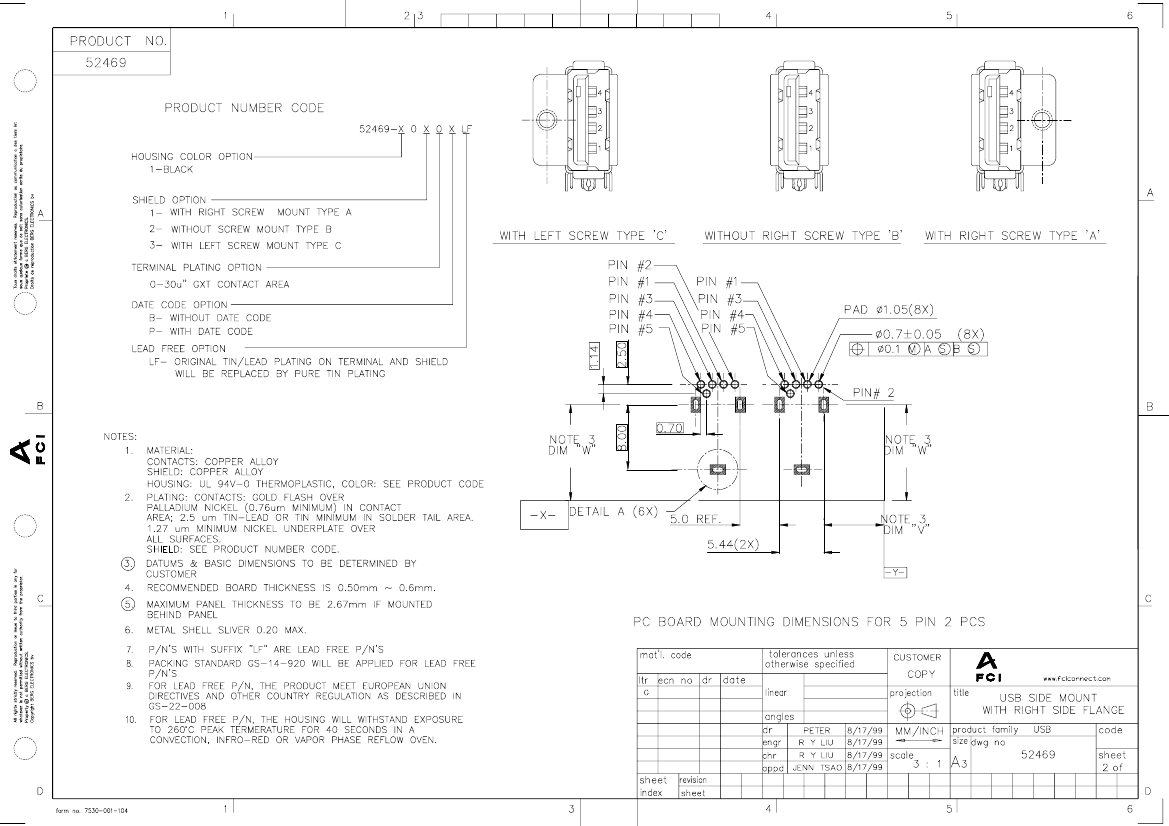

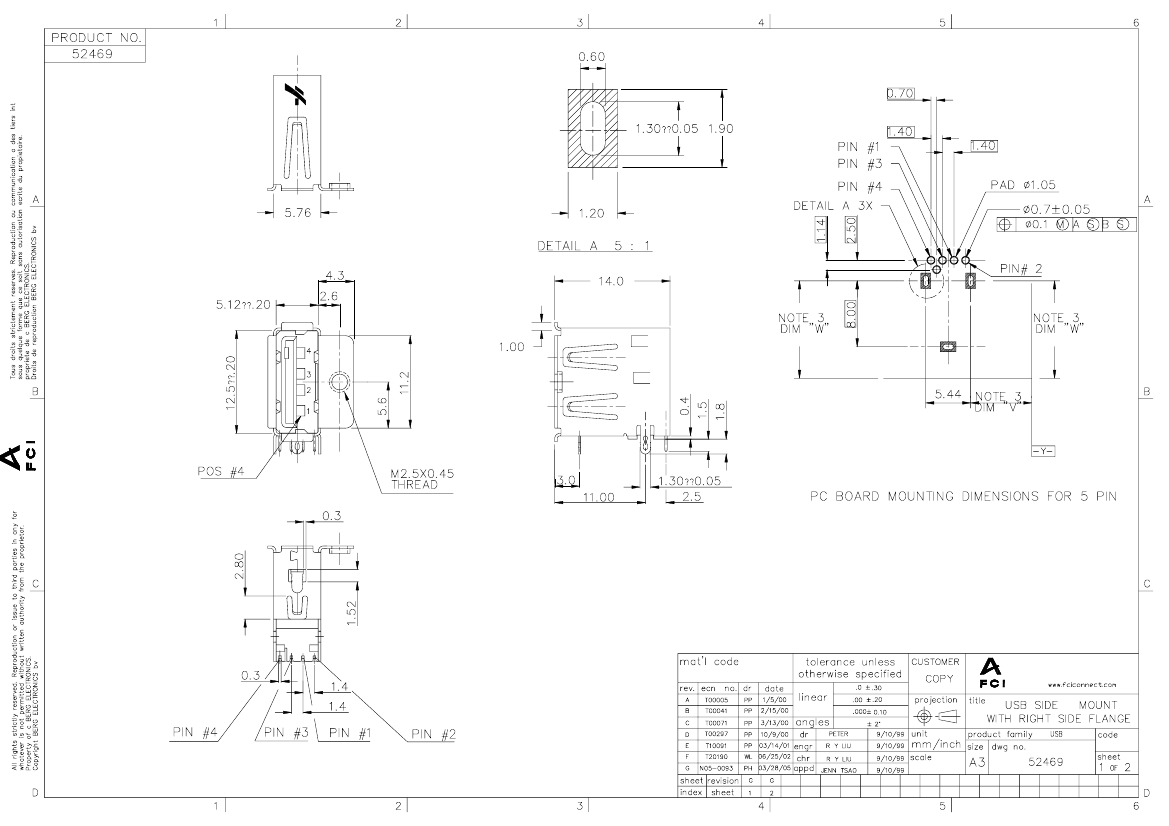

PDM: Rev:G

STATUS:

Released

Printed: Jul 28, 2010
