BMC0805HF-10NK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> BMC0805HF-10NK

BMC0805HF-10NK: Description1 ELEMENT, 0.01uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP; CategoryPassive components inductor; File Size74KB，7 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Related ProductsFound1parts with similar functions to BMC0805HF-10NK

Download Datasheet Parametric View All

BMC0805HF-10NK Overview

1 ELEMENT, 0.01uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP

BMC0805HF-10NK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
Reach Compliance Code	compliant
core material	CERAMIC
DC Resistance	0.3 Ω
Nominal inductance(L)	0.01 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	BMC
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	10
Maximum rated current	0.3 A
self resonant frequency	2100 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

MODEL BMC SERIES

High Frequency

Multilayer

Surface Mount

Ceramic Chip Inductors

FEATURES AND BENEFITS

•

Tight dimensional tolerances and a small package make this chip ideal for high density installation

Monolithic glass ceramic material for high frequency UHF band applications

Compatible with vapor phase and infrared reﬂow soldering

High self-resonant frequency

Industry standard sizes: 0402, 0603, 0805

APPLICATIONS

•

RF and wireless communication

Radar Detectors

PDAs

Keyless remote systems

Video audio equipment

Cellular phones and pagers

1.0nH to 270nH

±10%

-55°C to +125°C

-40°C to +85°C

-40°C to +85°C, 70% R.H., Max.

80°C

260°C for 10 sec.

ELECTRICAL / ENVIRONMENTAL

Inductance Range

Standard Tolerance

Operating Temperature Range

Storage Temperature Range

Humidity Range

Ambient Temperature, Maximum

Resistance to Solder Heat

Speciﬁcations subject to change without notice.

Last Update: 04/24/2003.

6-35

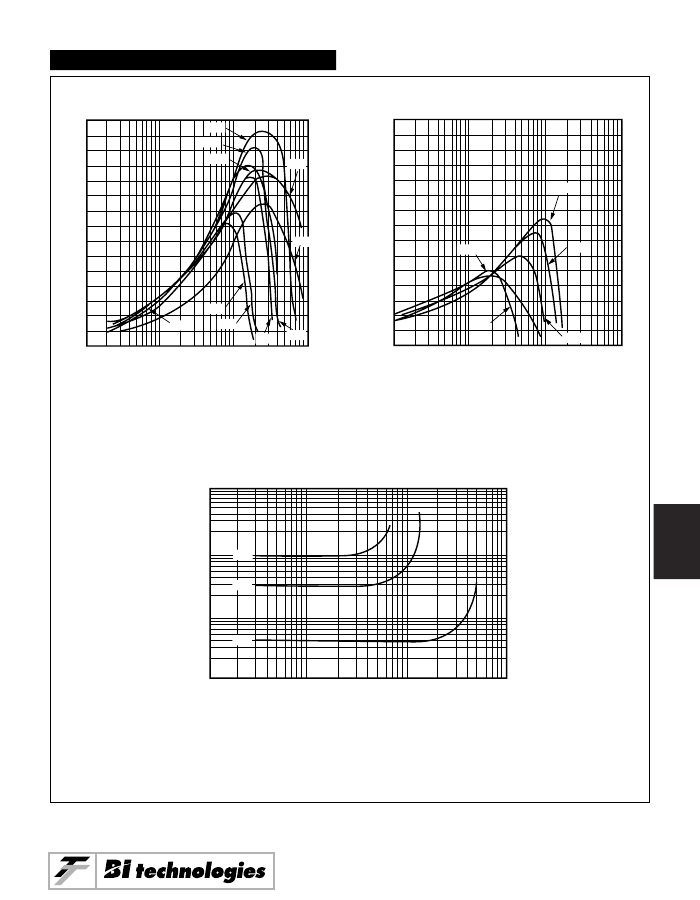

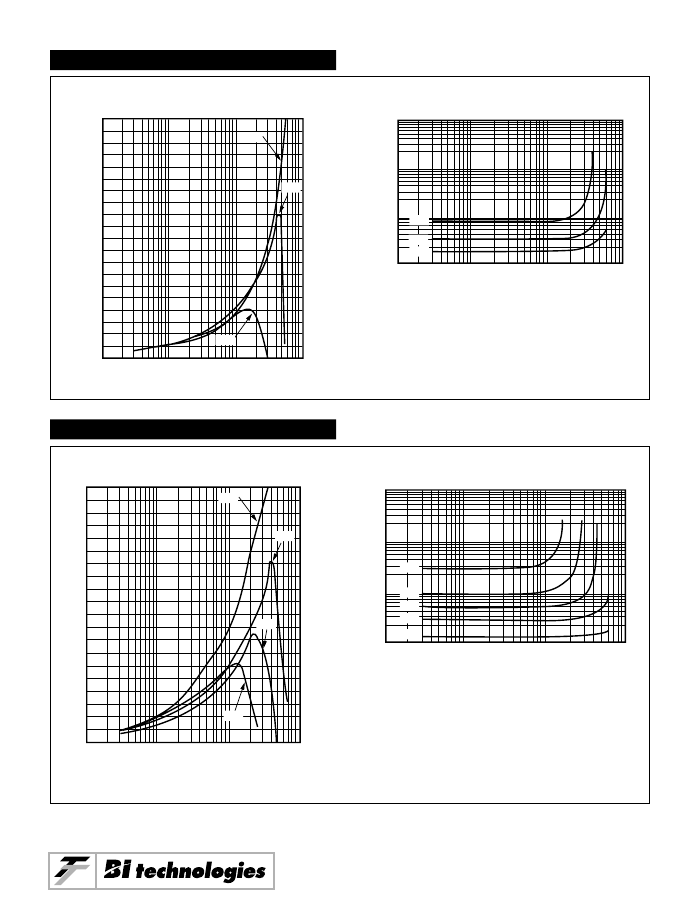

Model BMC Series
