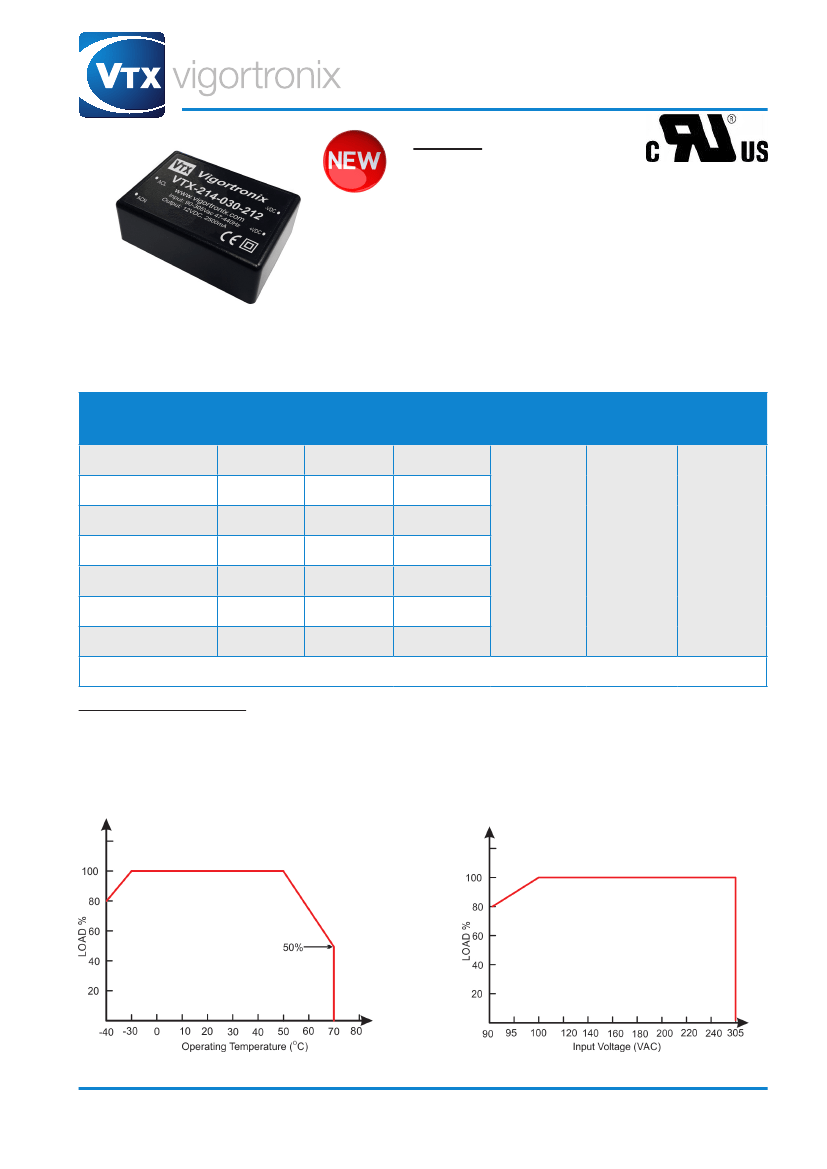

30 Watt AC-DC

Converters

Features:

•

30W Single Output - Regulated

Output Range: 5.1V - 24VDC

Input: 90 - 305VAC , 47 - 440Hz

Low Standby Power <0.1W

Height 21.7mm

Fully Isolated Pri - Sec 4000Vrms

EMC Compliant without external components

Materials: UL94-V0

Safety: UL/IEC/EN62368-1, EN60335-1, CE,

Part Number

Power Rating

Watts

Output

Voltage (Vdc)

Output Current

(mA)

Ambient

Temp. (

O

C)

Efficiency

Typical

Input Range

VTX-214-030-205

VTX-214-030-207

VTX-214-030-209

VTX-214-030-212

VTX-214-030-215

VTX-214-030-224

23

30

5.1

7.5

9

12

15

24

4600

4000

3333

2500

2000

1250

70

>83%

90 - 305VAC

(120-430VDC)

Note: Other output voltages are available upon request.

Maximum Capacitive Load:

•

5V: 6800uF

12V: 1600uF

15V: 1200uF

24V: 470uF

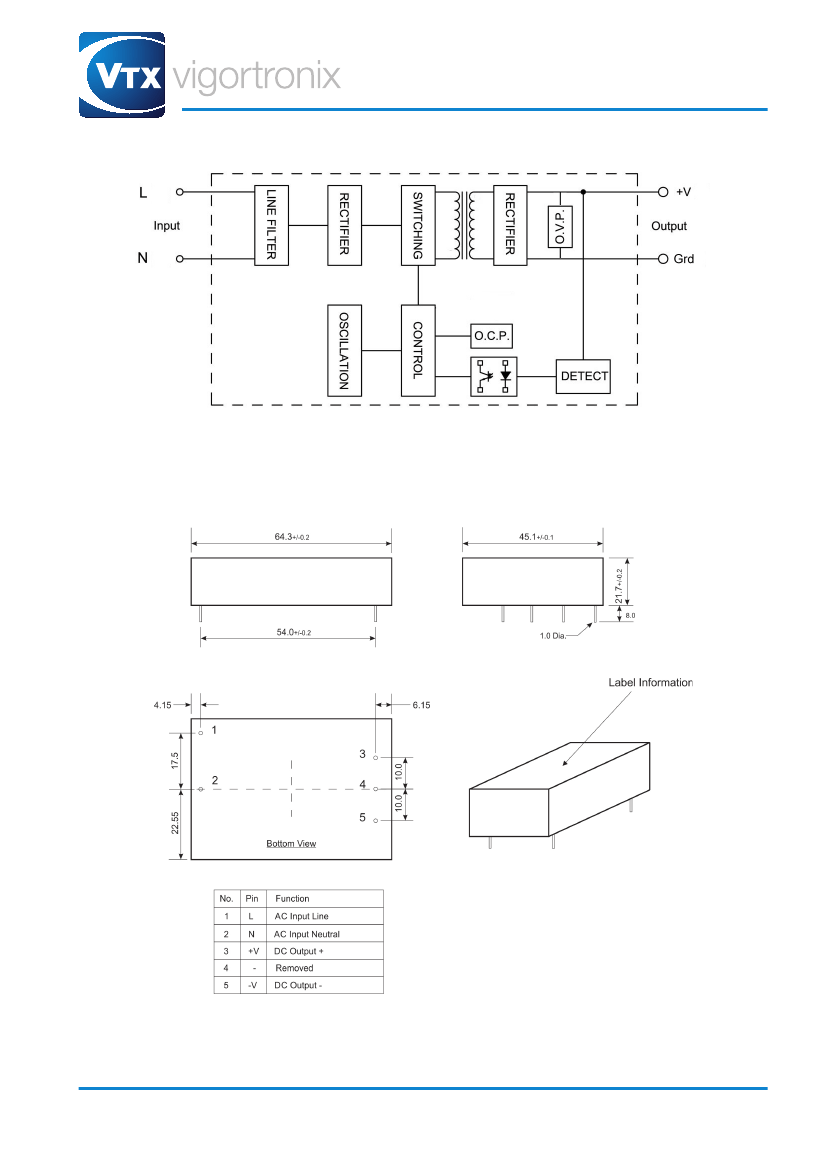

Derating Graphs

Ta: 25

O

C

The information contained in this document is subject to change without notice.

Vigortronix

, 16 De Havilland Way, Witney, Oxfordshire, OX29 0YG, UK

T

el. +44 (0)1993 777570 Fax. +44 (0)1993 777580

Web. www.vigortronix.com E-mail: sales@vigortronix.com

Vigortronix is a trading name of Vigortronix (UK) Limited

Vigortronix.com

D0087 Issue 1

Please contact Vigortronix for any enquiries. Products can be altered to suit custom requirements.
