944-103-53399G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 944-103-53399G

944-103-53399G: DescriptionFiber Optic Connector Adapter, Single Mode,; CategoryThe connector The connector; File Size574KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

944-103-53399G Overview

Fiber Optic Connector Adapter, Single Mode,

944-103-53399G Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connection Type	FC
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Contact style	OPTICAL FIBER
Coupling type	THREADED
Durability	500 Cycles
Insertion loss	0.15 dB
Manufacturer's serial number	944
model	SINGLE
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of connectors	ONE
reliability	COMMERCIAL
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

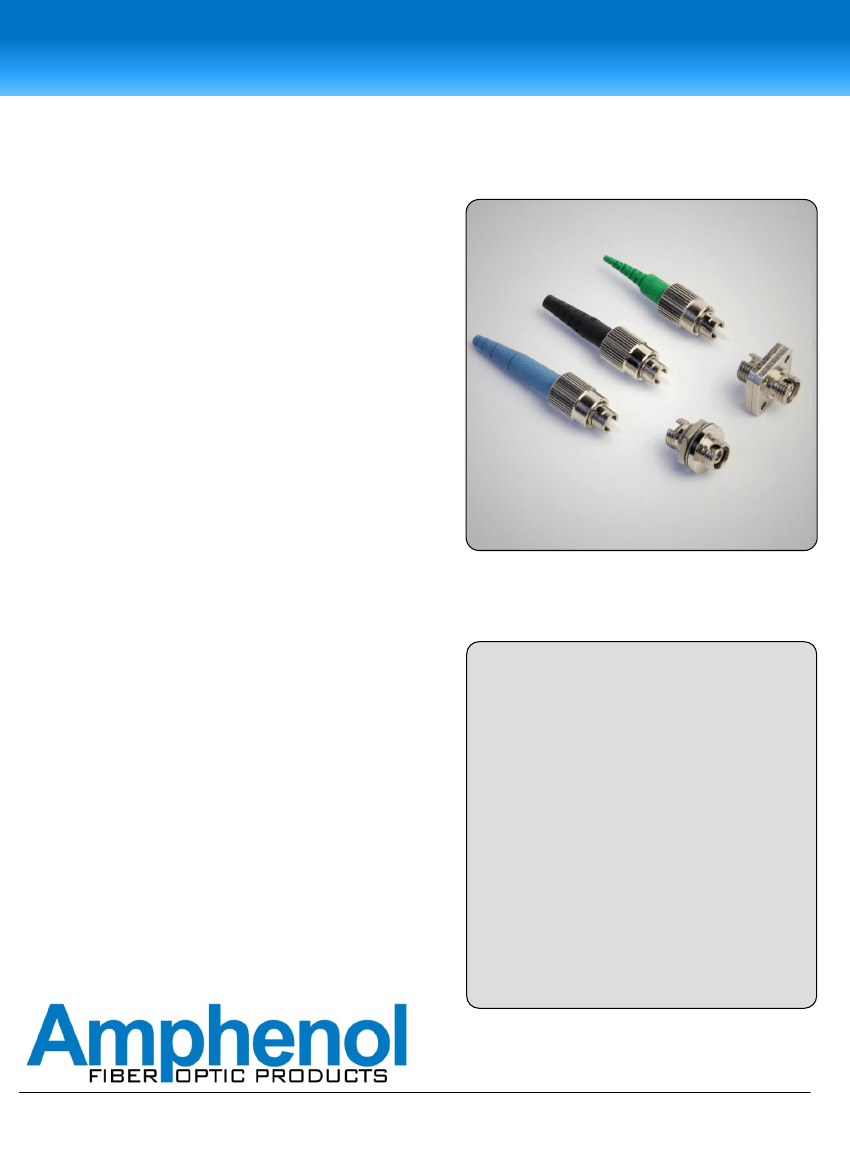

944 Series FC Connectors

Amphenol’s 944 Series fiber optic FC connectors

effectively terminate optical fiber in a variety of

network applications. The connectors are secured

using a threaded coupling nut, providing a

significant increase in pull-out performance. The FC

connectors also feature an internal cavity and epoxy

injection tube that virtually eliminates the

possibility of improper epoxy application, thus

providing higher manufacturing yields.

Every aspect of the connector system is precision

manufactured to produce reliable and consistent

performance. The 944 series is available in

tunable or non-tunable PC versions for flexibility

in specific performance requirements. The FC/APC

connector system features a tight-fit keyway that

prohibits the possible mis-mating between FC/PC

and FC/APC connectors.

Features/Benefits

•

One-piece construction

Non-optical disconnect feature design prevents

signal interruption

Teflon tube in rear of connector ensures clean

epoxy injection

High precision zirconia ferrules minimize insertion

loss and return loss values

Available in singlemode, angled singlemode, and

multimode versions

Available with 900µm, 2.0mm, or 3.0mm boots

Tunable version available

Stainless steel ferrules also available

Compliant to IEC 61874-7 and TIA/EIA 604-4

specifications

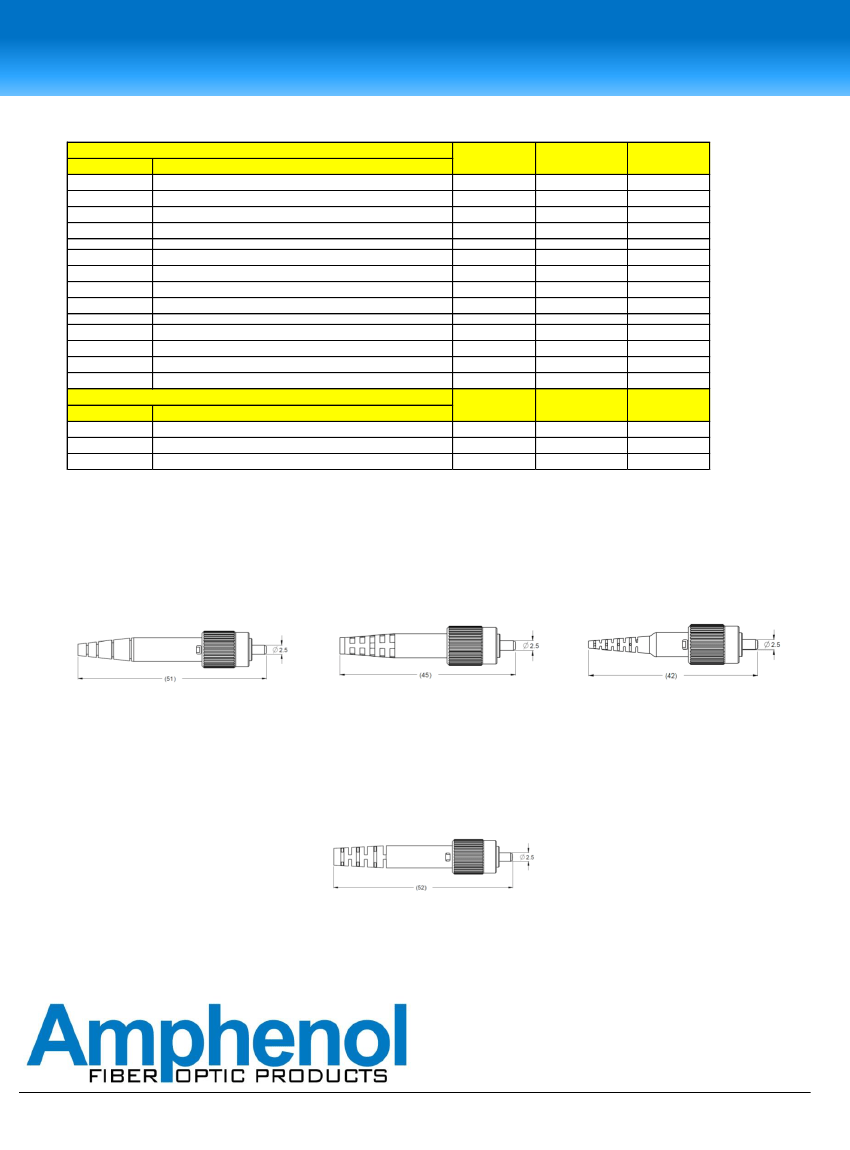

Specifications

Insertion Loss:

≤ 0.15dB typical, singlemode

≤ 0.30dB typical, APC

≤ 0.35dB typical, multimode

≤ -55dB*

≤ -65dB*

Return Loss:

Ultra (UPC)

Angle (APC)

Durability:

< 0.2dB change, 500mating cycles

•

Temperature:

<0.3dB change, -40 to +85°C

Intermateability:

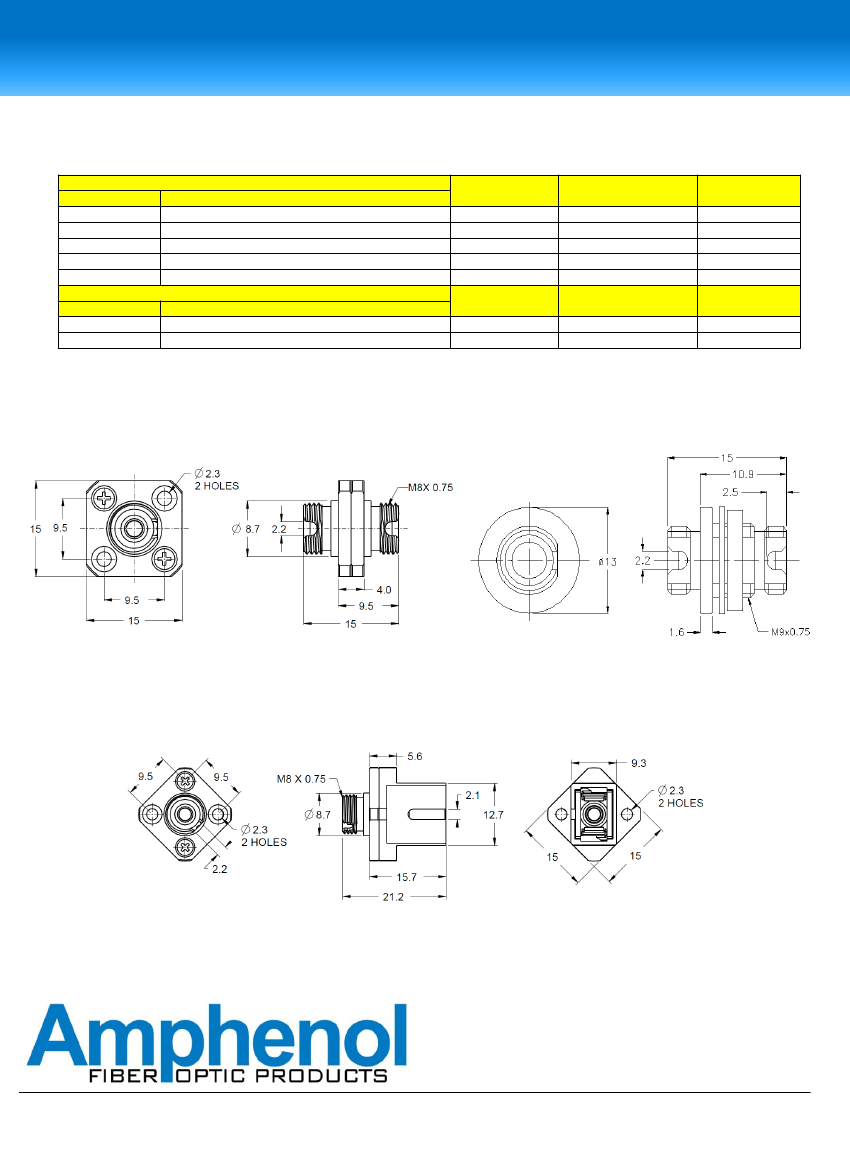

The Amphenol 944 Series FC Connectors are

mechanically and optically intermateable with NTT-

FC type products and conform to TIA/EIA and IEC

specifications.

*Performance is polish dependent

www.amphenol-fiberoptics.com

sales@amphenol-fiberoptics.com

Customer Service 800-944-6446
