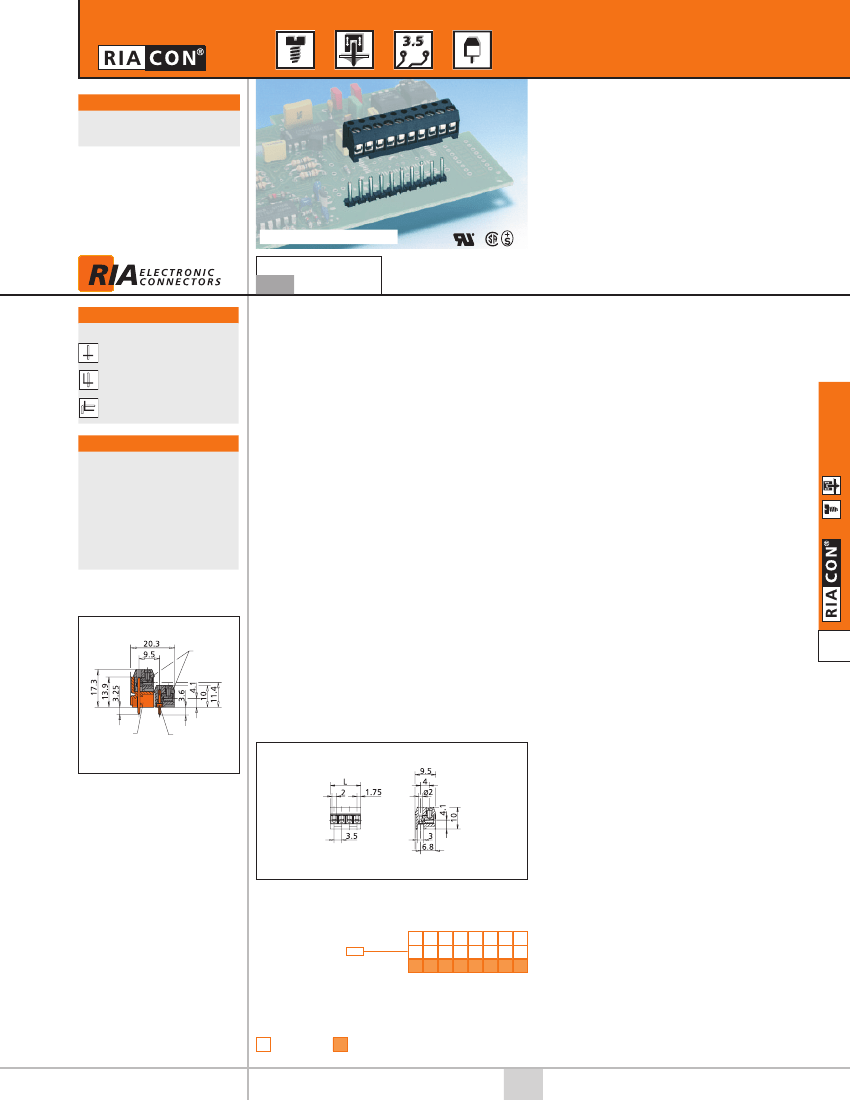

Preview

31166118: DescriptionBoard Connector,; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

31166118 Overview

Board Connector,

31166118 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

mm to inch

1 inch = 25.4 mm

1 mm = .040 inches

Designed to IEC 60664-1

Type

166

Headers that mate with

Type 166

Type 224

Type 226

Type 225

Page H-7

Page H-9

stamped female

contact with

wire protector

Electrical Data

Voltage

Current

Wire range

Screw torque

Wire strip length

Contact resistance

125 V

8A

16 - 26 AWG

3 lbs. - in

5 mm

≤

12 mΩ per circuit

Accessories

for

Type 166

Coding pin 720159-01

Coding pin 720159-02

Page J-7

Mounting Flange

t= 1,0 mm 720158-01-0

t= 1,5 mm 720158-02-2

Page J-5

Mechanical Data

Housing

UL 94V-0

-40 °F to 189 °F

(-40 °C to 105 °C)

black

brass, nickel plated

German silver

optional: gold plating

- consult factory

M2, steel

nickel over copper plating

optional: brass, nickel plated

- consult factory

2 to 24

Color

Terminal

Integrated wire

protector

Screw

Two-tier solution

Type 224 and Type 226

terminal blocks

Type 166

Additional material data - pages DA-3 to DA-5

header

Type 226

header

Type 224

Dimensions (mm)

L = (circuits - 1) x centerline + 3.5

Part Numbers

Type 166

Complete the part number

by adding the pole size.

centerline 3.5 mm

Part No.

311661

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

01 standard

08 Available on demand. Minimum order

quantity 3000 poles per item.

RIA electronic, Inc.

430 Industrial Way West, Eatontown, NJ 07724

phone 1-888-722-5625

•

fax 732-389-9066

•

www.riaelectronic.com

DB-1

Subject to technical changes and printing errors.

D

Pole sizes
