A50-150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> A50-150

A50-150: DescriptionAnalog Circuit,; CategoryAnalog mixed-signal IC The signal circuit; File Size82KB，3 Pages; ManufacturerAmerican Power Design Inc.

Download Datasheet Parametric Compare View All

A50-150 Overview

Analog Circuit,

A50-150 Parametric

Parameter Name	Attribute value
Maker	American Power Design Inc.
Reach Compliance Code	compliant
Base Number Matches	1

Preview

Download Datasheet

View All

American Power Design, Inc.

"The best high voltage design solution"

A50 SERIES 50 WATT HIGH VOLTAGE DC/DC CONVERTERS

FEATURES

* Customer Selects Output Voltage

Outputs from 48Vdc to 200 Vdc

Low Profile

High Regulation

High Power Density

1000 Vdc Output Isolation

Continuous Short Circuit Protection

Economical

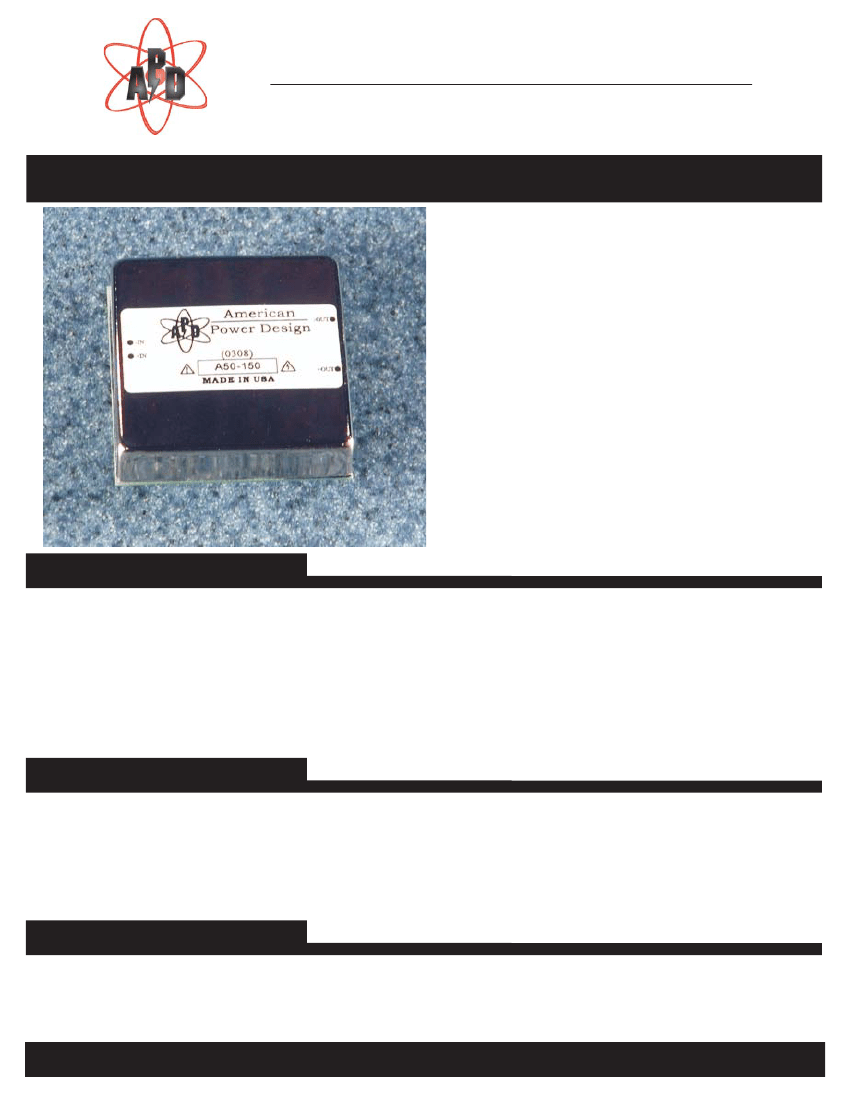

The A50 Series low profile high voltage DC/DC

converter offers a highly regulated high voltage isolated

output in a six-sided copper case. Their small size,

high power density, and excellent regulation make them

ideally suited for applications that demand a high

degree of performance. All models will tolerate a short

circuit indefinitely.

ELECTRICAL SPECIFICATIONS

Voltage Accuracy ...........................................................+/-1%

Line Regulation ........................................................... +/- 0.3%

Load Regulation .......................................................... +/- 0.5%

Output Ripple ..........................................................< 0.5% P-P

* 18-36Vdc Input add suffix /A

* 36-72Vdc Input add suffix /C

Input Filter ................................................. Low ESR Capacitor

Efficiency ............................................................... 87% (typ.)

Short Circuit Protection ........................................ Continuous

Switching Frequency ................................................. 120 kHz

Isolation .................................................................. 1000 Vdc

GENERAL SPECIFICATIONS

Temp. Stability ................................................... +/-0.02%/°C

Temp. (Operating , Case) ................................... -25 to +70°C

Temp. (Storage) ............................................... -40 to +125°C

EMI/RFI...........................................................Six Sided Shield

Derating ......................................................................... None

Cooling ................................................... Free-Air Convection

* All models designed to meet UL 60950

* For RoHS Compliant part, add suffix /Y

PHYSICAL SPECIFICATIONS

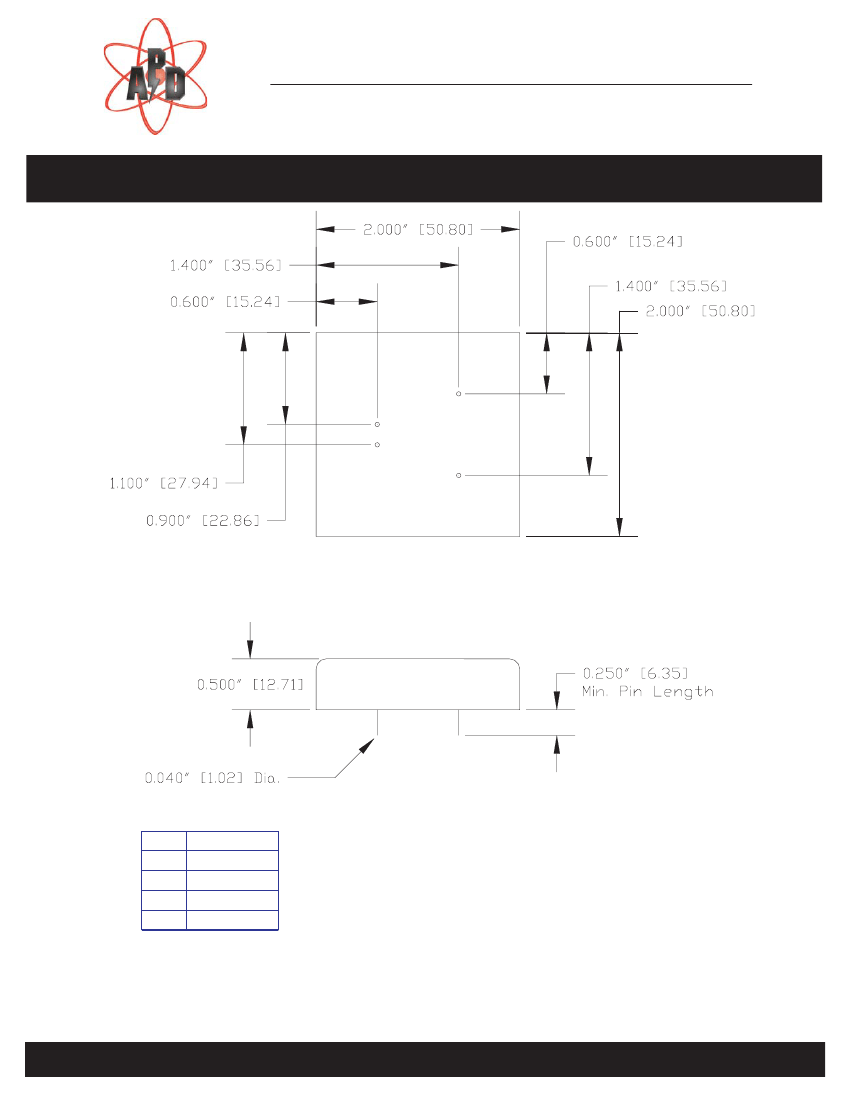

Dimensions ................................................. 2 x 2 x 0.50 inches

Weight ......................................................................... 2.8 Oz

Case Material .......................................... Nickel Plated Copper

(With Non-Conductive Base Plate)

Tel (888) 894-4446

WWW.APOWERDESIGN.COM

Fax (603) 898-6534
