RP
RP428 Series
RP428
3PHASE WYE TO 600A
ROHS COMPLIANT
RADIUS POWER
Your Power Partner
480V, 3-Phase WYE Dual Stage Power Line Filter
SPECIFICATIONS
Operating Freq.
Usable Freq.
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
:
:
:
:
:
:
:
50/60Hz
DC - 400Hz
480V +10%
-25 to 60C
25/100/21
3500VDC
S: 8/16/25/36A (M5)
64/80A (M6)
120/160/200A (M10)
B: 300/400A (6x25)
600A (8x25)
cURus, EN60939
LEAKAGE CURRENT
Y-cap, nF
0
10
100
1000
2000
mA,
480V/60Hz
0
0.1
1
10
20
Safety Approvals
:
PART NUMBER/ ORDERING
RP428
-X
(Amps)
8
16
25
36
64
80
120
160
200
300
400
600
B
-Y
(Ycap, nF)
0
10
100
1000
2000
S
-T
Weight
LBS (KG)
Typ.
4.2 (1.9)
4.5 (2.0)
6.0 (2.7)
8.0 (3.6)
8.0 (3.6)
21.0 (9.5)
21.0 (9.5)
27.0 (12.5)
27.0 (12.5)
75.0 (34.0)
75.0 (34.0)
80.0 (36.2)
www.radiuspower.com
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com

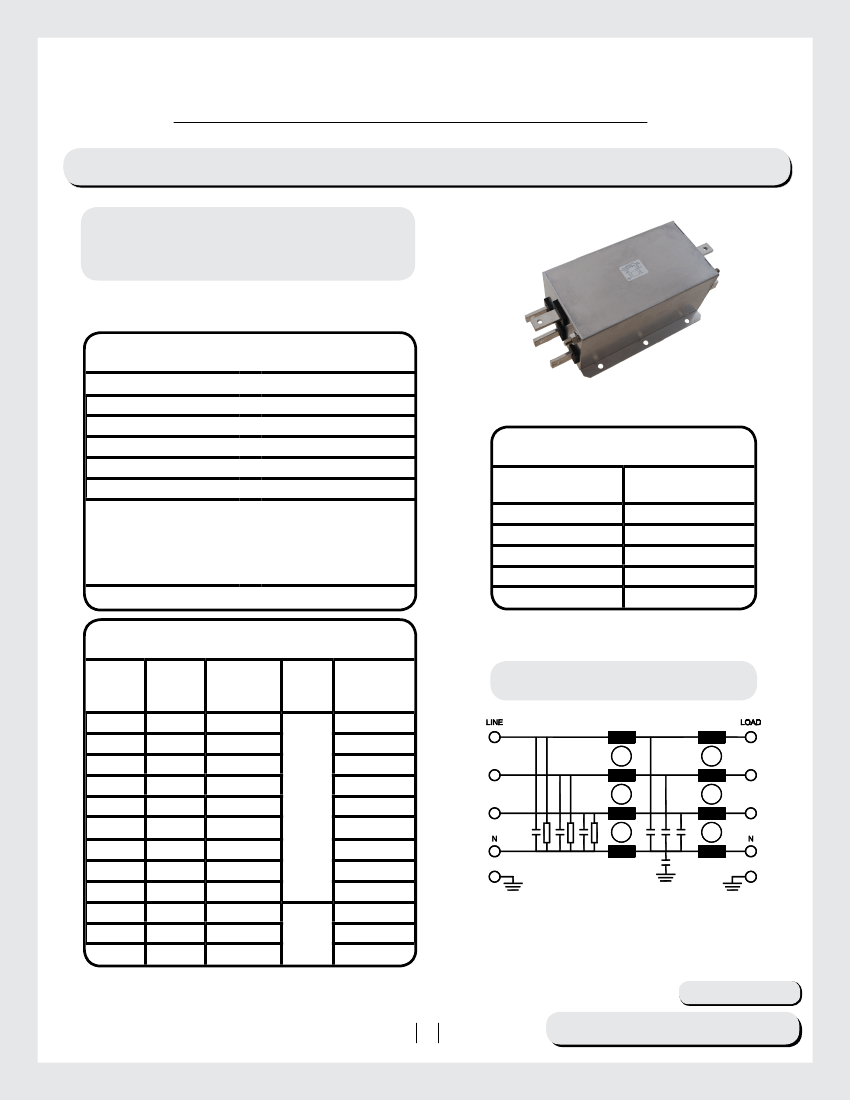

SCHEMATIC
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP428-80-10-S (80 Amps with 10nF Ycap)
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
112
RP
RP428
Typical Insertion Loss, dB (50/50ohm)
8/16 Amp
RADIUS POWER
Your Power Partner

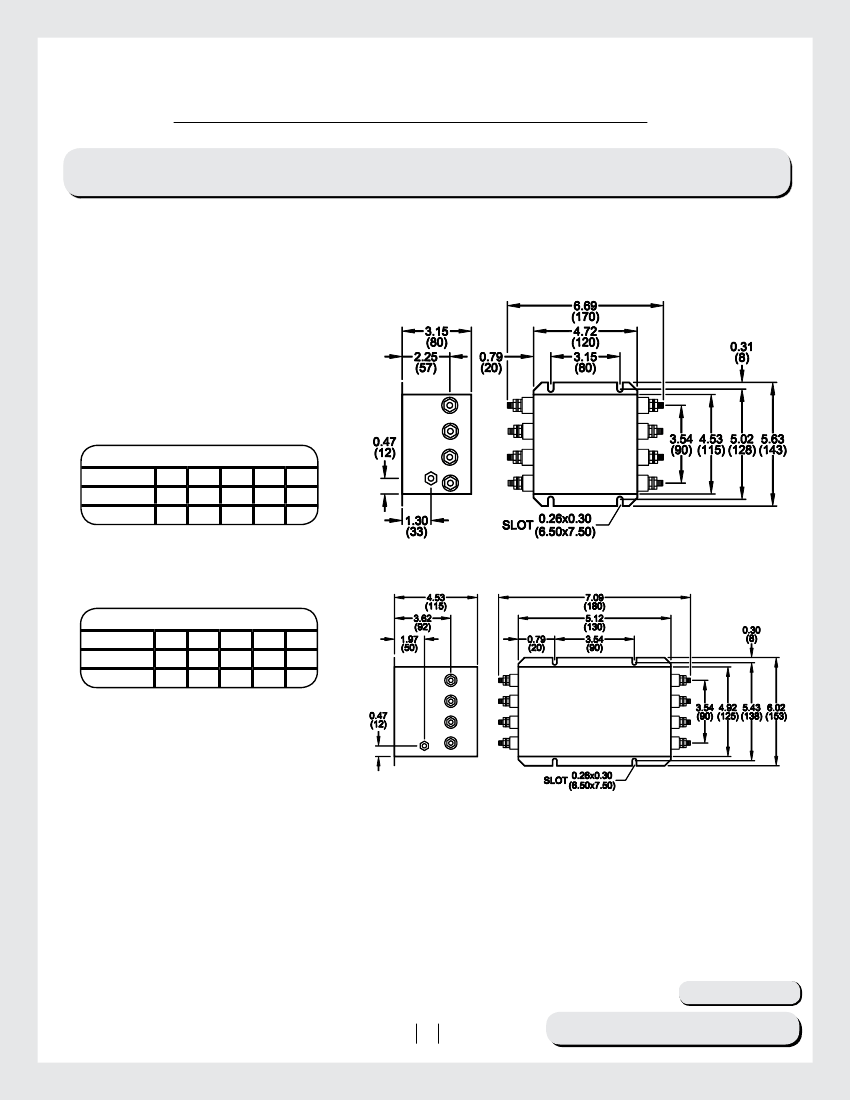

Mechanical Dimensions
8/16 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
65
52
.5
75
65
1
75
60
10
45
55
30
30
50
25/36 Amp
25/36 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
65
60
.5
75
70
1
70
65
10
42
58
30
30
50
TYPICAL TOLERANCE: +/-0.02 (0.50)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
113
RP
RP428
Typical Insertion Loss, dB (50/50ohm)
64 Amp
RADIUS POWER
Your Power Partner

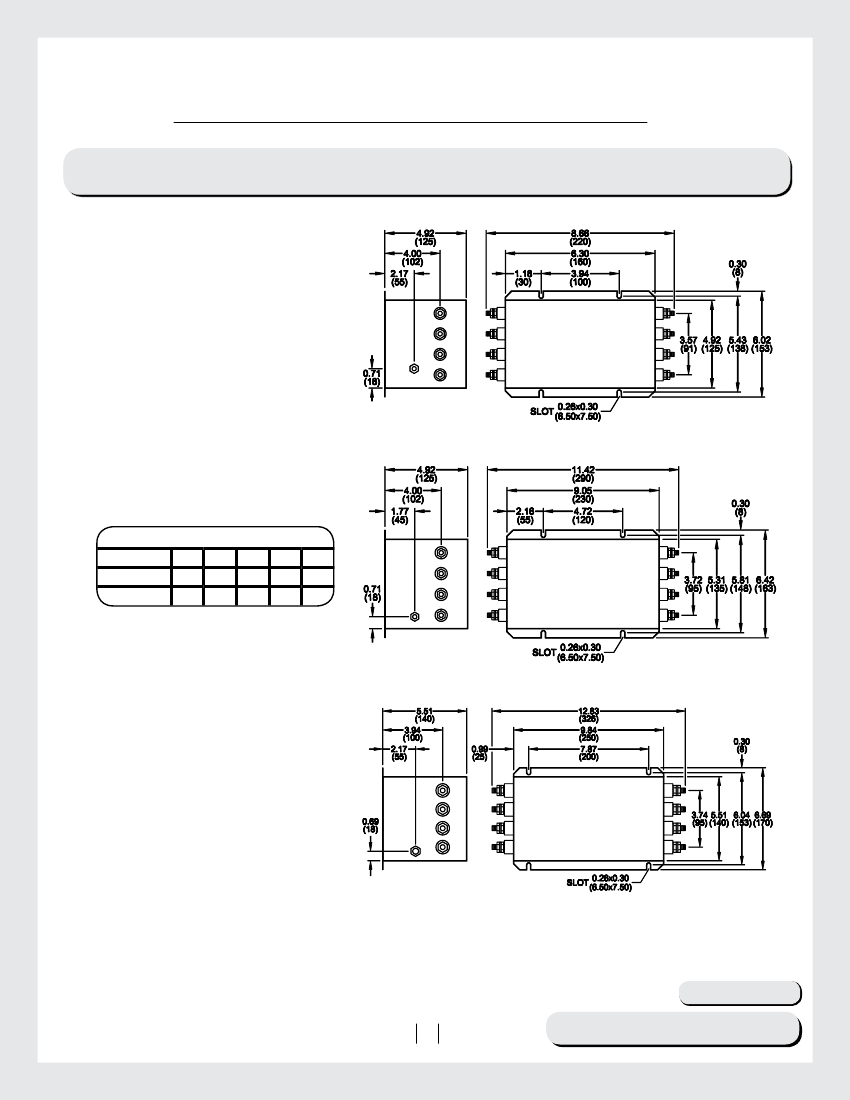

Mechanical Dimensions
80 Amp
64/80/120 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
55
65
.5
64
75
1
60
60
10
45
50
30
25
42
120 Amp
TYPICAL TOLERANCE: +/-0.02 (0.50)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
114
RP
RP428
Typical Insertion Loss, dB (50/50ohm)
160/200 Amp
RADIUS POWER
Your Power Partner

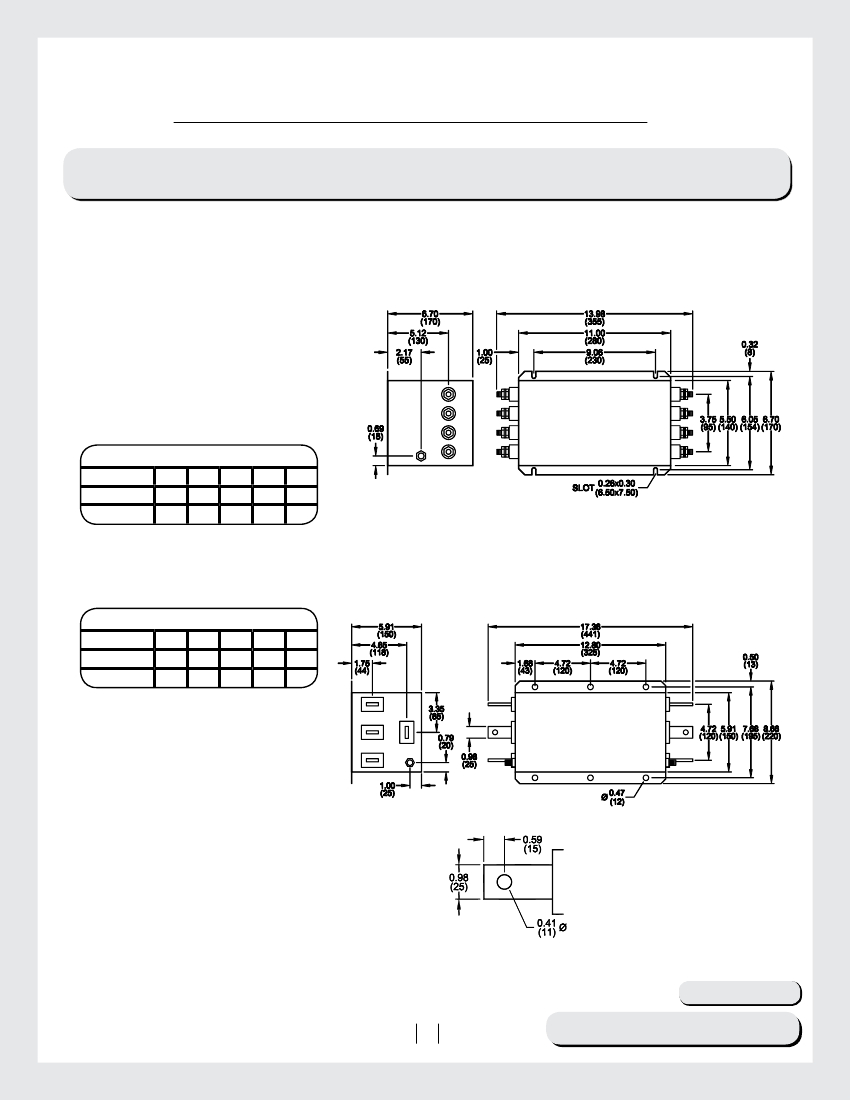

Mechanical Dimensions
160/200 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
60
65
.5
65
55
1
55
60
10
35
30
30
20
30
300/400/600 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
65
60
.5
62
42
1
60
40
10
30
25
30
20
20
300/400/600 Amp
BUSBAR DETAIL
300/400 Amp - 6mm THICK
600 Amp - 8mm THICK
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
115
