Hebei I.T. (Shanghai) Co., Ltd
.
Part No.
EMITTER
LED SPECIFICATION
E12PW6C
Features
z
Highest Flux White
z
High reliability and Very long operating life
(up to 100K hours)
z
Low voltage DC operated
z
More Energy Efficient than Incandescent
and most Halogen lamps
z
NO UV
z
Superior ESD protection
(4) Lens
Cathode
(3) Body
Typical Applications
z
Reading lights(car,bus,aircraft)
z
Portable(flashlight,bicycle)
z
Automotive Exterior(Stop-Tail-Turn,
CHMSL,Mirror Side Repeat)
z
Decorative
NOTE:
(1) Lead
(2) Slug
z
z
All dimensions are millimetres.
Tolerance is
f0.1mm
unless otherivise noted

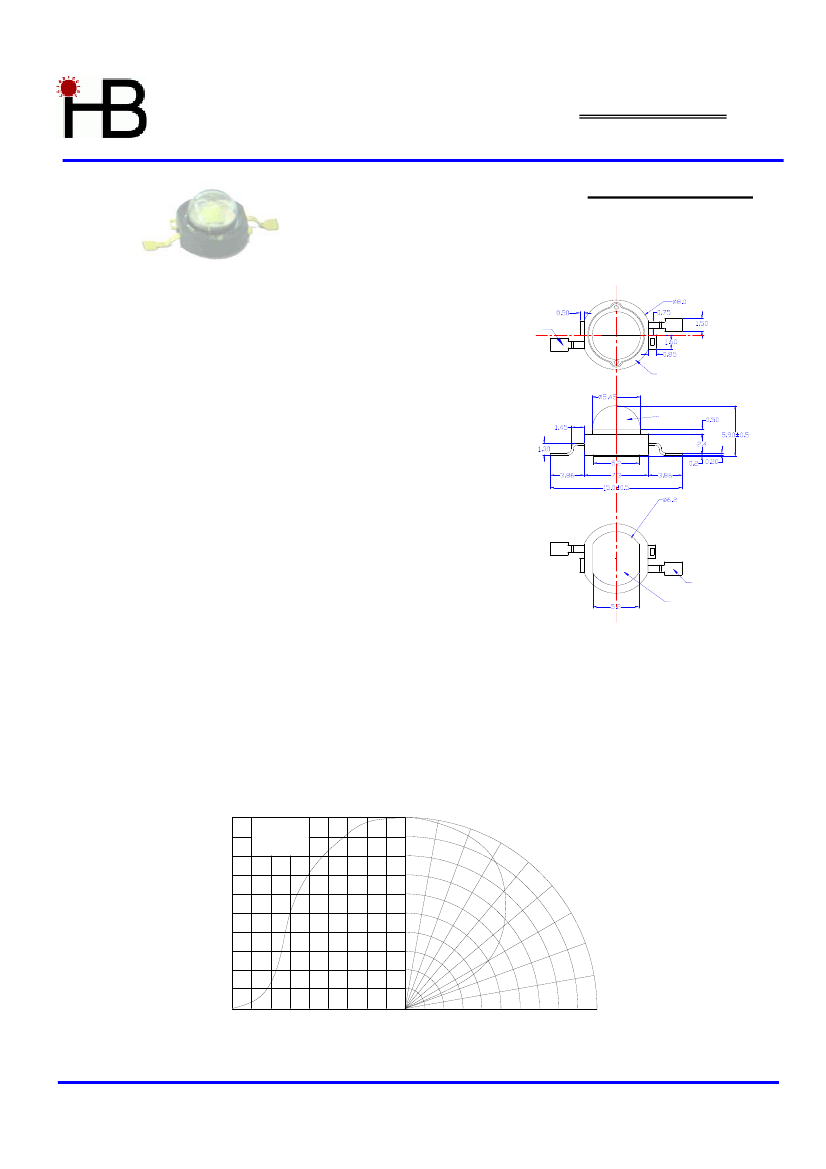

DIRECTIVITY
1.0
0°
Ta=25° C
IF=20mA
30°
Relative Luminous
0.5
60°
0
90°
60°
30°
0°
0.5
90°
1.0
Radiation Angle
Page: 1
Hebei I.T. (Shanghai) Co., Ltd
.
EMITTER
LED SPECIFICATION
Part No.
Absolute maximum ratings
Parameter
DC Forward Current
Peak Pulse Current
Power Dissipation
LED Junction Temperature
E12PW6C
Ta = 25
Value
Test
Condition
Min.
Max.
----
----
----
Unit
350
mA
500
mA
1.4
W
120
-25
+100
-40
+120
8000
---
V
260
for 5 Seconds max
Symbol
I
F
Ipeak
Pd
Tj
Topr
Tstr
---
---
Operating Temperature
Storage Temperature
ESD Sensitivity
Soldering Temperature
----
Duty=0.1mS 1kHz
----
----
----
----
HBM
-----
Electrical and optical characteristics
Parameter
Forward Voltage
Luminous Flux
Viewing Angle
Color Temperature
Chromaticity Coordinates
Symbol
V
F
v
2©
1/2
CCT
X,Y
Test
Ta = 25
Value
Condition
Min.
Typ.
3.5
120
----
WC
Max.
4.0
90
----
8000
V
lm
Deg.
K
--
----
50
----
6500
Unit
I
F
= 350mA
I
F
= 350mA
I
F
= 350mA
I
F
= 350mA
I
F
= 350mA
Luminous Flux
Bins
Bin
Min
Max
H
30
40
Ta = 25
I
40
50
J
50
60
K
60
80
L
Unit:lm
80
100
M
100
120
Dominant Wavelength-¬
d
Bin
Min
Max
B
8000K
10000K
Ta = 25
D
5000K
6500K
E
3500K
5000K
Unit:
nm
C
6500K
8000K
Page: 2
Hebei I.T. (Shanghai) Co., Ltd
.
EMITTER
LED SPECIFICATION
Part No.
Chromaticity Coordinates Ranks
(IF=20mA
X
WA
Y
X
WB
Y
0.240
0.295
0.335
0.280
0.210
0.270
0.248
0.265
0.295
0.300
0.240
0.300
WD
Y 0.310
0.360
0.240
0.235
0.265
0.270
WC
Y
X
0.280
0.330
0.335
0.330
E12PW6C
Ta=25
X
)
0.300
0.330
0.360
0.360
0.385
0.330
0.310
0.360
0.345
0.300

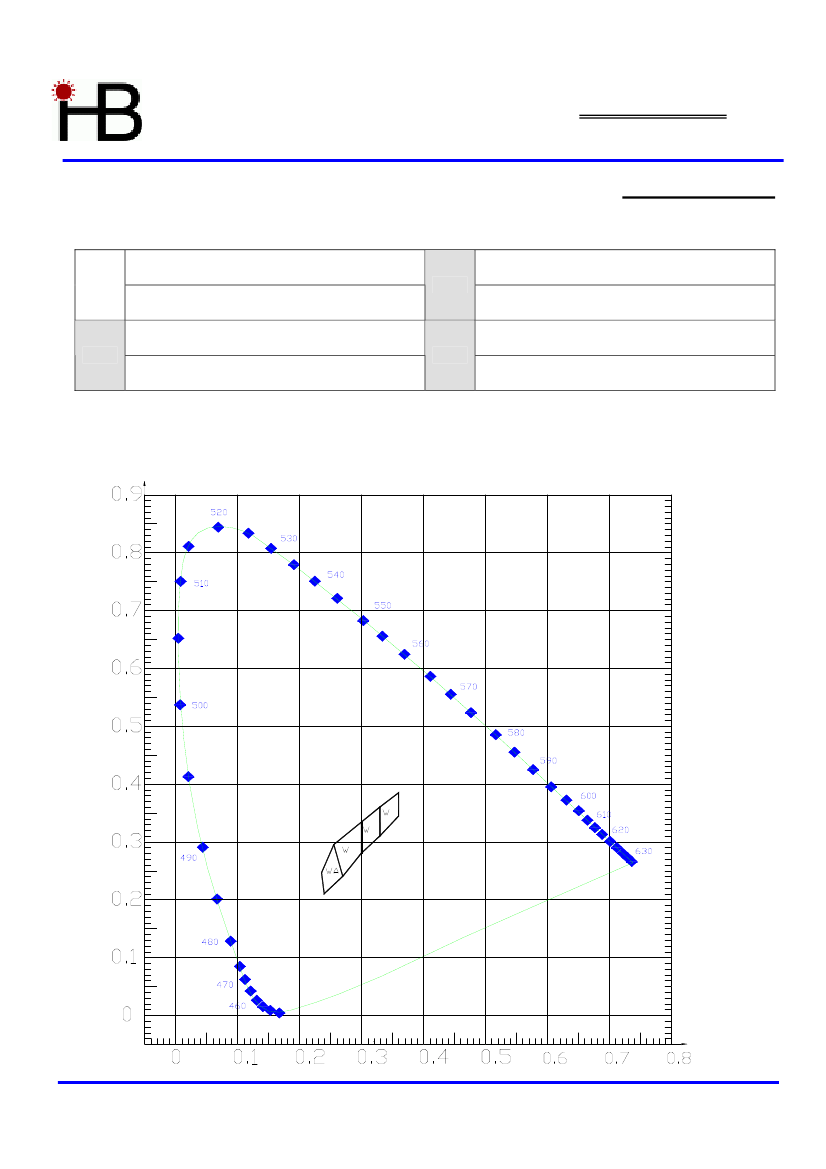

CIE 1931 Chromaticity diagram
IF=20mA
Y
Ta=25° C
'
&
%
x
Hebei I.T. (Shanghai) Co., Ltd
.
EMITTER
LED SPECIFICATION
No. E12PW6C
Typical electrical/optical characteristic curves
FORWARD CURRENT Vs
FORWARD VOLTAGE
2.5
Relative Light Output(%)
2.0
1.5
1.0
0.5
0
0
100 200 300 400
IF-Forward Current (mA)
500
500
Forward Current(mA)
400
300
200
100
0
2.4
LUMINOUS FLUX Vs.
FORWARD CURRENT
4.0
2.8 3.2 3.6
Forward Voltage(V)
4.4
500
Forward Current(mA)
400
300
200
100
0
FORWARD CURRENT
DERATING CURVE
Relative Light Output(%)
/80,1286 )/8;
Vs.
AMBIENT TEMPERATURE
2.5
2.0
1.5
1.0
0.5
0
-40
-20
40
0
20
60
80
Ambient Temperature T
A
( )
100
20
40
60
80
)
100
Ambient Temperature T
A
(
5HODWLYH /XPLQRXV ,QWHQVLW\
7D
:DYHOHQJWK
Page: 4
