31-8357-3: DescriptionRF TNC Connector, Male, Cable Mount, Plug; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-8357-3 Overview

RF TNC Connector, Male, Cable Mount, Plug

31-8357-3 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RF TNC CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	TNC
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Triax

TNC Threaded, 7/16-28

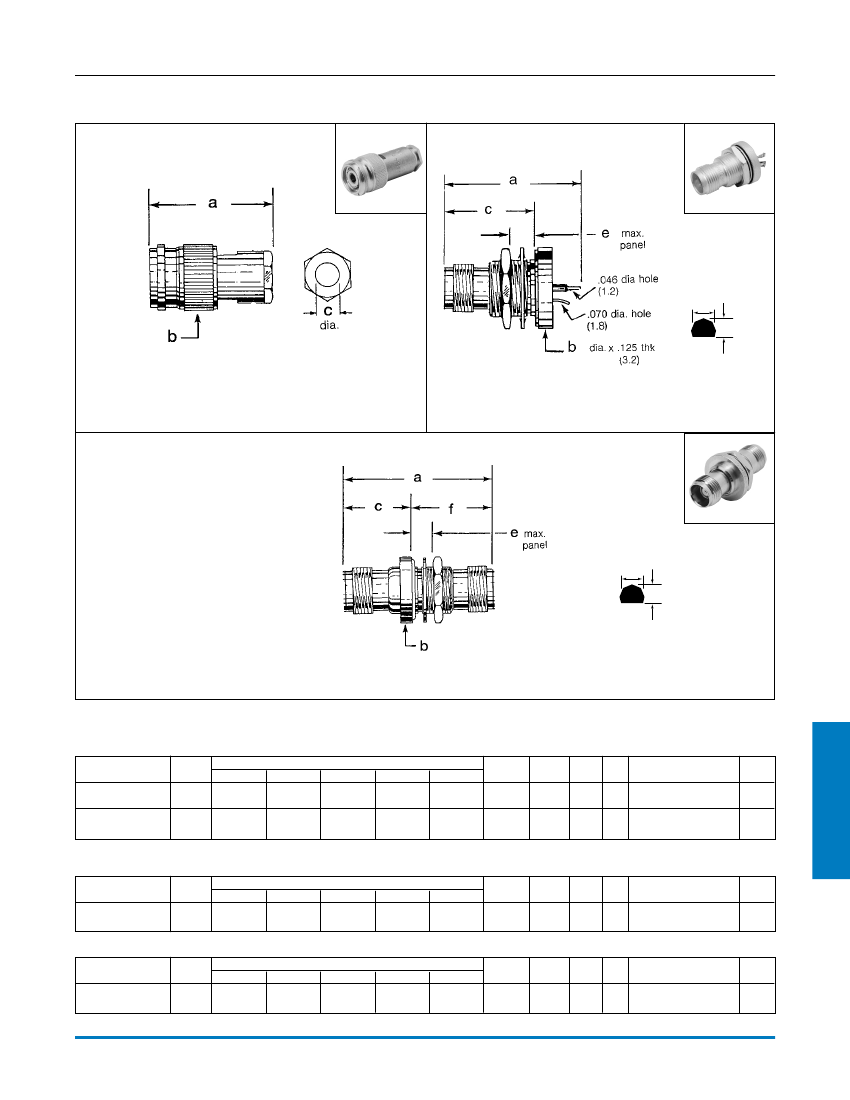

Fig. 1

Fig. 2

Amphenol

®

T

.505(12.8) dia.

.473(12.9)

Plug

31-8357-3

31-8357-6

Fig. 3

Bulkhead Jack Receptacle

31-8359-1

T

.505(12.8) dia.

.473(12.9)

Bulkhead Adapter Jack to Jack

31-8356-2

Triax

PLUGS - MALE CONTACTS

Triax

Cable

Raychem

9530-D-5117

Times

TBF-58

Config.

Plug

a

b

Dims. Inches (mm)

c

e

.177 (4.5)

.257 (6.5)

—

f

—

MTG

Hole

—

CAI

C13

PLT

P15

P33

Ins.

D1

Amphenol

Number

31-8357-3

31-8357-6

Fig

1

1.43 (36.3) .625 (15.9)

RECEPTACLES - FEMALE CONTACTS

Description

Bulkhead

Jack Receptacle

Config.

Recep.

a

b

Dims. Inches (mm)

c

e

.825 (21.0)

.250 (6.4)

f

—

MTG

Hole

T

CAI

—

PLT

P33

Ins.

D1

Amphenol

Number

31-8359-1

Fig

2

1.20 (30.5) .690 (17.5)

ADAPTER

Description

Bulkhead

Jack to Jack

q

Config.

a

Dims. Inches (mm)

b

c

e

.638 (16.2)

.187 (4.7)

f

.737 (1.87)

MTG

Hole

T

CAI

—

PLT

—

Ins.

—

Amphenol

Number

31-8356-2

Fig

3

Adapter 1.37 (34.8) .730 (18.5)

accommodates cable diameter

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

183

31-8357-3 Related Products

	31-8357-3	31-8357-6	31-8359-1
Description	RF TNC Connector, Male, Cable Mount, Plug	RF TNC Connector, Male, Cable Mount, Plug	RF TNC Connector, Female, Panel Mount, Cable Mount, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR	RF TNC CONNECTOR
Contact point gender	MALE	MALE	FEMALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO
Manufacturer's serial number	TNC	TNC	TNC
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	0.5 GHz	0.5 GHz	0.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	YES
Base Number Matches	1	1	1
