STL950/4F-5.0-V-P2.6-BK-HC-HT

Description
Strip Terminal Block,
CategoryThe connector    terminals
File Size1MB,1 Pages
ManufacturerPTR Messtechnik GmbH & Co. KG
Download Datasheet Parametric Compare View All

STL950/4F-5.0-V-P2.6-BK-HC-HT Overview

Strip Terminal Block,

STL950/4F-5.0-V-P2.6-BK-HC-HT Parametric

Parameter NameAttribute value
MakerPTR Messtechnik GmbH & Co. KG
Reach Compliance Codecompliant
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Base Number Matches1
Pin Strip |
Spacing 5.0 mm

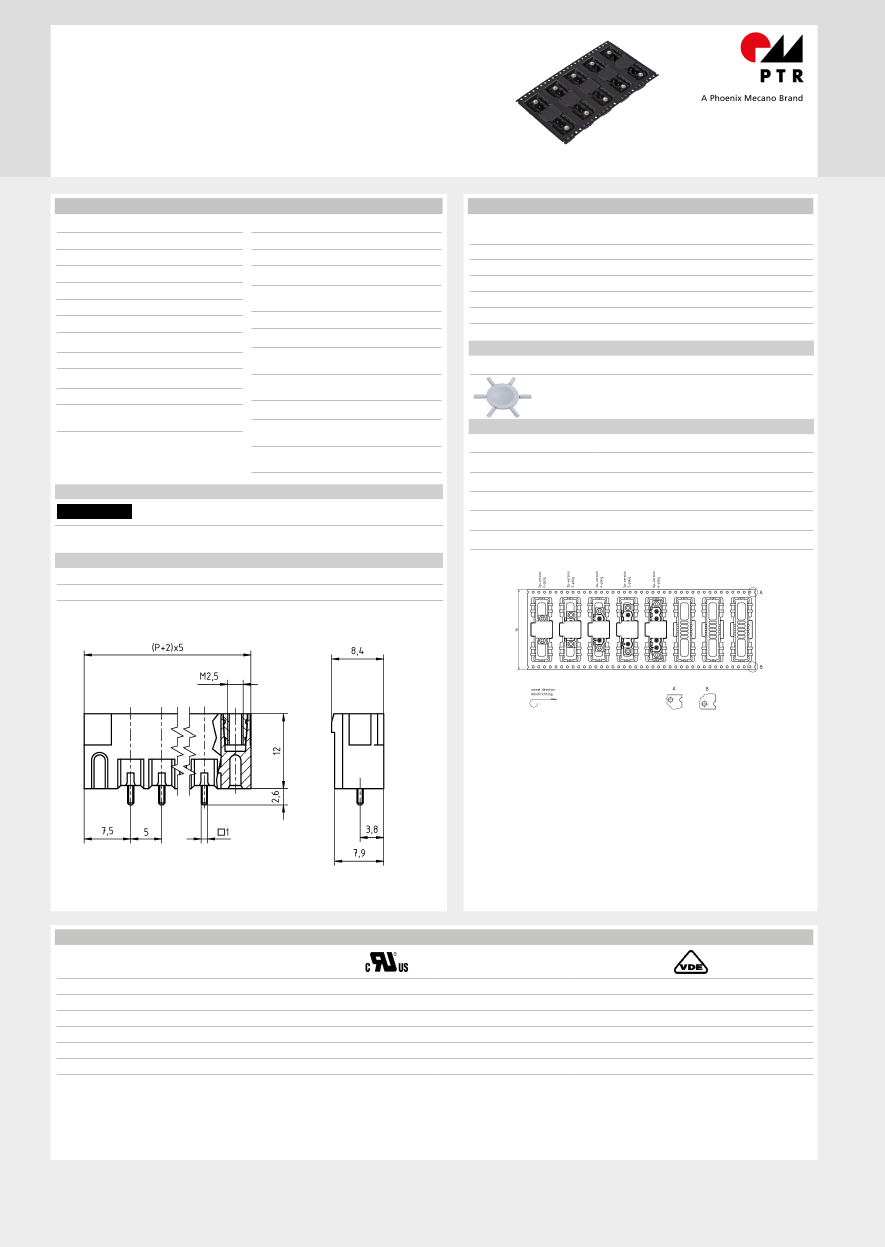

STL950/..F-5.0-V-P2.6-BK-HC-HT
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule min
Stranded with Ferrule max
-
-
-
-
-
-
Order Data (Spacing 5.0 mm)
Insulating Material
Material
Flammability Class
PPA
UL 94 V-0
2
3
4
20.00
25.00
30.00
35.00
40.00
STL950/2F-5.0-V-P2.6-BK-HC-HT
STL950/3F-5.0-V-P2.6-BK-HC-HT
STL950/4F-5.0-V-P2.6-BK-HC-HT
STL950/5F-5.0-V-P2.6-BK-HC-HT
STL950/6F-5.0-V-P2.6-BK-HC-HT
Poles
Width (mm)
Article Designation
Article
Number
50950026389R
50950036389R
50950046389R
50950056389R
50950066389R
PU
140
140
140
140
140
Temperatures
Operating Temperature
(without mech. load)
Store Temperature
-40 °C - 105 °C
-40 °C - 105 °C
5
6
Dimensions
PCB Hole Diameter
1.4 mm
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
260 °C
3-4 s
Accessoires
Figure
Designation
Article Number
Coding Star CS2-5.0/5.08-LIGHT Order Data: 50000000028
GREY-HT
Materials
Thread Insert, Flange
Contact Pin
Brass
Copper
Alloy
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
217 - 245 °C
60 s
Tape on Reel
Poles
2
3
4
Reel (RD/")
13
13
13
13
13
Width (R/mm) Pitch (RP/mm)
56
56
56
56
56
20
20
20
20
20
Pieces (PCS)
140
140
140
140
140
Colours
BLACK, RAL 9011
Colours according to RAL, there may be variations on colour due to production conditions.
5
6
Counterparts (Spacing 5.0 mm)
Terminal Block
AK950
In combination of connectors with different admission data, the lower value is valid.
Ratings
UseGroup
Rated Voltage
Rated Current
Overvoltage Category
Test Voltage
Pollution Degree
B
300 V
16 A
C
150 V
16 A
D
300 V
10 A
250 V
16 A
III
1.60 kV
1.30 kV
1.60 kV
4.0 kV
3
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu

STL950/4F-5.0-V-P2.6-BK-HC-HT Related Products

STL950/4F-5.0-V-P2.6-BK-HC-HT 50950056389R 50950026389R
Description Strip Terminal Block, Strip Terminal Block, Strip Terminal Block,
Reach Compliance Code compliant compliant compliant
Terminal and terminal strip types STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK
Maker PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG -
Base Number Matches 1 1 -
