MICRONECTOR 300
CONTENTS
Main features ……………………..…..………………………….……………..………………..…………………….. 3
Characteristics …………………..…..………………………….……………..………………..…………………….... 4
Styles available …………………..…..………………………….……………..………………..………………….. 5 - 6
Common dimensions / mounting details …………………..…..………………………….……………..…………… 7
Ordering information …………………..…..……………………………………….……….……………..…………… 8
Product safety information ……………………………..……..……………………………...……..………………… 9
MAIN FEATURES
•
•
•
2mm pitch
Small footprint for increased packing density
Optional Jackscrews will fit either male or female
•
Sizes from 27 to 78 way
•
•
Male straight p.c., 90° p.c. and crimp termination s
Female straight p.c., flexi circuit and crimp terminations
FOR SALES ENQUIRIES CONTACT
F.C. LANE ELECTRONICS LTD TEL: 01403 790661 FAX: 01403 790849 E-mail: sales@fclane.com
FOR TECHNICAL ENQUIRIES CONTACT
WEALD ELECTRONICS LTD TEL: 01403 790715 FAX: 01403 790734 E-mail: technical@wealdelectronics.com
3
www.wealdelectronics.com
MICRONECTOR 300
GENERAL INFORMATION
CHARACTERISTICS
MATERIALS
Insulator
Contact
Termination
Jackscrews
Glass filled thermoplastic UL94V-0
Copper alloy plated hard acid gold
Hard acid gold or tin
Stainless steel
ELECTRICAL
Individual contacts
(in insolation)
All contacts
(simultaneously)
Working voltage
Proof voltage
Contact
resistance
Insulation resistance
after conditioning
100M
min.
initially
after conditioning
initially
at 25° Tamb. 3.3A max.
C
at 85° Tamb. 2.6A max.
C
at 25° Tamb. 3.0A max.
C
at 85° Tamb. 2.2A max.
C
120V d.c. or a.c. peak
360V d.c. or a.c. peak
10m
13m
1000M
max.
max.
min.
Current
MECHANICAL
Mechanical operations
Insertion and withdrawal force (par contact pair)
Contact retention
Crimp barrel accommodation
500
0.8N max., 0.2N min.
10N min.
22 AWG – 28AWG to BS G 210 Type A
ENVIRONMENTAL
Climatic category
Vibration severity General
55/125/56
10Hz to 2000Hz
0.75mm/98m/s² (10g
n
) duration 6h
13.3Hz to 2000Hz random with superimposed sinusoids, duration
15min each of 4 planes. No intermittencies measured when using
an H.S.L.I. (High Speed Logic Interrupt) detector with a trip
threshold of 2ns
390m/s² (40g
n
) 4000 ± 10 bumps
981m/s² (100g
n
) for 6ms
490m/s² (50g
n
)
Vibration severity Additional
Bump severity
Shock severity
Acceleration severity
FOR SALES ENQUIRIES CONTACT
F.C. LANE ELECTRONICS LTD TEL: 01403 790661 FAX: 01403 790849 E-mail: sales@fclane.com
FOR TECHNICAL ENQUIRIES CONTACT
WEALD ELECTRONICS LTD TEL: 01403 790715 FAX: 01403 790734 E-mail: technical@wealdelectronics.com
4
www.wealdelectronics.com
MICRONECTOR 300
STYLES AVAILABLE

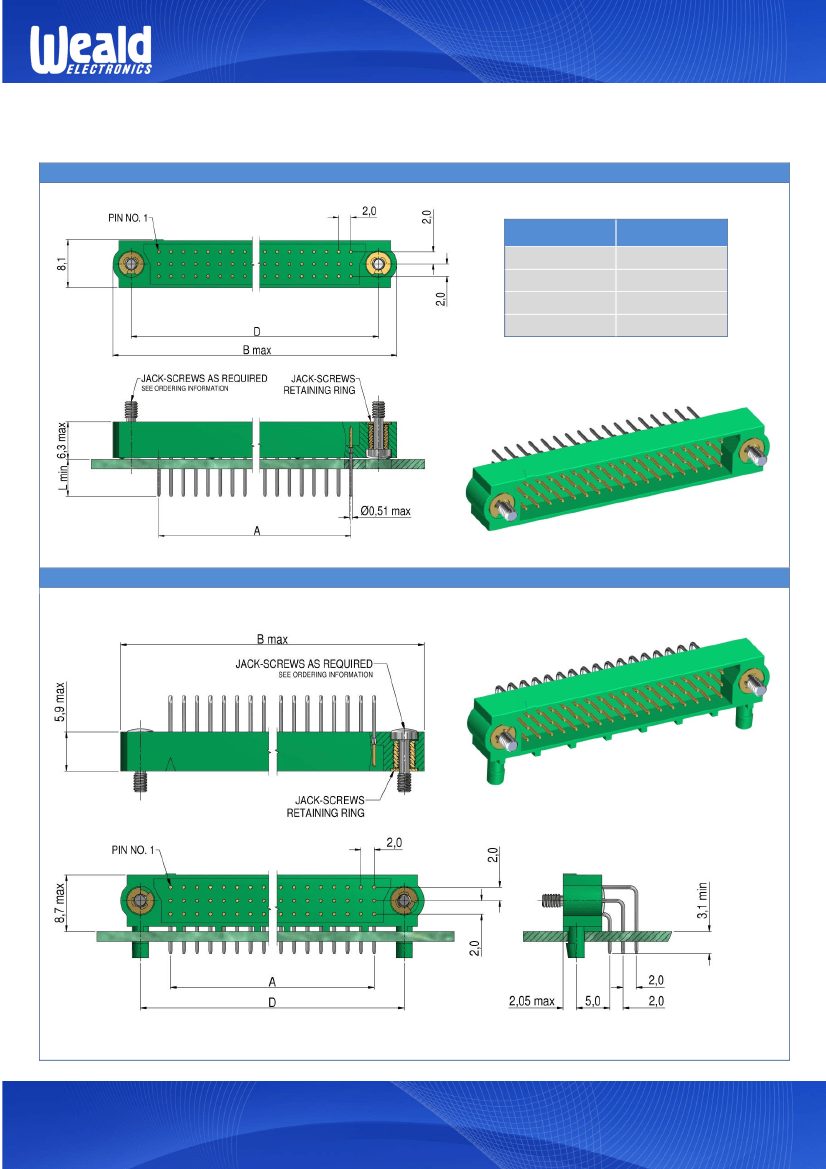

MALE STRAIGHT P.C. TERMINATION TYPE T, N, X, Y & Z
Type
T
N
X
Y
L (min)
3.1
7.4
9.5
5.7
MALE 90° P.C. TERMINATION TYPE L
FOR SALES ENQUIRIES CONTACT
F.C. LANE ELECTRONICS LTD TEL: 01403 790661 FAX: 01403 790849 E-mail: sales@fclane.com
FOR TECHNICAL ENQUIRIES CONTACT
WEALD ELECTRONICS LTD TEL: 01403 790715 FAX: 01403 790734 E-mail: technical@wealdelectronics.com
