3134F datasheet, PDF - EEWORLD Datasheet

3134F: DescriptionRF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size559KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

3134F Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Other features	BNC-F, I/P POWER-MAX(PEAK)=4000W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

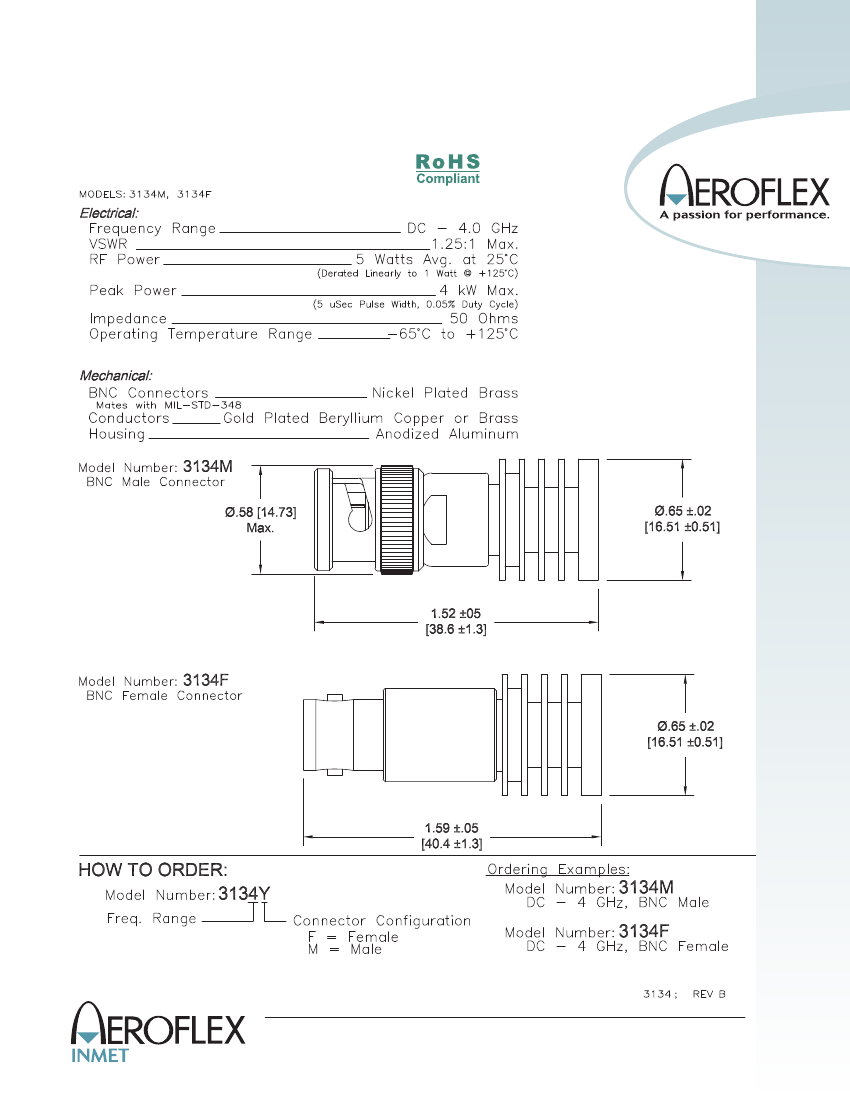

TERMINATION

BNC, DC - 4.0 GHz, 5 WATTS

SPECIFICATIONS:

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex-.com

	3134F	3134M
Description	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
Reach Compliance Code	unknown	unknown
Other features	BNC-F, I/P POWER-MAX(PEAK)=4000W	BNC-M, I/P POWER-MAX(PEAK)=4000W
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	36.99 dBm	36.99 dBm
JESD-609 code	e4	e4
Maximum operating frequency	4000 MHz	4000 MHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)	Gold (Au)
Maximum voltage standing wave ratio	1.25	1.25
Base Number Matches	1	1
