3050131-04 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> 3050131-04

Preview

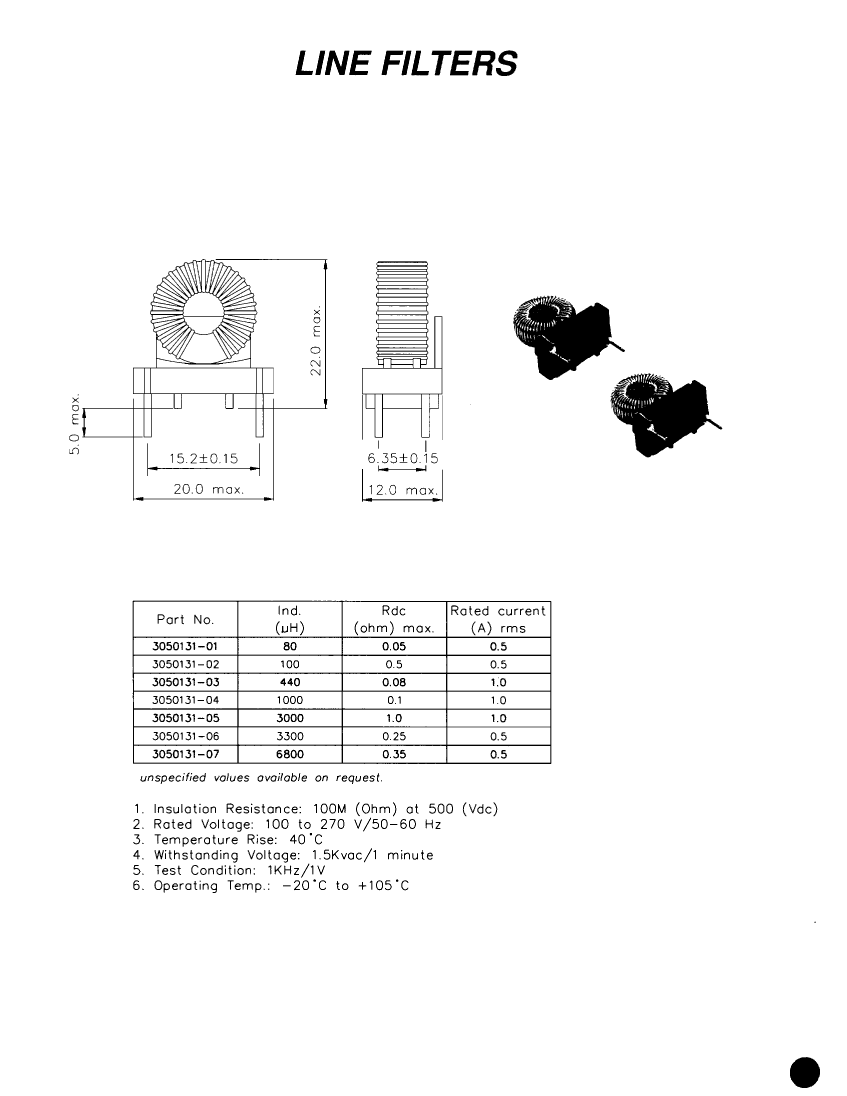

3050131-04: DescriptionGeneral Purpose Inductor, 1000uH, 1 Element; CategoryPassive components inductor; File Size21KB，1 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Parametric Compare View All

3050131-04 Overview

General Purpose Inductor, 1000uH, 1 Element

3050131-04 Parametric

Parameter Name	Attribute value
Maker	FRONTIER
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.1 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	0.001 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

3050131-04 Related Products

	3050131-04	3050131-06	SC3	3050131-03	3050131-02	3050131-07	3050131-05
Description	General Purpose Inductor, 1000uH, 1 Element	General Purpose Inductor, 3300uH, 1 Element	Mixed Domain Oscilloscopes	General Purpose Inductor, 440uH, 1 Element	General Purpose Inductor, 100uH, 1 Element	General Purpose Inductor, 6800uH, 1 Element	General Purpose Inductor, 3000uH, 1 Element
Maker	FRONTIER	-	-	FRONTIER	FRONTIER	FRONTIER	FRONTIER
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.1 Ω	0.25 Ω	-	0.08 Ω	0.5 Ω	0.35 Ω	1 Ω
Nominal inductance(L)	1000 µH	3300 µH	-	440 µH	100 µH	6800 µH	3000 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	-	1	1	1	1
Number of terminals	2	2	-	2	2	2	2
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-20 °C	-	-20 °C	-20 °C	-20 °C	-20 °C
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	-	NO	NO	NO	NO
surface mount	NO	NO	-	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	-	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	-	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Test frequency	0.001 MHz	0.001 MHz	-	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Base Number Matches	1	1	-	1	1	1	-
