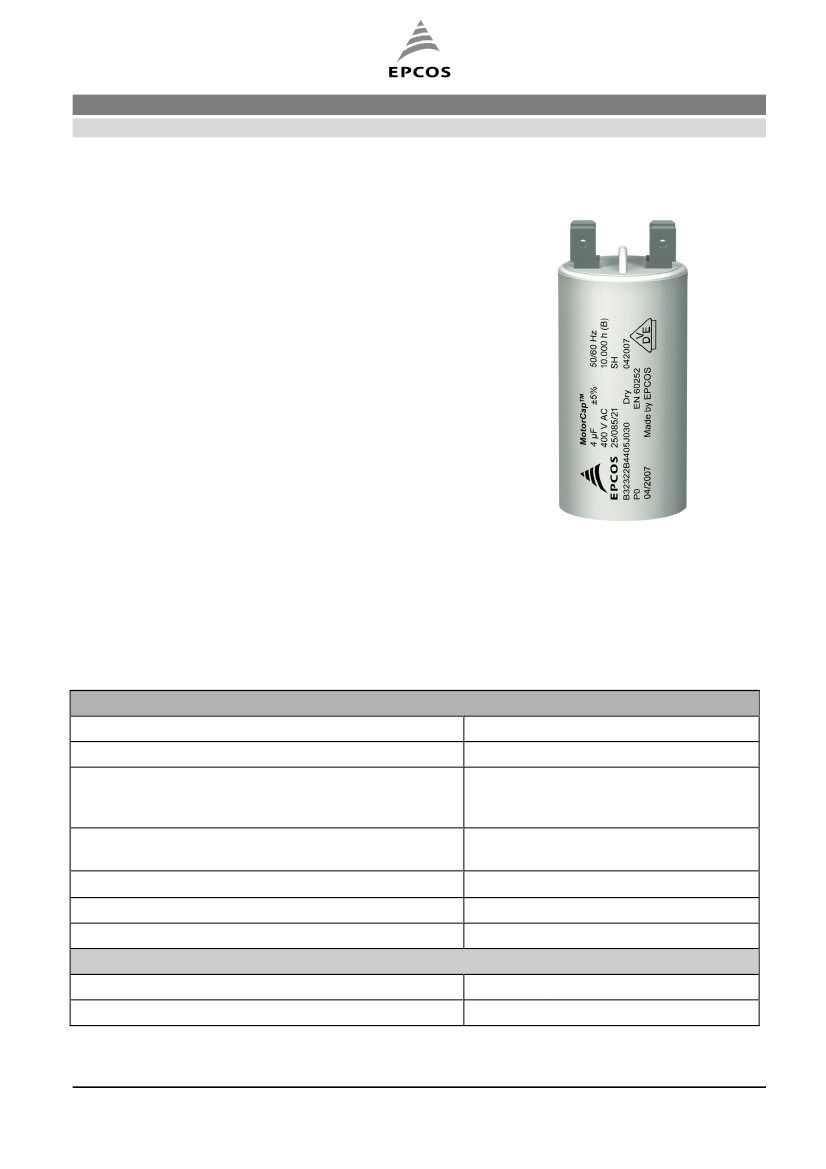

Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™
Construction
Dielectric: polypropylene film
Plastic can and top UL 94 V2 material
Dry type
Features
Self-healing properties
Low dissipation factor
P0 safety class to IEC 60252-1 2001-02
High insulation resistance
IEC/EN 60335-1 compatible on request
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
B32320 – single fast-on: 6.3 × 0.8 mm
B32322 – double fast-on: 6.3 × 0.8 mm
Mounting parts (optional)
Threaded stud at bottom of can (M8, max. torque = 5 Nm)
Locking clip for mounting into a hole of Ø 8 mm
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
IEC 60252-1 2001-02 / EN 60252 2001
P0
250 V/85 °C:
400 V/85 °C:
480 V/85 °C:
10000 h (class B)
10000 h (class B)
3000 h (class C)
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
1.5 ... 60 µF (250 V AC, 400 V AC)
3 ... 40 µF (480 V AC)
±5%
250 V AC, 400 V AC, 480 V AC
50 / 60 Hz
1.1 · V
R
1.3 · I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 2 of 8
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™
Test data
AC test voltage terminal to terminal V
TT
Insulation resistance R
ins
or time constant
τ
at 20 °C, rel. humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/0 and –2-1/1
Test temp 550 °C for I
R
≤
0.5 A
Test temp 750 °C for I
R
> 0.5 A
Tracking test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
Self-extinguishing within 30 seconds of
withdrawing the glow wire and without
igniting wrapping tissue.
> 250 V
20 N at 125 °C
Compliant to EN 60252
25/085/21 to IEC 60068-1
–25 °C
+85 °C
21 days
2 · V
R
, 2 s (routine test)
2 · V
R
, 60 s (type test)
3000 s
≤
1.0 · 10
-3
(120 Hz)
10 V/μs
Approvals
VDE
400 V/85 °C: 10000 h (class B) for 1.5 µF ... 50 µF
480 V/85 °C: 3000 h (class C) for 3 µF ... 35 µF
Approved
Approved
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 8
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™

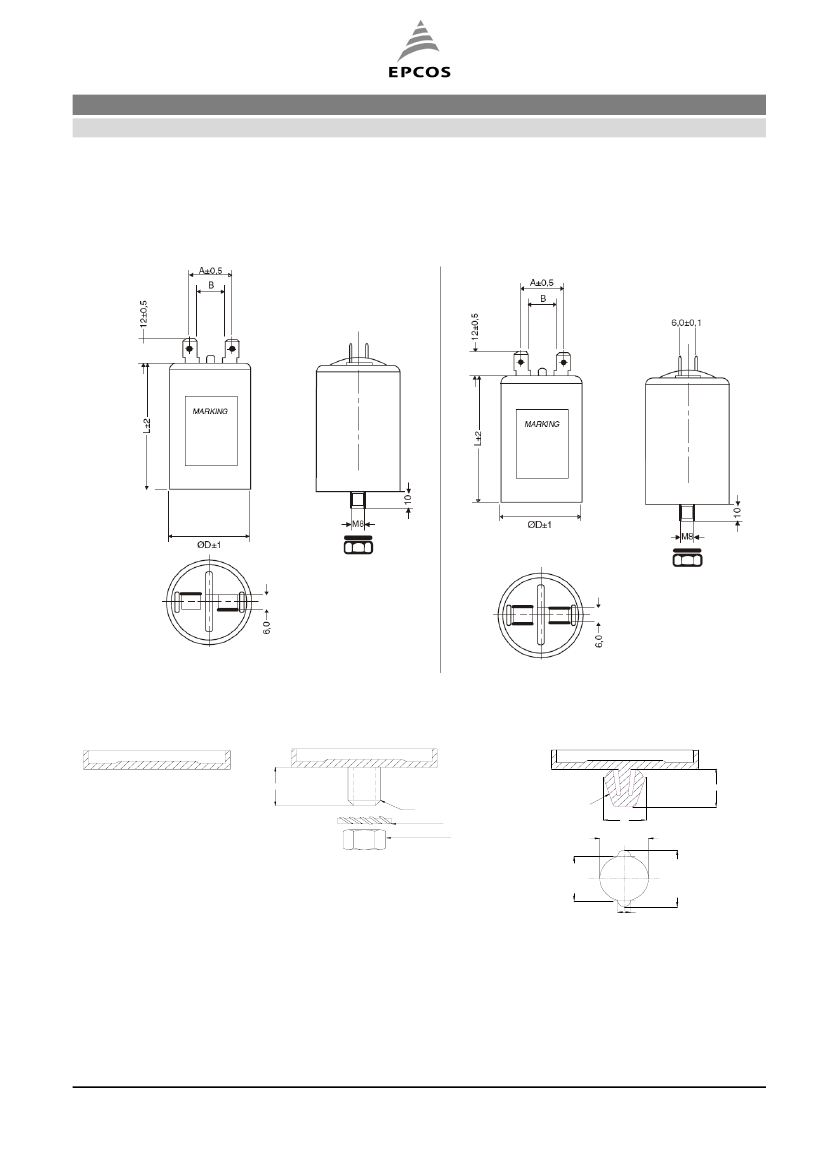

Dimensional drawings
B32320
B32322
Mounting options
# = 1: Can without mounting
# = 3: Can with M8 bolt
# = 5: Locking clip
10
Stud M8x1.25
Star Washer 8mm
Nut M8x1.25
10
M8-sized
M-Clip
fast
fixation
10
Ø8.2+0.2/-0
10.2+0.1/-0
2.0±0.05
Ø2.2+0.1/-0
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 8
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™
Ordering codes and packing units
V
R
V AC
250
C
R
μF
1.5
2
3
4
5
6
7
7.5
8
9
10
12
14
15
16
18
20
22
25
30
35
40
45
50
55
60
Max. dimensions
d × l (mm)
B32320
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
40 × 95
40 × 95
40 × 95
Max. dimensions
d × l (mm)
B32322
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
40 × 95
40 × 95
40 × 95
B3232*C1155J0#0
B3232*C1205J0#0
B3232*C1305J0#0
B3232*C1405J0#0
B3232*C1505J0#0
B3232*C1605J0#0
B3232*C1705J0#0
B3232*C1755J0#0
B3232*C1805J0#0
B3232*C1905J0#0
B3232*C1106J0#0
B3232*C1126J0#0
B3232*C1146J0#0
B3232*C1156J0#0
B3232*C1166J0#0
B3232*C1186J0#0
B3232*C1206J0#0
B3232*C1226J0#0
B3232*C1256J0#0
B3232*C1306J0#0
B3232*C1356J0#0
B3232*C1406J0#0
B3232*C1456J0#0
B3232*C1506J0#0
B3232*C1556J0#0
B3232*C1606J0#0
Ordering code
Packing units
pcs.
112
112
112
112
112
112
112
112
112
112
112
112
112
112
84
84
84
84
84
84
60
45
45
45
45
45
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 5 of 8
January 2008
