117
Terminal blocks
to
Type 224
and
Type 424
Type 166
page 85

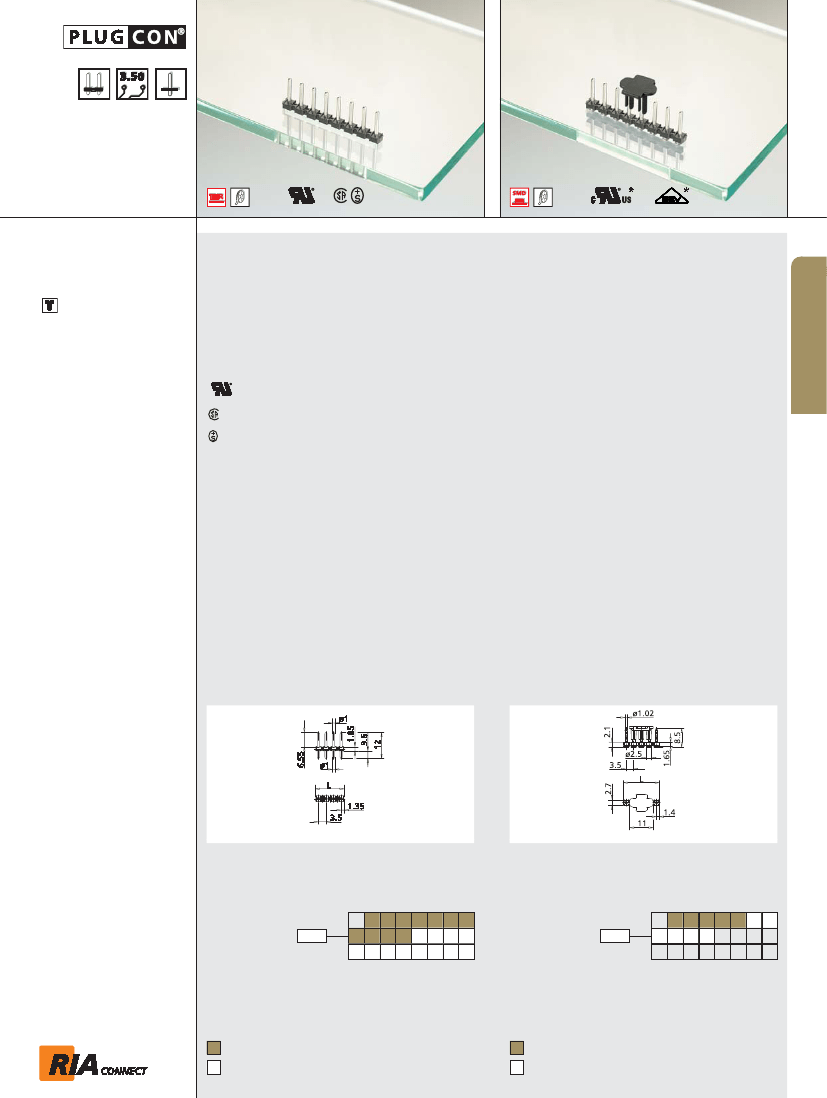

Type 224
Header, centerline 3.5 mm / 0.138 inches, vertical
mounting, round contact pins 1 mm / 0.039 inches,
closed ends, codable
Type 424
Header, centerline 3.5 mm / 0.138 inches, vertical
mounting, designed for SMT, Tape on Reel packaging
for automated processing, round contact pins
1,02 mm / 0.040 inches
A
Technical Data
V/A
V/A
300 / 15
300 / 15
125 V / 2.5 kV / 6 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.5 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.6 mm
Pole size
2 - 24
Color
black
Technical Data
130 V / 2.5 kV / 12 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.5 mm
Insulating material class
CTI 400
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
160
320
320
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
2.5 mm
Pole size
2 - 12
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 2.7 mm / 0.106 inches
L = (pole size - 1) x centerline + 2.7 mm / 0.106 inches
Part numbers (P/N)
Type 224
centerline 3.5 mm / 0.138 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 424
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 3.5 mm / 0.138 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
312241
P/N
314241
* approval pending
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
