February 28, 2007

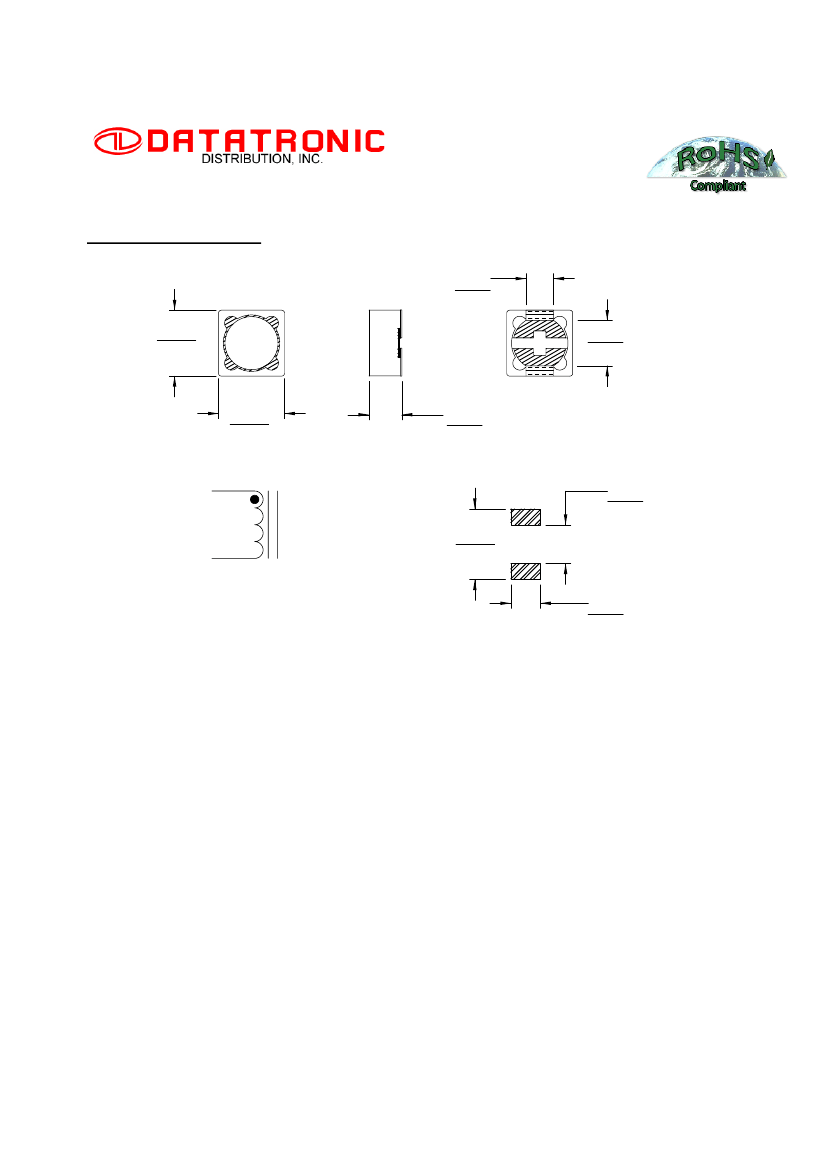

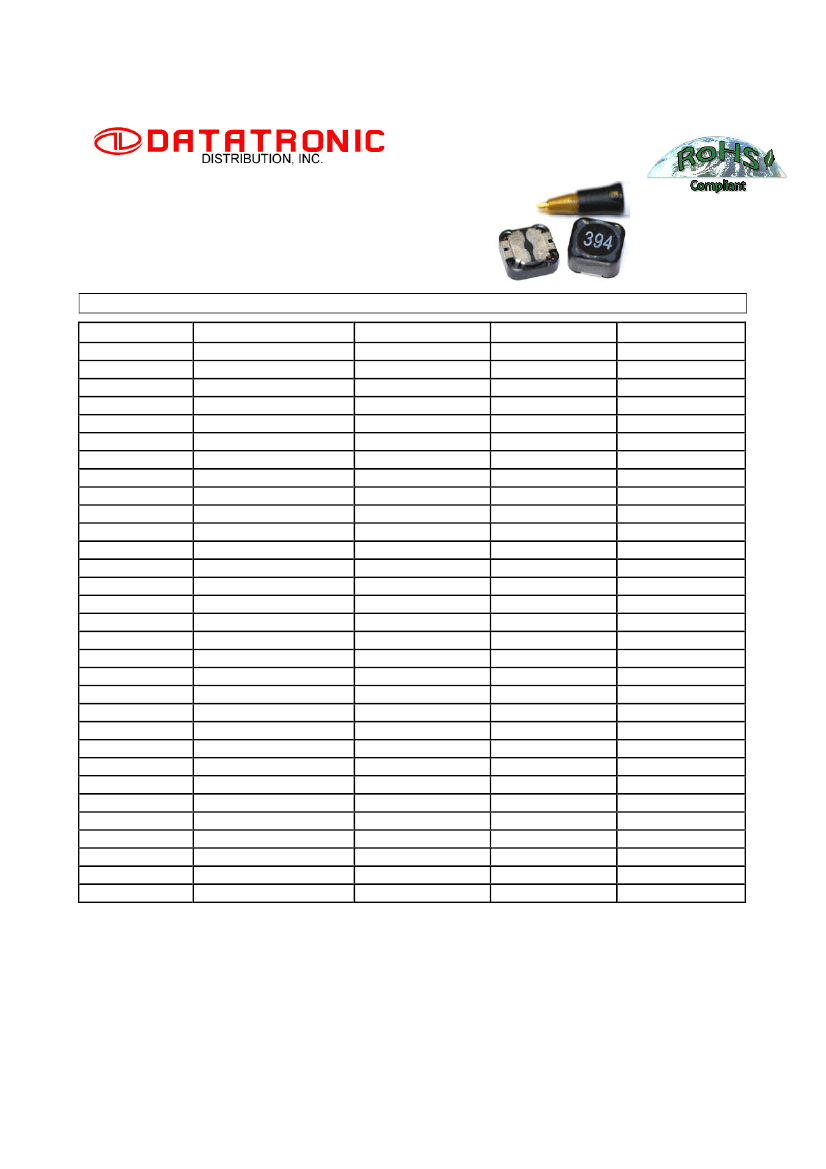

SHIELDED POWER INDUCTOR DR340-3 SERIES

Features

Maximum Height: 6.0mm

Footprint: 12mm x 12mm Max.

Inductance Range from 1.3µH to 1.0mH

Non-RoHS Versions are Available

(Note 5)

ELECTRICAL SPECIFICATIONS AT 25°C

Part Number

DR340-3-132

DR340-3-212

DR340-3-312

DR340-3-442

DR340-3-582

DR340-3-752

DR340-3-103

DR340-3-123

DR340-3-153

DR340-3-183

DR340-3-223

DR340-3-273

DR340-3-333

DR340-3-393

DR340-3-473

DR340-3-563

DR340-3-683

DR340-3-823

DR340-3-104

DR340-3-124

DR340-3-154

DR340-3-184

DR340-3-224

DR340-3-274

DR340-3-334

DR340-3-394

DR340-3-474

DR340-3-564

DR340-3-684

DR340-3-824

DR340-3-105

OPERATING TEMPERATURE -20°C to +80°C

Test Frequency

7.96MHz

1kHz

Inductance (µH) ± 20%

1.3

2.1

3.1

4.4

5.8

7.5

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

DCR (Ω) Max.

0.012

0.014

0.017

0.020

0.021

0.024

0.025

0.027

0.030

0.034

0.036

0.051

0.057

0.068

0.075

0.110

0.120

0.140

0.160

0.170

0.230

0.290

0.400

0.460

0.510

0.690

0.770

0.860

1.200

1.340

1.530

IDC (A) Max.

8.0

7.0

6.0

5.0

4.4

4.2

4.0

3.5

3.3

3.0

2.8

2.3

2.1

2.0

1.8

1.7

1.5

1.4

1.3

1.1

1.0

0.9

0.8

0.75

0.68

0.65

0.58

0.54

0.48

0.43

0.40

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Toll Free Tel: 888-889-5391 Fax: 951-928-7701

Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice. Page 1 of 2
