DR217-6-155

Description
RADIAL LEADED INDUCTORS
File Size68KB,1 Pages
ManufacturerDATATRONICS
Websitehttp://www.datatronics.com/
Download Datasheet View All

DR217-6-155 Overview

RADIAL LEADED INDUCTORS

October 11, 2006

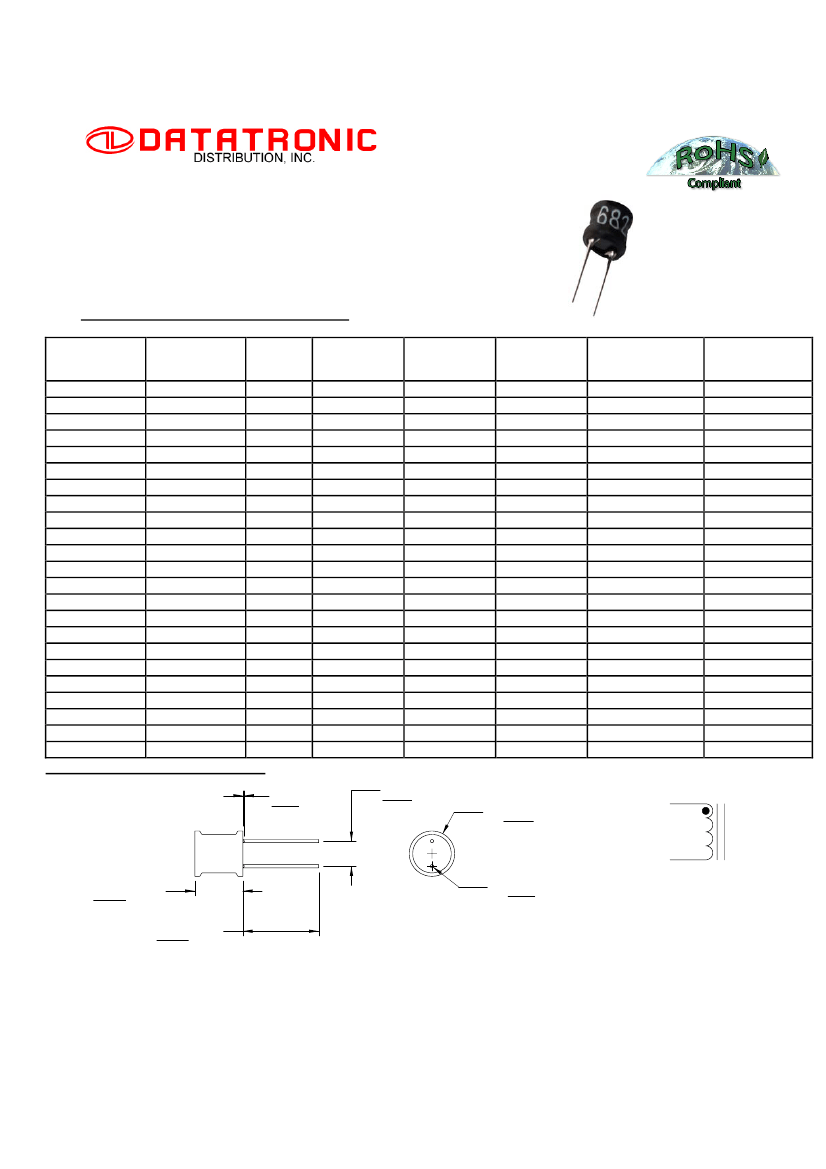

DR217-6 SERIES RADIAL LEADED INDUCTORS
Features
Designed for EMI Filters & Switching Power Supplies
Inductance Range from 3.3µH to 15mH
Operating Temp. -20°C to +80°C
Tinned Leads with Leaded Solder is Available
(note 5)
ELECTRICAL SPECIFICATIONS AT 25ºC
Part Number
DR217-6-332
DR217-6-472
DR217-6-682
DR217-6-103
DR217-6-153
DR217-6-223
DR217-6-333
DR217-6-473
DR217-6-683
DR217-6-104
DR217-6-154
DR217-6-224
DR217-6-334
DR217-6-474
DR217-6-684
DR217-6-105
DR217-6-155
DR217-6-225
DR217-6-335
DR217-6-475
DR217-6-685
DR217-6-106
DR217-6-156
Inductance
(µH) @1kHz
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 20%
15 ± 20%
22 ± 10%
33 ± 10%
47 ± 10%
68 ± 10%
100 ± 10%
150 ± 10%
220 ± 10%
330 ± 10%
470 ± 10%
680 ± 10%
1000 ± 10%
1500 ± 10%
2200 ± 10%
3300 ± 10%
4700 ± 10%
6800 ± 10%
10000 ± 10%
15000 ± 10%
Q Min.
10
10
10
20
20
20
30
30
20
20
20
20
20
10
10
20
30
20
30
30
30
30
50
Q Test
Freq.
7.96MHz
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
796kHz
796kHz
796kHz
796kHz
796kHz
796kHz
252kHz
252kHz
252kHz
252kHz
252kHz
252kHz
79.6kHz
79.6kHz
SRF (MHz)
Min.
36
28
18
16
12
9.5
7
5.8
4.7
3.8
3.1
2.5
2
1.6
1.3
1.1
0.82
0.76
0.64
0.54
0.45
0.38
0.29
DCR (Ohm)
Max.
0.01
0.015
0..016
0.025
0.029
0.04
0.062
0.075
0.13
0.16
0.26
0.33
0.52
0.66
1.1
1.4
2.4
3.2
4.9
7.6
9.8
18
24
Rated Current
(A) Max. I sat
8.8
7.2
6.1
5
4.2
3.4
2.8
2.3
1.9
1.6
1.3
1.1
0.88
0.75
0.61
0.51
0.43
0.35
0.28
0.24
0.2
0.17
0.13
Rated Current
(A) Max. I rms
5.9
4.8
4.6
3.7
3.4
2.9
2.3
2.1
1.6
1.4
1.1
1
0.82
0.72
0.56
0.5
0.38
0.33
0.26
0.21
0.18
0.14
0.12
MECHANICAL SPECIFICATIONS
.039 MIN.
1,00
1
XXX
.196 ±.039
5,00 ±1,00
Ø .472 MAX.
12,00
1
2
2
Ø .031
TYP
0,80
.511 MAX.
13,00
.590 MIN.
15,00
SCHEMATIC
NOTES:
1. Dimensions are shown in inches/millimeters
2. Unless otherwise specified, tolerance = Inches: ±0.012
= Millimeters: ±0,30
3. Isat based on the inductance being 90% of its initial value
4. Irms based on a temperature rise of 20°C
5. For non-RoHS parts replace DR prefix with 42- (e.g. DR217-6 becomes 42-217-6)
6. Terminal finish is compliant to RoHS requirements
