GMM7364000BS-70 datasheet, PDF

Datasheet> All Categories > storage> storage> GMM7364000BS-70

GMM7364000BS-70: DescriptionFast Page DRAM Module, 4MX36, 70ns, CMOS, SIMM-72; Categorystorage storage; File Size900KB，15 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GMM7364000BS-70 Overview

Fast Page DRAM Module, 4MX36, 70ns, CMOS, SIMM-72

GMM7364000BS-70 Parametric

Parameter Name	Attribute value
Maker	LG Semicon Co., Ltd.
package instruction	SIMM-72
Reach Compliance Code	unknown
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	18
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	150994944 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	72
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX36
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	33.02 mm
Maximum standby current	0.036 A
Maximum slew rate	3.6 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Base Number Matches	1

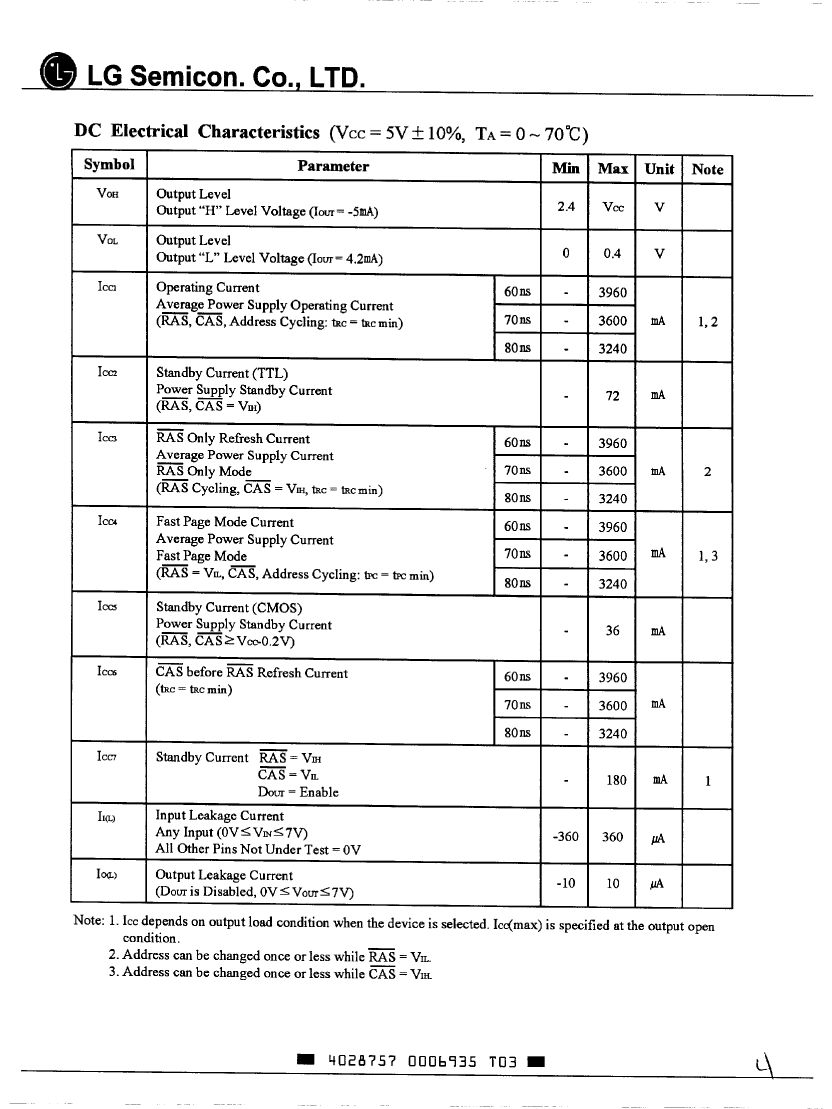

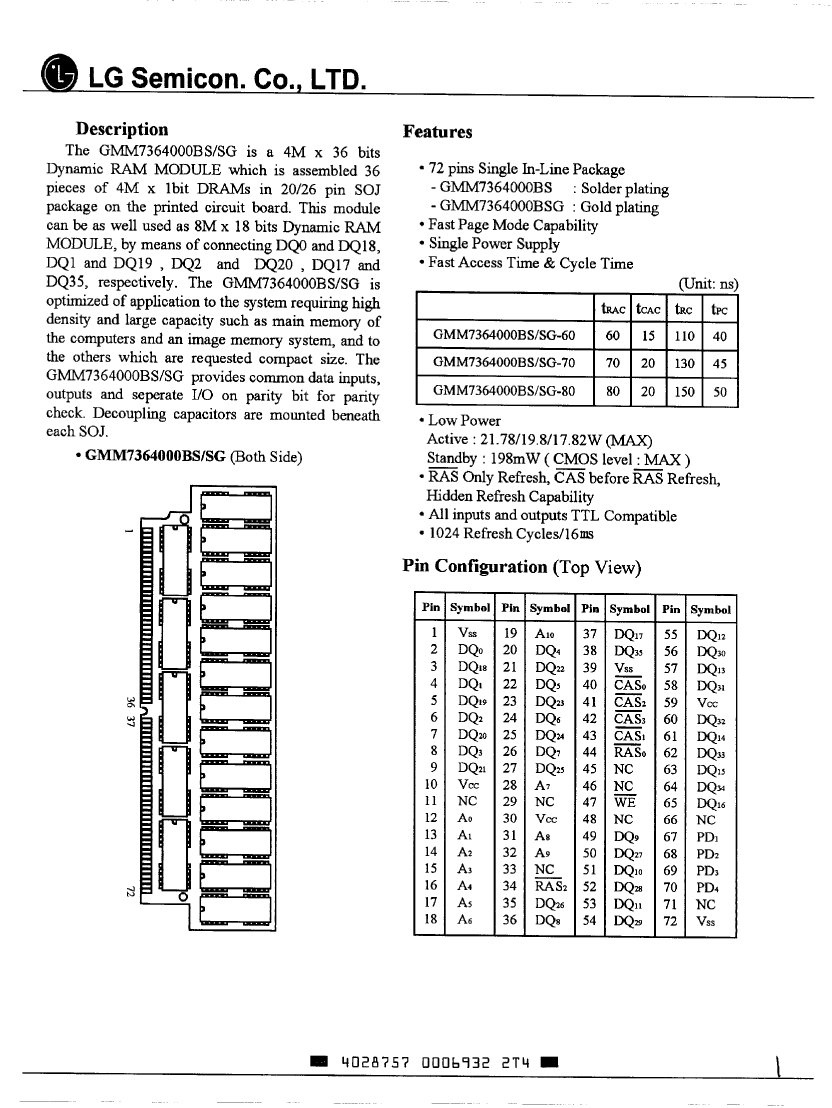

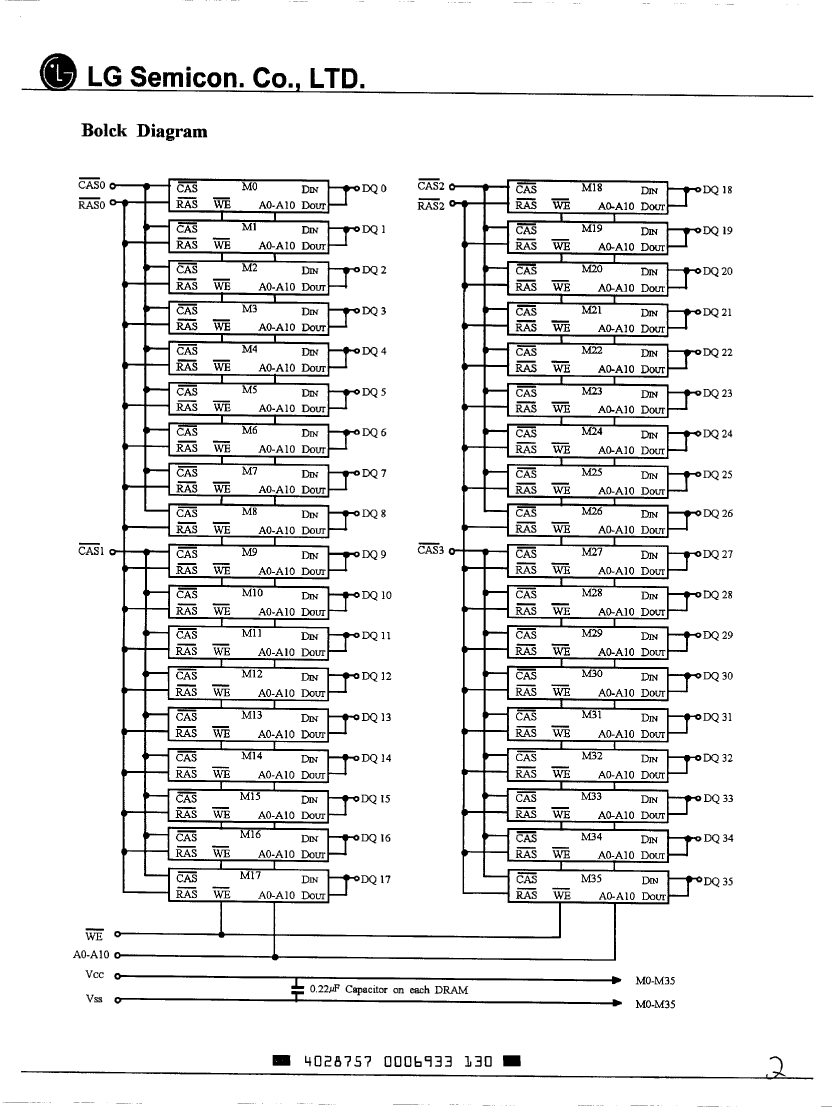

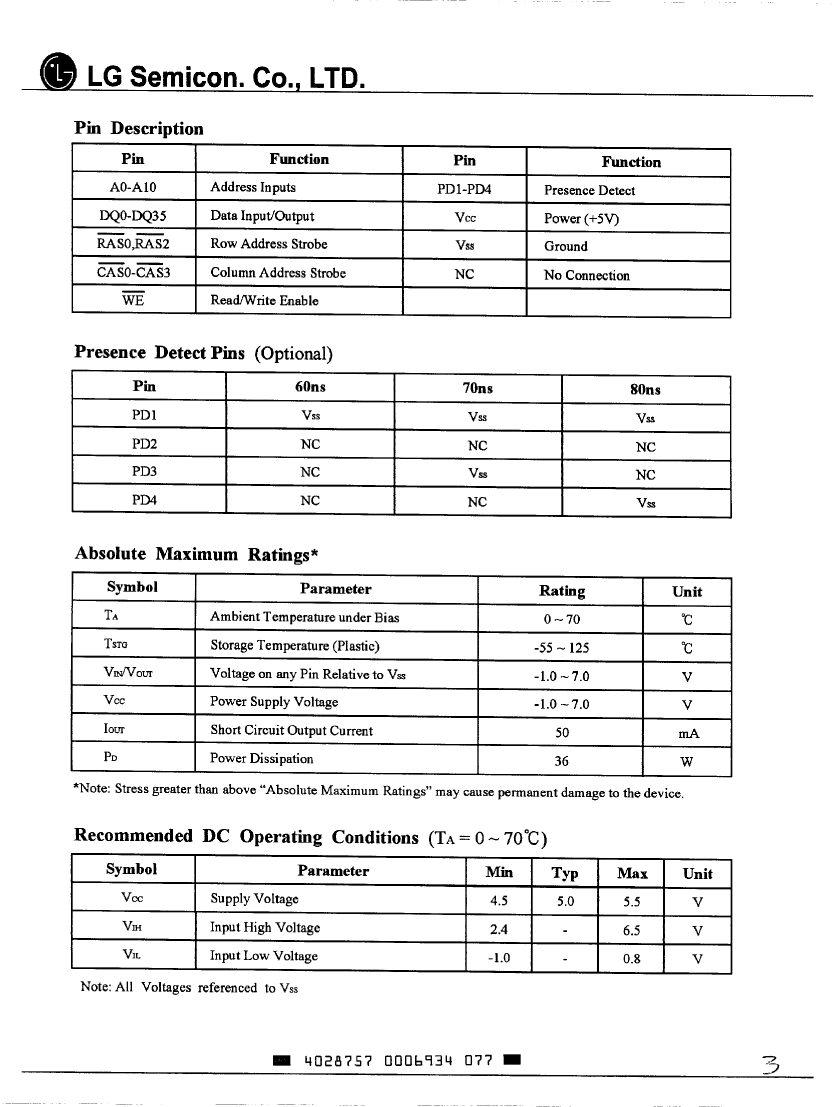

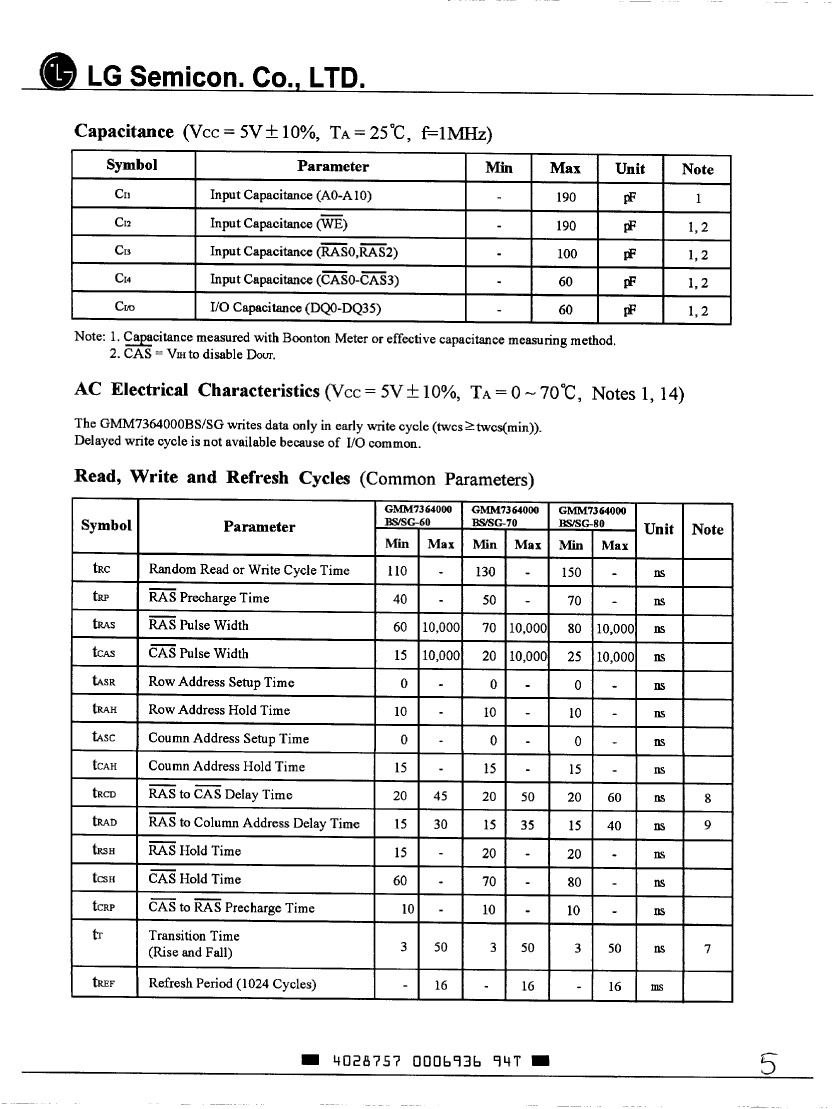

Preview

Download Datasheet

View All

GMM7364000BS-70 Related Products

	GMM7364000BS-70	GMM7364000BSG-60	GMM7364000BS-60	GMM7364000BSG-70	GMM7364000BS-80	GMM7364000BSG-80
Description	Fast Page DRAM Module, 4MX36, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX36, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX36, 60ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX36, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX36, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 4MX36, 80ns, CMOS, SIMM-72
package instruction	SIMM-72	SIMM-72	SIMM-72	SIMM-72	SIMM-72	SIMM-72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	60 ns	60 ns	70 ns	80 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	18	18	18	18	18	18
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	150994944 bit	150994944 bit	150994944 bit	150994944 bit	150994944 bit	150994944 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	36	36	36	36	36	36
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX36	4MX36	4MX36	4MX36	4MX36	4MX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum seat height	33.02 mm	33.02 mm	33.02 mm	33.02 mm	33.02 mm	33.02 mm
Maximum standby current	0.036 A	0.036 A	0.036 A	0.036 A	0.036 A	0.036 A
Maximum slew rate	3.6 mA	3.96 mA	3.96 mA	3.6 mA	3.24 mA	3.24 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	-
