55533-306LF datasheet, PDF - EEWORLD Datasheet

55533-306LF: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size273KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

55533-306LF Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.157 inch
subject depth	0.177 inch
body length	0.233 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.807 N
Insulation resistance	1000000000 Ω
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	55533
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Evacuation force-minimum value	.1946 N
Base Number Matches	1

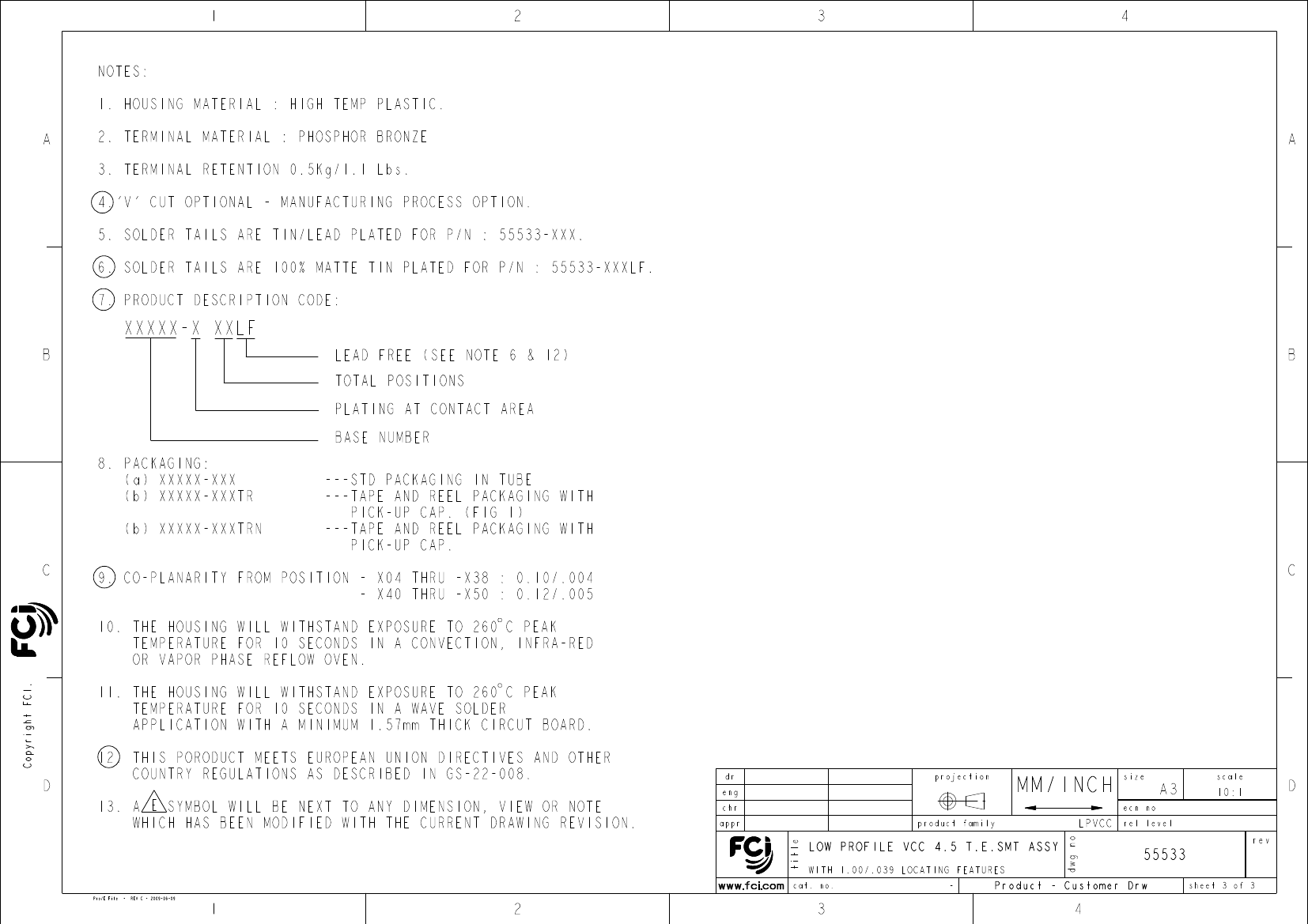

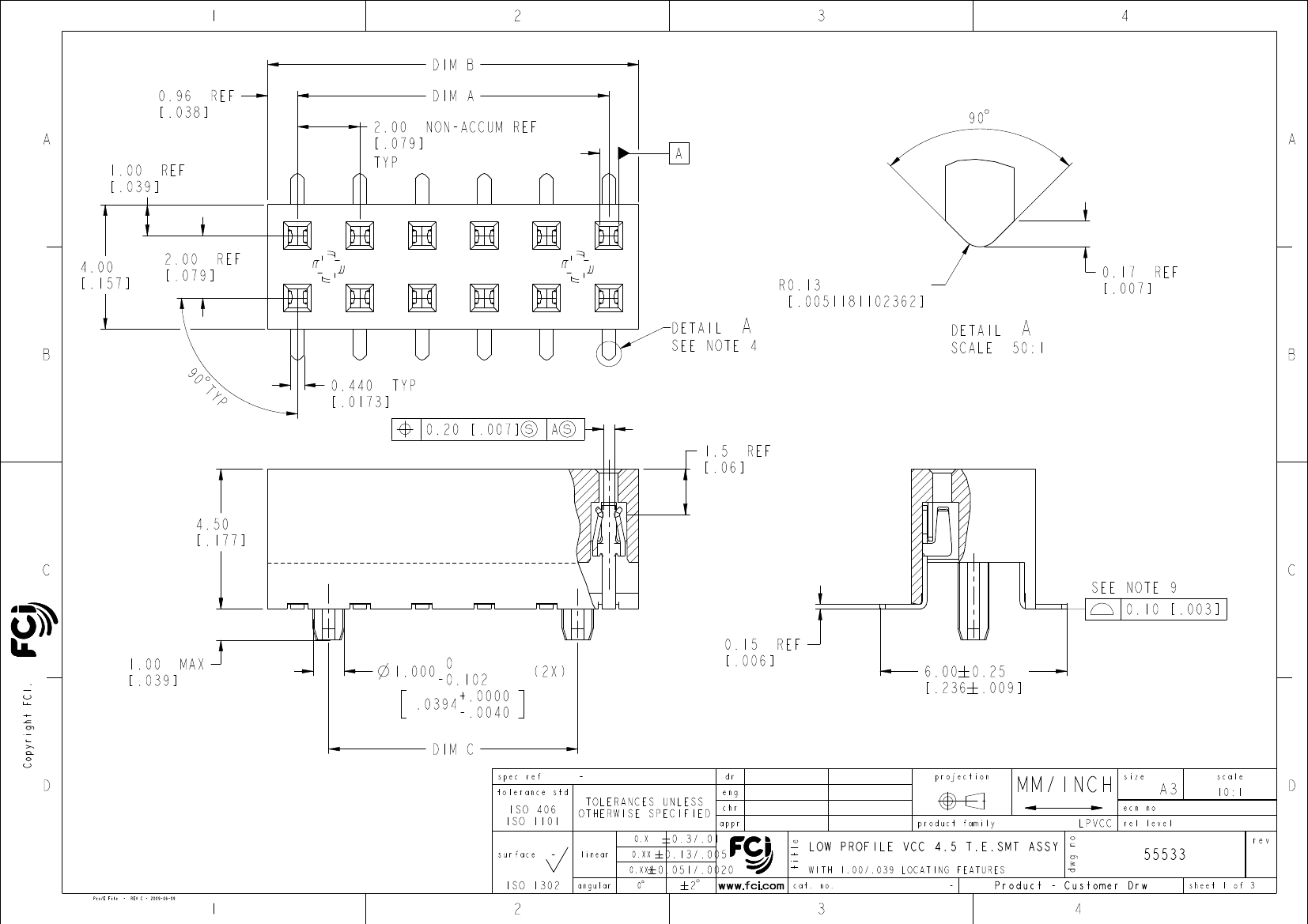

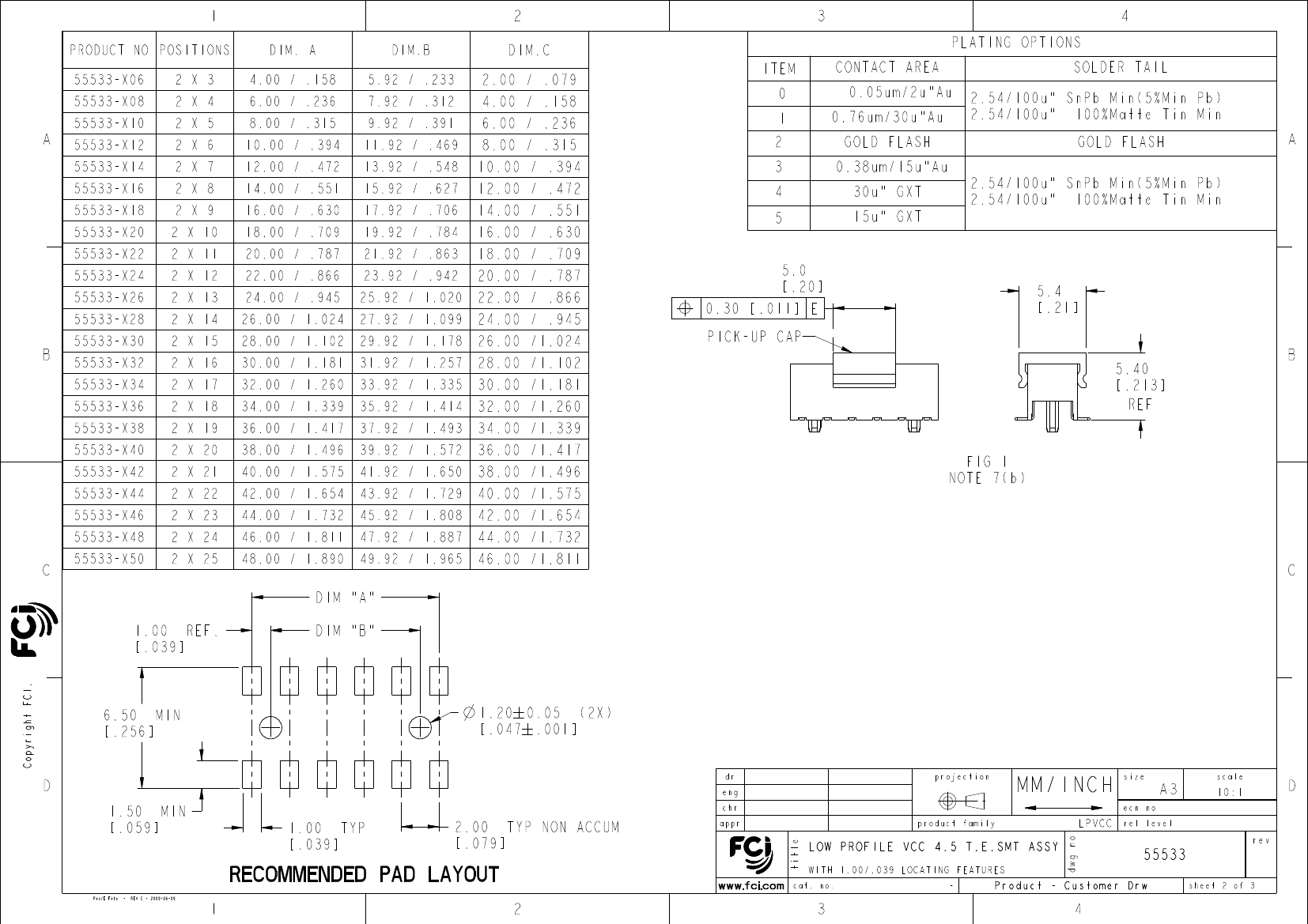

Andrew Yong

Guo-Min Sun

Rick Bian

2010/10/18

2013/12/05

ELX-N-16451-1

Released

PDS: Rev :H

STATUS:Released

Printed: Dec 05, 2013
