87151-31061

Description
Card Edge Connector, 31 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size311KB,1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

87151-31061 Overview

Card Edge Connector, 31 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

87151-31061 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAces Electronics Co., Ltd.
Reach Compliance Codeunknown
Board mount optionsFITTING NAIL
body width0.077 inch
subject depth0.199 inch
body length0.807 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGold (Au)
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Durability30 Cycles
Insulation resistance50000000 Ω
insulator materialNYLON
JESD-609 codee4
Plug contact pitch0.02 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts31
Base Number Matches1

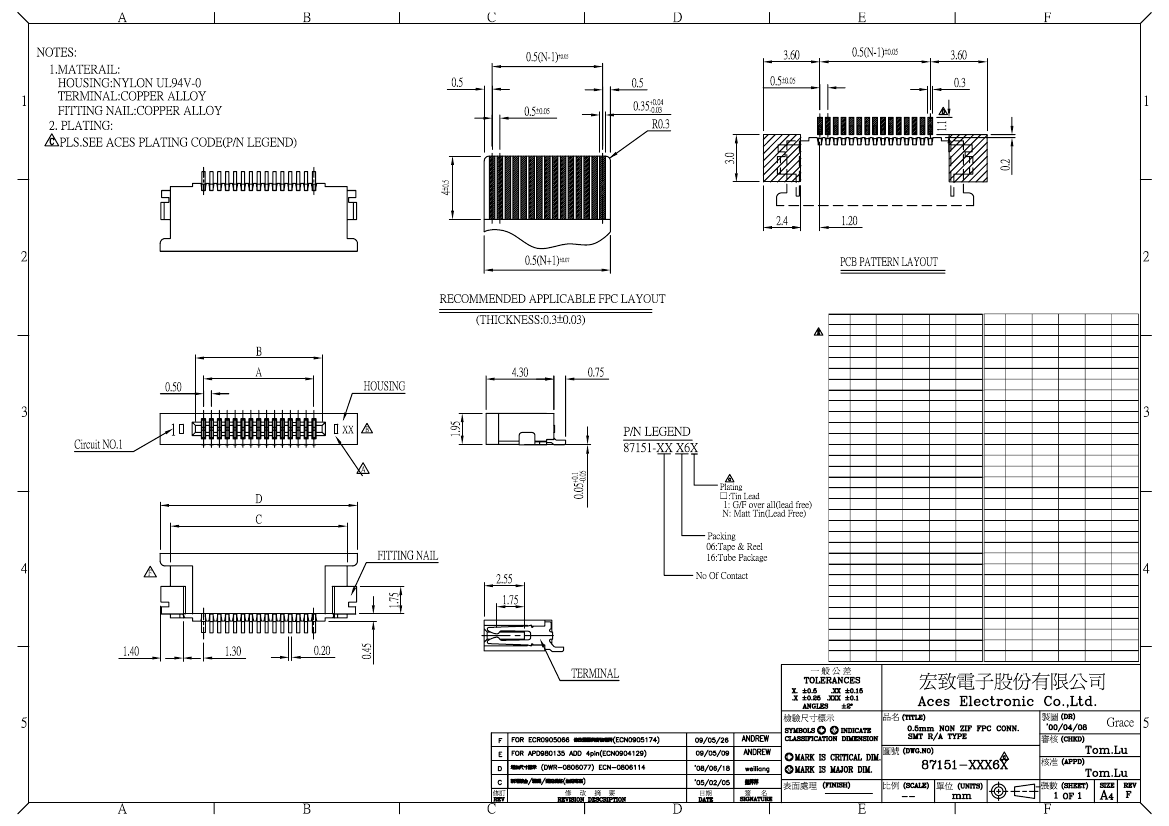

CKT DIM A DIM B DIM C DIM D
狀態欄
4
1.5
2.5
5.7
7.0
V
-
5
2.0
3.0
6.2
7.5
-
6
2.5
3.5
6.7
8.0
-
7
3.0
4.0
7.2
8.5
-
8
3.5
4.5
7.7
9.0
v
9
4.0
5.0
8.2
9.5
-
10
4.5
5.5
8.7
10.0
-
11
5.0
6.0
9.2
10.5
-
12
5.5
6.5
9.7
11.0
-
13
6.0
7.0
10.2
11.5
-
14
6.5
7.5
10.7
12.0
-
15
7.0
8.0
11.2
12.5
-
16
7.5
8.5
11.7
13.0
-
17
8.0
9.0
12.2
13.5
-
18
8.5
9.5
12.7
14.0
-
19
9.0
10.0
13.2
14.5
-
20
9.5
10.5
13.7
15.0
-
21
10.0
11.0
14.2
15.5
-
22
10.5
11.5
14.7
16.0
-
23
11.0
12.0
15.2
16.5
-
24
11.5
12.5
15.7
17.0
v
25
12.0
13.0
16.2
17.5
-
26
12.5
13.5
16.7
18.0
v
27
13.0
14.0
17.2
18.5
-
28
13.5
14.5
17.7
19.0
-
29
14.0
15.0
18.2
19.5
-
30
14.5
15.5
18.7
20.0
v
31
15.0
16.0
19.2
20.5
-
32
15.5
16.5
19.7
21.0
v
33
16.0
17.0
20.2
21.5
-
34
16.5
17.5
20.7
22.0
CKT DIM A DIM B DIM C DIM D
狀態欄
35
21.2
22.5
17.0
18.0
-
36
17.5
18.5
21.7
23.0
-
37
18.0
19.0
22.2
23.5
-
38
18.5
19.5
22.7
24.0
-
39
19.0
20.0
23.2
24.5
v
40
19.5
20.5
23.7
25.0
-
41
20.0
21.0
24.2
25.5
-
42
20.5
21.5
24.7
26.0
-
43
21.0
22.0
25.2
26.5
-
44
21.5
22.5
25.7
27.0
-
45
22.0
23.0
26.2
27.5
-
46
22.5
23.5
26.7
28.0
-
47
23.0
24.0
27.2
28.5
-
48
23.5
24.5
27.7
29.0
-
49
24.0
25.0
28.2
29.5
v
50
24.5
25.5
28.7
30.0
-
51
25.0
26.0
29.2
30.5
-
52
25.5
26.5
29.7
31.0
-
53
26.0
27.0
30.2
31.5
-
54
26.5
27.5
30.7
32.0
-
55
27.0
28.0
31.2
32.5
-
56
27.5
28.5
31.7
33.0
-
57
28.0
29.0
32.2
33.5
-
58
28.5
29.5
32.7
34.0
-
59
29.0
30.0
33.2
34.5
-
60
29.5
30.5
33.7
35.0
-
61
30.0
31.0
34.2
35.5
-
62
30.5
31.5
34.7
36.0
-
63
31.0
32.0
35.2
36.5
-
64
31.5
32.5
35.7
37.0
-
65
32.0
33.0
36.2
37.5
