20021321-00214T9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 20021321-00214T9LF

20021321-00214T9LF: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size88KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

20021321-00214T9LF Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE

20021321-00214T9LF Parametric

Parameter Name	Attribute value
Objectid	1233727173
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.4
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (1) OVER PALLADIUM NICKEL (30)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

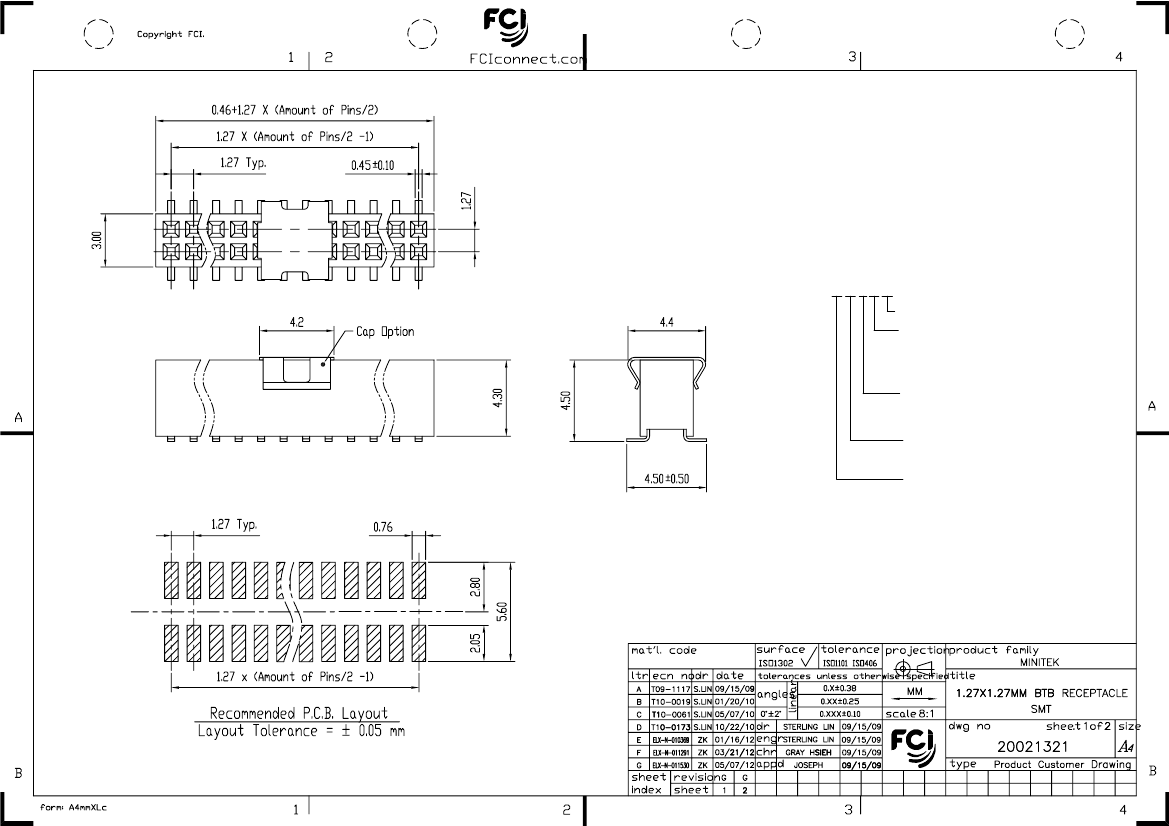

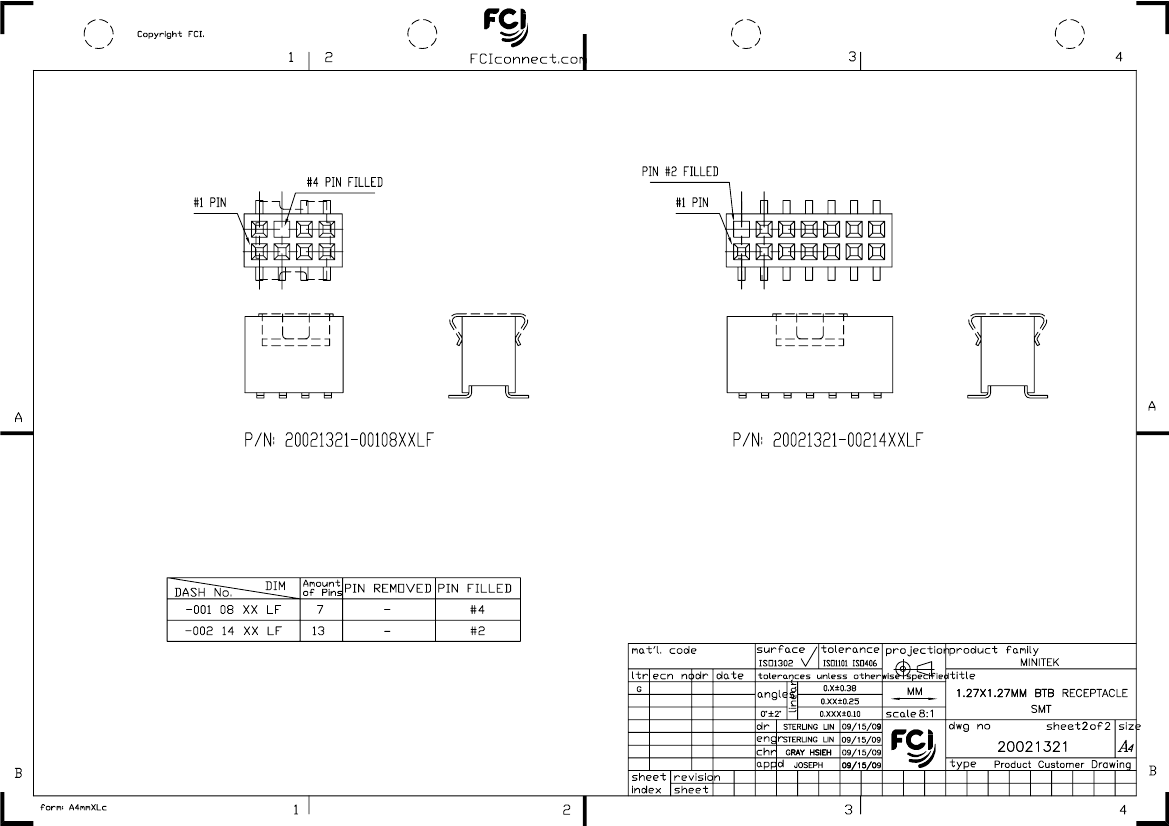

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP PLASTIC, UL94-V0,BLACK

TERMINAL: COPPER ALLOY , T=0.15MM

CAP: STAINLESS STEEL, T=0.1MM

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1.27um(50u")MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1420

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260°C

PEAK TEMP. FOR 10 SEC. IN A CONVECTION INFRA-RED

OR VAPOR PHASE REFLOW.

5. PRODUCT NUMBERING:

20021321 - 0 0 X XX X X LF

LEAD FREE

PLATING:

1:GOLD FLASH ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U")GOLD AT CONTACT

9:1u" GOLD OVER 30u" PdNi AT CONTACT

PACKING

D: TUBE + CAP

T: TUBE

C: REEL + CAP (6,8,10,12,16,20,40,72P)

PIN COUNT

06,08,10,..., 98,A0

( EVERY EVEN PIN )

SELECTED LOADED OPTION

0: FULLY LOADED

1: SEE TABLE 1

PDS: Rev :G

STATUS:Released

Printed: May 14, 2012
