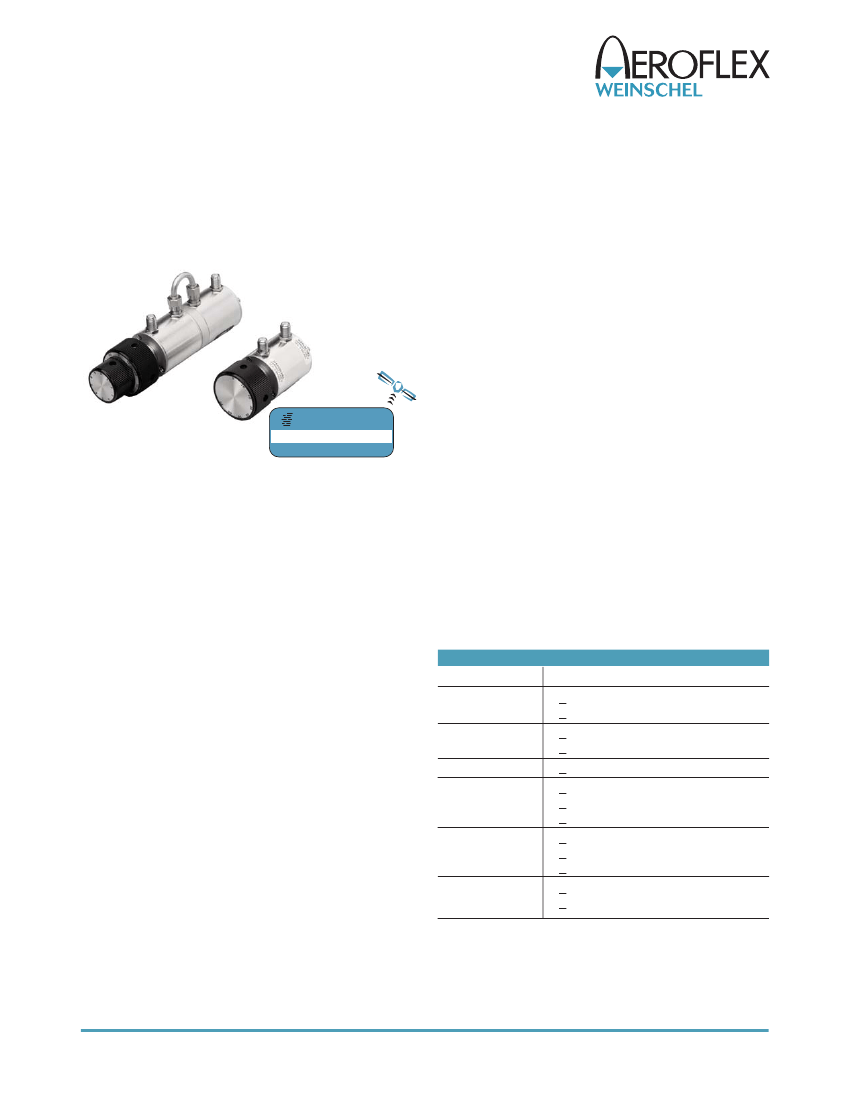

Variable Attenuators
Models 3003, 3006, 3007, 3010, & 3014
Models 3053 & 3054
Manual Step Attenuators
Rugged SMA Connector
Specifications
NOMINAL IMPEDANCE: 50
Ω
FREQUENCY RANGE:
FREQUENCY RANGE:
Models 3006, 3014:
dc to 1.25 GHz
Models 3003, 3007, 3010:
dc to 2.5 GHz
Models 3053, 3054:
dc to 6.0 GHz
INCREMENTAL ATTENUATION RANGE/STEPS:
Model 3003:
0-70 dB in 10 dB steps
Model 3006:
0-100 dB in 10 dB steps
Model 3007:
0-10 dB in 1 dB steps
Model 3010:
0-70 dB in 1 dB steps
Model 3014:
0-110 dB in 1 dB steps
Model 3053:
0-10 dB in 1 dB steps
Model 3054:
0-70 dB in 1 dB steps
POWER COEFFICIENT:
< 0.006 dB/dB/watt
TEMPERATURE COEFFICIENT:
0.0004 dB/dB/ °C
TEMPERATURE RANGE:
Operating:
-40°C to +65°C
Non-Operating: -54°C to +85°C
POWER RATING:
1 watts
average
@ 25°C ambient
temperature, derated linearly to 0 watts @ 65°C. 100 watts
peak
(5
μsec
pulse width; 0.5 % duty cycle).
ATTENUATION ACCURACY:
Model
3003
3006
3007, 3053
3010
Accuracy
+ 0.3 dB or 1% up to 60 dB
+ 2% to 70 dB
+ 0.3 dB or 1% up to 60 dB
+ 2% to 100 dB
+ 0.3 dB
+ 0.3 dB up to 10 dB
+ 0.3 dB or 1.5% to 60 dB
+ 2 % to 70 dB
+ 0.3 dB up to 10 dB
+ 0.3 dB or 1.5% to 60 dB
+ 3% to 110 dB
+ 0.3 dB or 2% (dc to 3 GHz)
+ 0.3 dB or 3.5% (3 to 6 GHz)
dc to 2.5 GHz
dc to 6.0 GHz
1 Watt
www.argosysales.com
800-542-4457
EXPRESS
Features
o
New Models -
Models 3053 & 3054 offer an extended
frequency range to 6 GHz.
o
Available
Express
Models:
3003-100
3010-100
3053-100
3054-100
Other models may be available for Express delivery.
o
High Reliability -
Repeatability better than 0.1 dB over
frequency range and life. Weinschel patented detent
mechanism, tested to 1,000,000 operations at +75°C,
operates dependably even down to -40°C.
o
Product Uniformity -
High volume fabrication tech-
niques, including injection molding, stamping,
broaching and thick film printing ensure a cost effective
and uniform product.
o
Low Frequency Sensitivity -
Typically 0.1 to 0.2 dB up
to 2.5 GHz.
o
Shock Resistant -
100% spring contact system with-
stands mechanical and thermal shock and eliminates
the need for epoxy or solder.
o
Wide Selection -
Wide choice of attenuation ranges
and increments in standard stock models. Single and
dual drum configurations available.
o
Knob Included -
Knobs for both single and dual drum
models are included with every attenuator. Characters
are screened on the face of the knob insert which is
coated with a clear layer of epoxy for protection.
3014
3054
Special Configurations
Some modifications to the basic configuration of the 3000
Series can be made during manufacturing. Examples of
these special configurations are shafts having special
lengths and ends; clockwise shaft rotation; modified mount-
ing arrangements; and provisions for add-on items such as
concentric potentiometer and ganged switches.
CONNECTOR:
SMA female connector per MIL-STD-348
interface dimensions - mate nondestructively with
MIL-C-39012 connector.
68
5305 Spectrum Drive, Frederick, MD 21703-7362 TEL: 301-846-9222, 800-638-2048 Fax: 301-846-9116
web: www.aeroflex.com/weinschel email: weinschel-sales@aeroflex.com
Revision Date: 2/16/09
Variable Attenuators
Specifications-Con’t
SHAFT ROTATION:
counter clockwise for increasing
attenuation
STEP ANGLE:
32.7°
DRUM CONFIGURATIONS:
Single Drum:
3003, 3006, 3007, 3053
Dual Drum:
3010, 3014, 3054
MAXIMUM SWR & ZERO INSERTION LOSS:
Model
3003
3006
3007
3010
3014
3053
3054
Frequency (GHz)
dc - 2.5
dc - 1.25
dc - 2.5
dc - 2.5
dc - 1.25
dc - 3.0
3.0 - 6.0
dc - 3.0
3.0 - 6.0
SWR
1.20
1.20
1.30
1.35
1.30
1.30
1.40
1.30
1.55
Loss (dB)
<
<
<
<
<
0.3
0.2
0.3
0.7
0.5
SWITCHING LIFE:
1,000,000 steps
REPEATABILITY:
+0.1 dB over frequency range and rated
life
ROTATION STOPS:
Supplied on 10 dB step drums (not
supplied on 1 dB drums).
INCREMENTAL PHASE SHIFT:
~0.25° per dB x f(GHz)
CONSTRUCTION:
Shafting and external hardware and
connector shells: CRES Type 303, per ASTM-A582
passivated per QQ-P-35. Housing: AL ALLOY Gold Flash.
Knob is included with each unit.
TEST DATA:
Test data is available at additional cost.
WEIGHT:
Single drum:
Net 125 g (4.4 oz)
Dual drum:
Net 201 g (9.9 oz)
MODEL NUMBER DESCRIPTION:
Example:
< 0.3
< 0.7
< 0.8
< 1.3
3010 - 100
Basic Model
Number
Additional Options no longer
available. Add -100 Only!

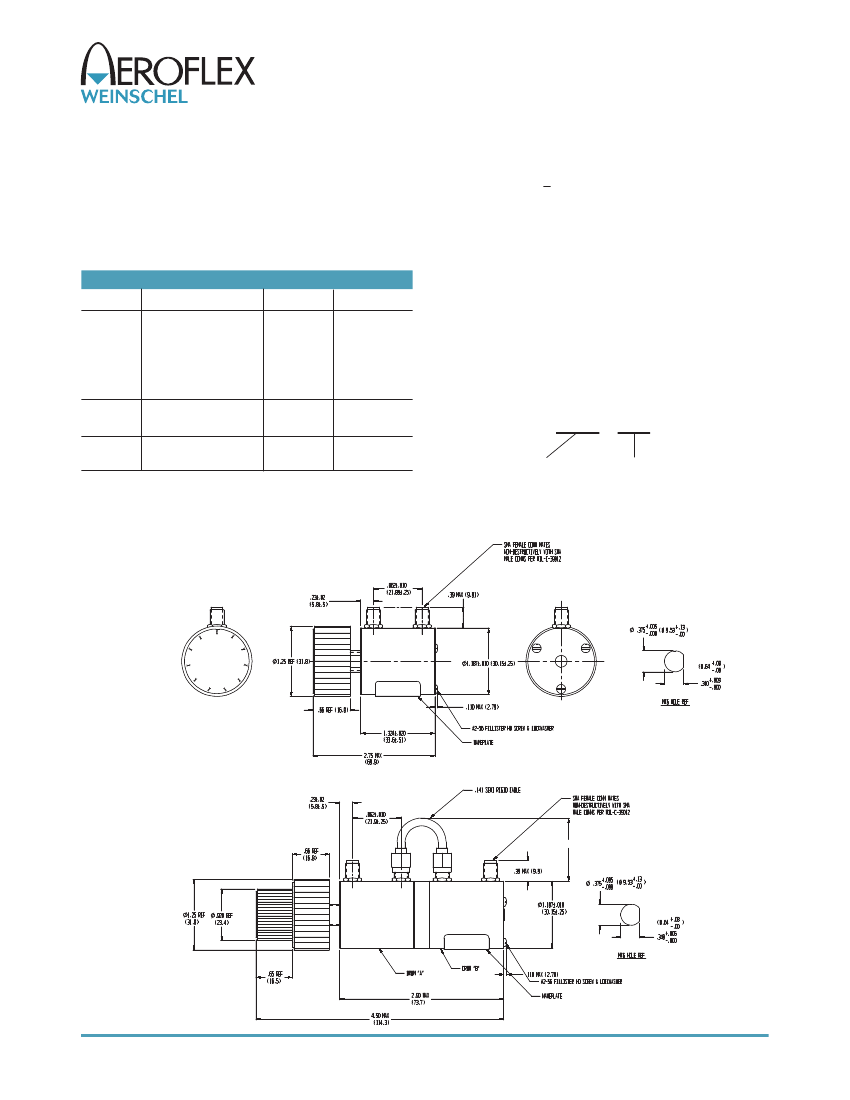

PHYSICAL DIMENSIONS:
SINGLE DRUM
DUAL DRUM
1.10 MAX (27.94)
69
