118
Terminal blocks
A

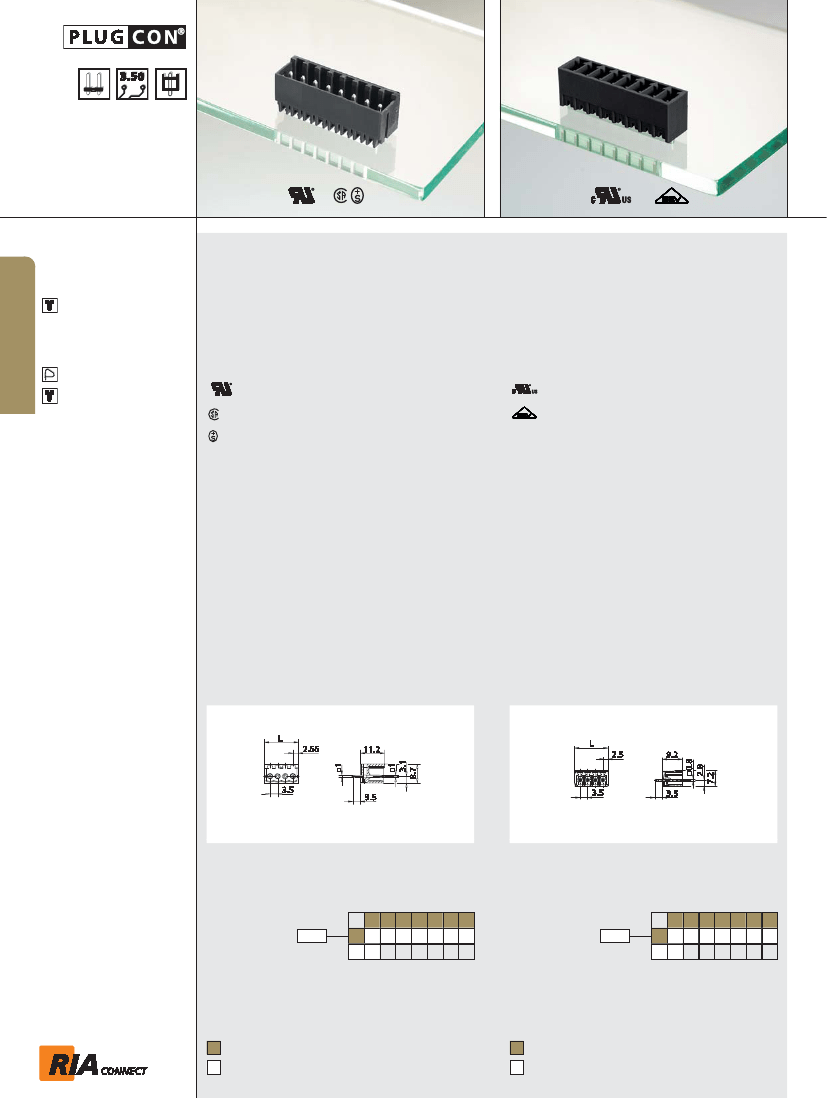

Type 183
Header, centerline 3.5 mm / 0.138 inches, vertical
mounting, square contact pins 1 mm / 0.039 inches,
closed ends, codable
Type 343
Header, centerline 3.5 mm / 0.138 inches, vertical
mounting, square contact pins 0,8 mm / 0.039 inches,
closed ends, codable
to
Type 183
Type 169
page 86
to
Type 343
ASP043
Type 339
page 44
page 86
Technical Data
V/A
V/A
300 / 10
300 / 10
125 V / 2.5 kV / 10 A
page 205
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.5 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
1.0 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.5 mm
Pole size
2 - 18
Color
black
Technical Data
V/A
300 / 10
130 V / 2.5 kV / 12 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
0.8*0.8 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.5 mm
Pole size
2 - 12
Color
black
Accessories
for
Type 183
Coding set
720243
for
Type 343
Coding set
720293
page 204
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5.1 mm / 0.201 inches
L = (pole size - 1) x centerline + 5 mm / 0.196 inches
Part numbers (P/N)
Type 183
centerline 3.5 mm / 0.138 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 343
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18
centerline 3.5 mm / 0.138 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18
P/N
311831
P/N
313431
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
