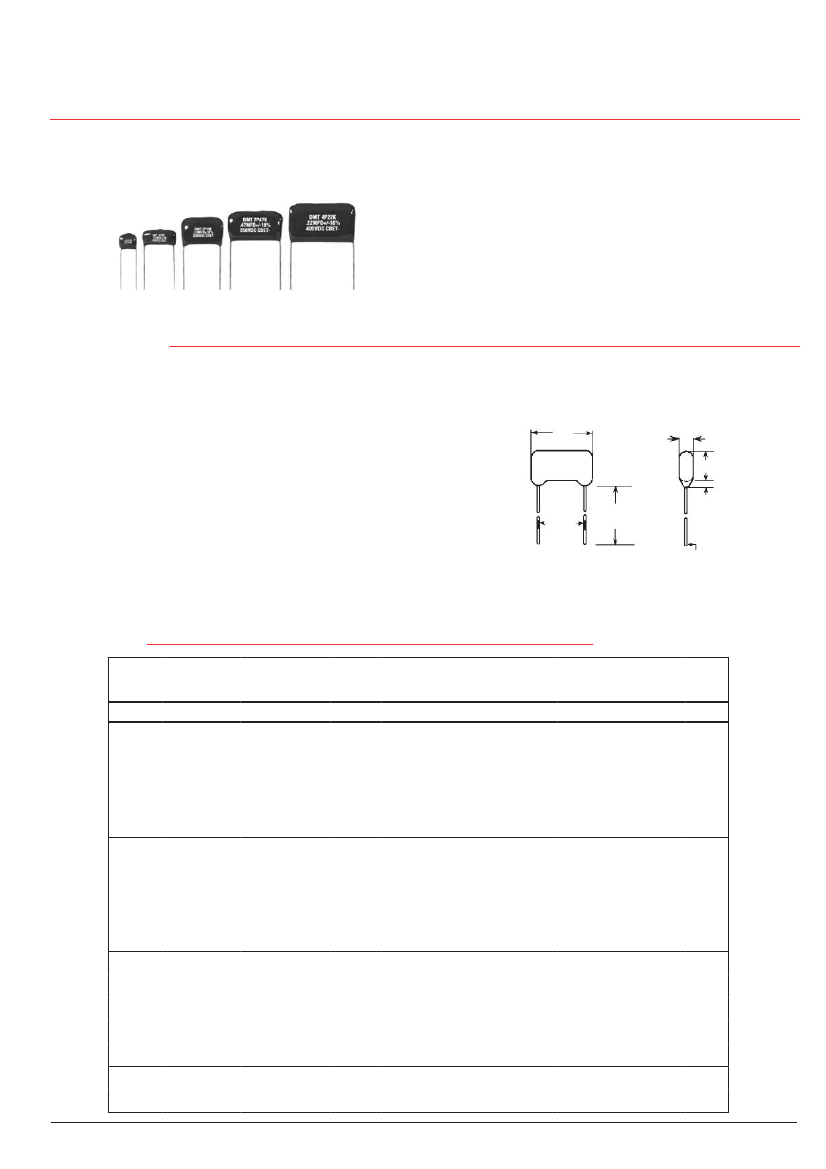

Type DMT,
Polyester Film Capacitors
Film/Foil
Radial Leads
General Purpose, High Peak Currents,
High Insulation Resistance
Type DMT
radial-leaded, polyester film/foil
noninductively wound film capacitors feature
compact size and moisture-resistive epoxy
coating. High insulation resistance and low
dissipation factor,
Type DMT
is an ideal choice
for most applications, especially with high peak
currents.
Specifications
Voltage Range:
100-600 Vdc (65-250 Vac, 60 Hz)
Capacitance Range:
.001-.68 µF
Capacitance Tolerance:
±10% (K) standard
*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C
±5% (J) optional
Operating Temperature Range:
-55 °C to 125 °C*
L
MAX.
T
MAX.
H
MAX.
.984 MIN.
(25)
.0937 MAX.
Dielectric Strength:
250% (1 minute)
Dissipation Factor:
1% Max. (25 °C, 1 kHz)
Insulation Resistance:
30,000 M
Ω
x µF
100,000 M
Ω
Min.
Life Test:
500 Hours at 85 °C at 125% Rated
Voltage
S
±.050
d
TINNED COPPER-CLAD
STEEL LEADS
NOTE:
Other capacitance values, sizes and performance specifications are
available. Contact us.
Ratings
Cap.
(µF)
Catalog
Part Number
Inches
T
(mm)
H
Inches
(mm)
Inches
L
(mm)
Inches
S
(mm)
100 Vdc (65 Vac)
0.0010 DMT1D1K-F
0.0015 DMT1D15K-F
0.0022 DMT1D22K-F
0.0033 DMT1D33K-F
0.0047 DMT1D47K-F
0.0068 DMT1D68K-F
0.0100 DMT1S1K-F
0.0150 DMT1S15K-F
0.0220 DMT1S22K-F
0.0330 DMT1S33K-F
0.0470 DMT1S47K-F
0.0680 DMT1S68K-F
0.1000 DMT1P1K-F
0.1500 DMT1P15K-F
0.2200 DMT1P22K-F
0.3300 DMT1P33K-F
0.4700 DMT1P47K-F
0.197
0.200
0.210
0.210
0.210
0.210
0.220
0.220
0.256
0.250
0.260
0.275
0.290
0.350
0.360
0.390
0.420
(5.0)
(5.1)
(5.3)
(5.3)
(5.3)
(5.3)
(5.6)
(5.6)
(6.5)
(6.3)
(6.6)
(7.0)
(7.4)
(8.9)
(9.1)
(9.9)
(10.7)
0.354
0.354
0.354
0.354
0.354
0.354
0.354
0.370
0.390
0.350
0.433
0.460
0.445
0.490
0.520
0.560
0.600
(9.0)
(9.0)
(9.0)
(9.0)
(9.0)
(9.0)
(9.0)
(9.4)
(9.9)
(8.9)
(11.0)
(11.7)
(11.3)
(12.4)
(13.2)
(14.2)
(15.2)
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.560
0.560
0.560
0.682
0.682
0.820
0.942
1.080
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(14.2)
(14.2)
(14.2)
(17.3)
(17.3)
(20.8)
(23.9)
(27.4)
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.400
0.420
0.420
0.545
0.545
0.670
0.795
0.920
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.2)
(10.7)
(10.7)
(13.8)
(13.8)
(17.0)
(20.2)
(23.4)
RoHS Compliant
d
Inches
(mm)
dV/dt
V/μs
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
4550
4550
4550
4550
4550
4550
4550
4550
4550
3300
3300
3300
2100
2100
1600
1600
1050
