125
Terminal blocks
to
Type 390
and
Type 392
ASP084
Type 379
page 46
page 87

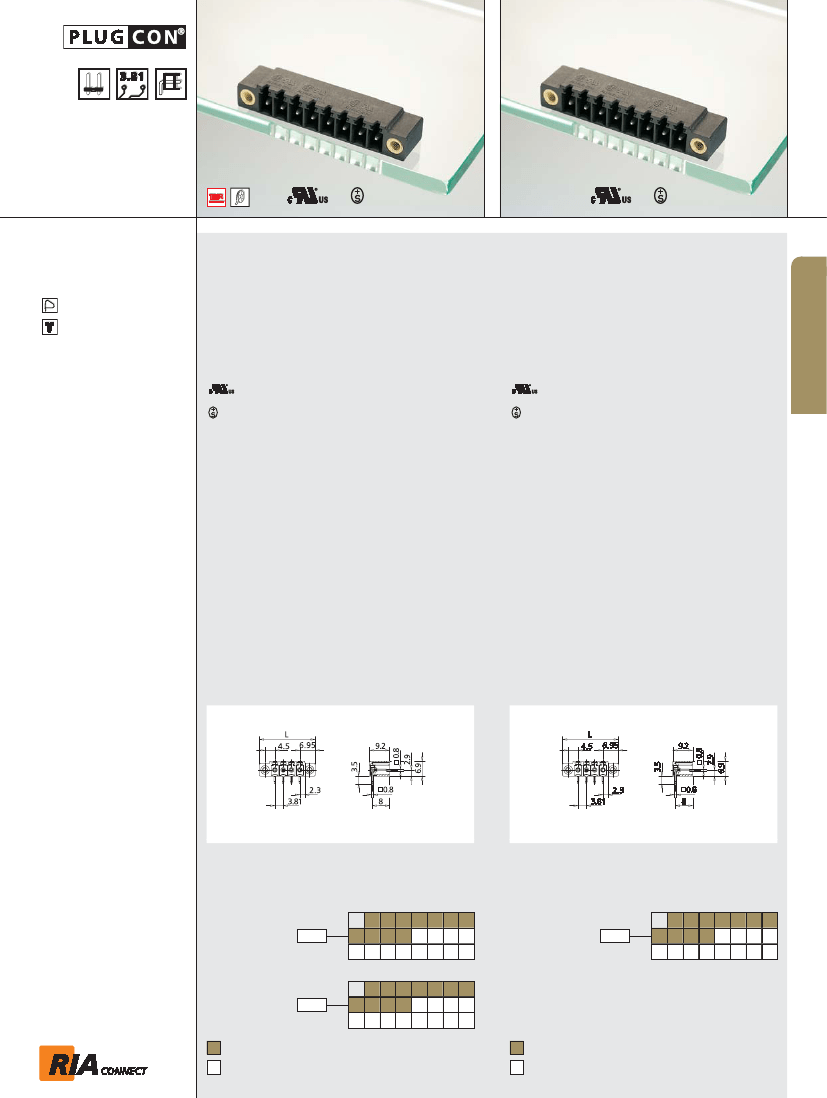

Type 390
Header, centerline 3.81 mm / 0.150 inches, horizontal
mounting, mounting flange, square contact pins
0.8 mm / 0.031 inches, closed ends, codable, designed
for THR, optional Tape on Reel packaging for automat-
ed processing
Type 392
Header, centerline 3.81 mm / 0.150 inches, horizontal
mounting, mounting flange, square contact pins
0.8 mm / 0.031 inches, closed ends, codable
A
Accessories
for
Type 392
Coding set
720293
page 204
Technical Data
V/A
300 / 8
160 V / 2.5 kV / 8 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.01 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
0.8 x 0.8 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.5 mm
Pole size
2 - 16
Color
black
Technical Data
V/A
300 / 8
160 V / 2.5 kV / 8 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.01 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Solder pin dimension
0.8 x 0.8 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.5 mm
Pole size
2 - 24
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 13.95 mm / 0.550 inches
L = (pole size - 1) x centerline + 13.95 mm / 0.550 inches
Part numbers (P/N)
Type 390
centerline 3.81 mm / 0.150 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 392
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
centerline 3.81 mm / 0.150 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
313901
Type 390
centerline 7.62 mm / 0.3 inches
P/N
313921
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
313902
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
