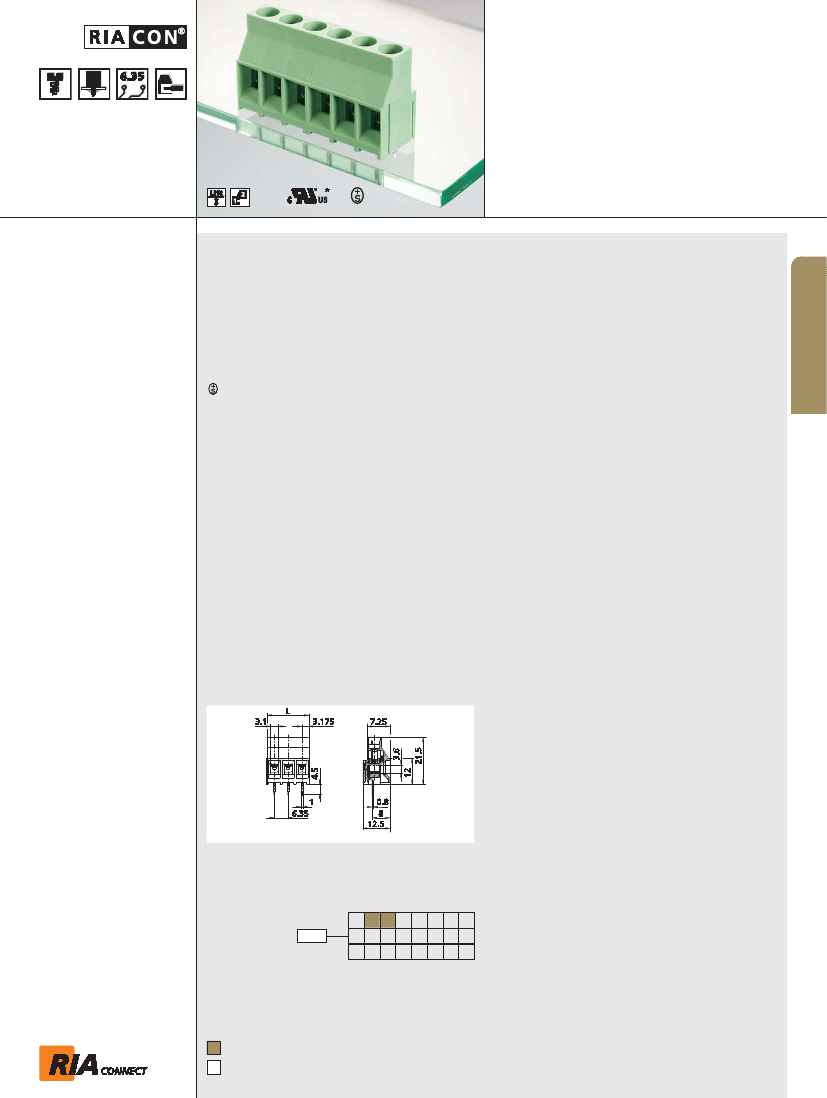

Type 701
Screw type terminal block, solderable, centerline
6.35 mm / 0.250 inches, horizontal wire entry, lift
system, modular
A
Technical Data
0.12 - 4 mm²
450 V / 6 kV / 24 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 5 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
400
1000 1000
Rated test voltage
4
8
6
Protection category according
to IEC 529
IP20
Tightening torque UL
5.3 lb-in max.
Min. insul. strip length
7 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
4.5 mm
Pole size
2-3
Color
green
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 6.35 mm / 0.250 inches
Part numbers (P/N)
Type 701
centerline 6.35 mm / 0.250 inches
(information: page 56)
Complete the part number by
adding the pole size.
02 03
P/N
317011
* approval pending
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
