50326-0061N-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 50326-0061N-001

50326-0061N-001: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size227KB，2 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

50326-0061N-001 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

50326-0061N-001 Parametric

Parameter Name	Attribute value
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
body width	0.291 inch
subject depth	0.331 inch
body length	0.689 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Durability	50 Cycles
maximum insertion force	19.5712 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	50326
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

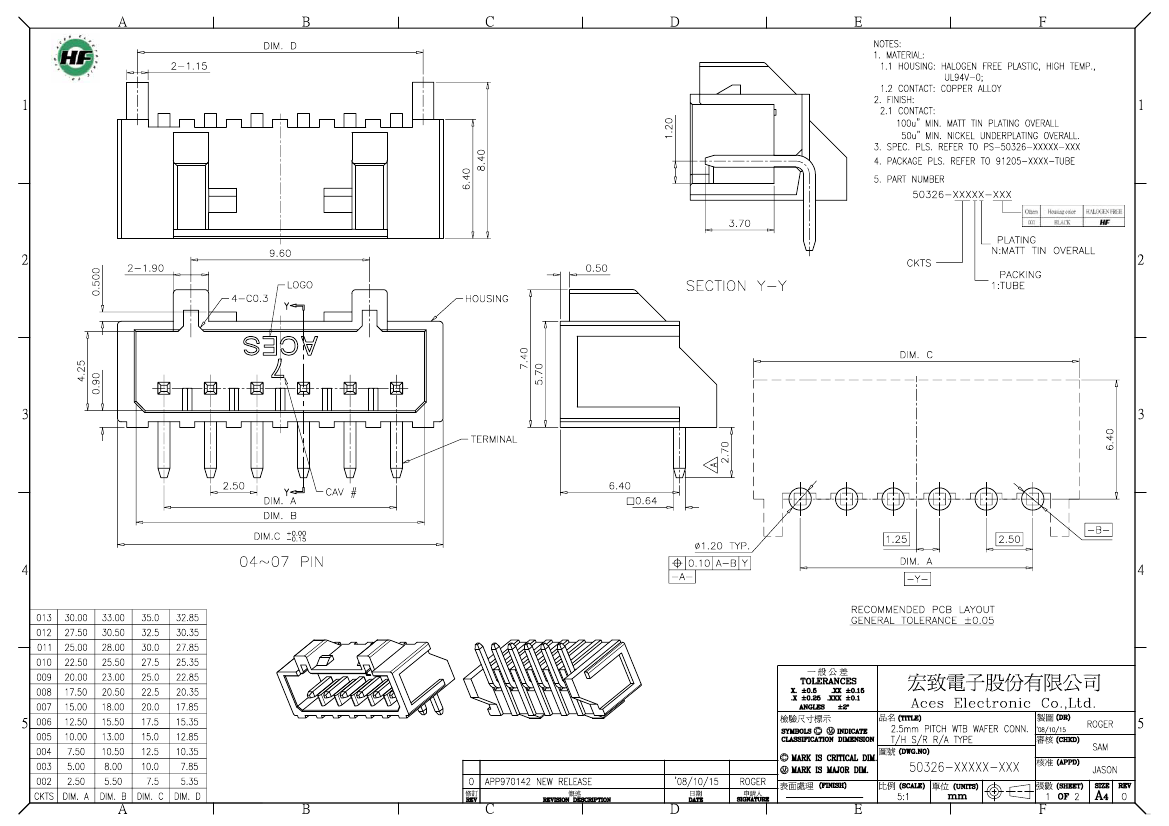

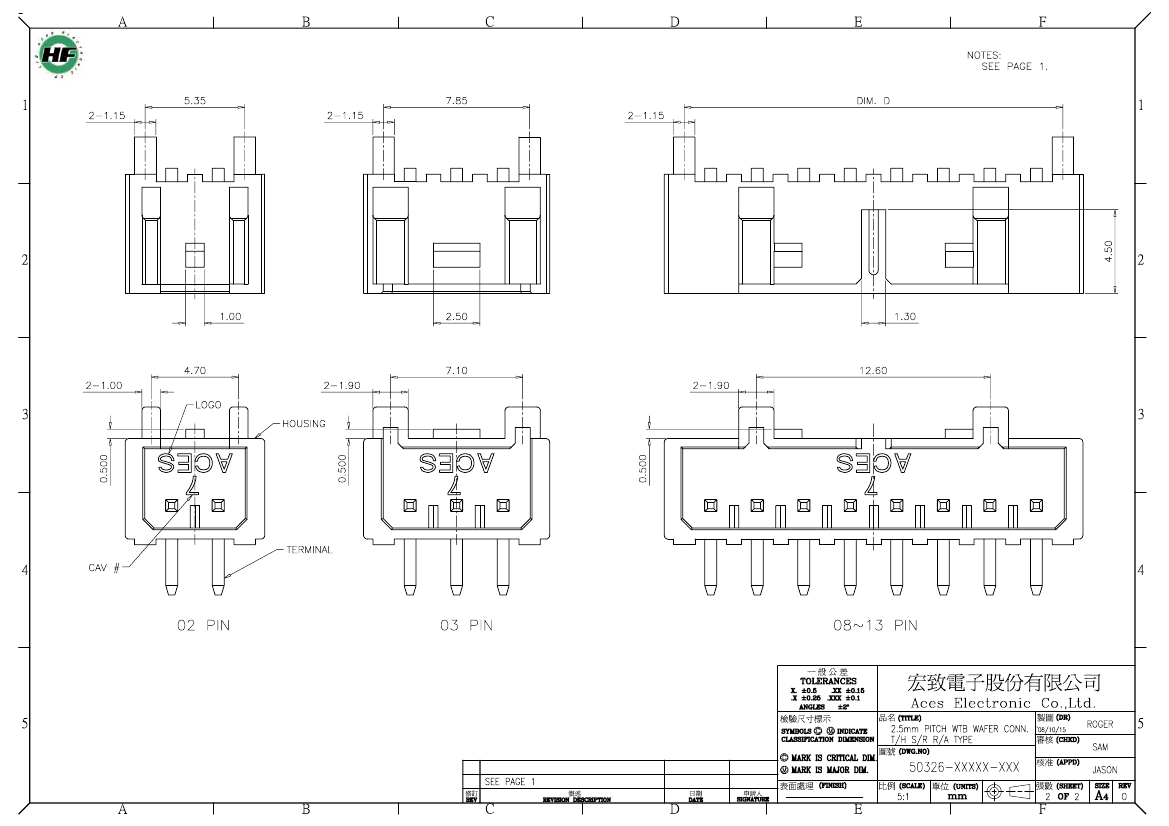

Preview

Download Datasheet

View All

50326-0061N-001 Related Products

	50326-0061N-001	50326-0031N-001	50326-0021N-001	50326-0111N-001	50326-0041N-001	50326-0091N-001	50326-0051N-001	50326-0081N-001
Description	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
Maker	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch
subject depth	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch
body length	0.689 inch	0.394 inch	0.295 inch	1.181 inch	0.492 inch	0.984 inch	0.591 inch	0.886 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Manufacturer's serial number	50326	50326	50326	50326	50326	50326	50326	50326
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	3	2	11	4	9	5	8
Base Number Matches	1	1	1	1	1	1	1	1
