EMC filters
3-line filters
for converters and power electronics
Series/Type:
Date:
B84143B*S020/S021/S024
May 2014
© EPCOS AG 2014. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
3-line filters
for converters and power electronics
B84143B*S020/S021/S024
Power line filters for 3-phase systems
Rated voltages V
R
: 530/310 V AC, 690/400 V AC and
760/440 V AC
Rated current I
R
: 150 A to 2500 A
Alternative version
Series B84143B*S080 and B84143B*S081
offer cost-optimized solutions.
Construction
3-line filters
Metal case
Features
Optimized leakage current
Easy to install
Very compact design
Optimized for operation under full load
Low weight
UL and cUL approval
Typical applications
B84143B*S024 for IT mains supply
Frequency converters for motor drives
Wind farms
Power supplies
Terminals
Busbars
Marking
Marking on component:
Manufacturer's logo, ordering code, rated voltage, rated
current, rated temperature, climatic category, date code,
approvals
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
Accessories
For busbar filter series B84143B*S020 ... S024
protective covers can be supplied as accessories.
See chapter "Accessories" B84143Q*S020.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 16
3-line filters
for converters and power electronics
B84143B*S020/S021/S024
Typical circuit diagram
Technical data and measuring conditions
Rated voltage V
R
Type S020:
530/310 V AC (50/60 Hz)
Type S021:
760/440 V AC (50/60 Hz )
Type S024:
690/400 V AC (50/60 Hz )
Filters for IT mains supply. See also chapter "General
technical information", section 7.
Referred to 40
°C
rated temperature
According IEC 60439-1: 2011, Kapitel 3.8.10.2, limited by
I
2
t characteristics of fuse
Type S020:
2280 V DC, 2 s (line/line)
2690 V DC, 2 s (lines/case)
Type S021:
3270 V DC, 2 s (line/line)
2890 V DC, 2 s (lines/case)
Type S024:
2980 V DC, 2 s (line/line)
2890 V DC, 2 s (lines/case)
1.5 I
R
for 3 min per hour or
2.5 I
R
for 30 s per hour
At V
R
and 50 Hz
25/100/21 ( 25
°C/+100 °C/21
days damp heat test)
UL 1283; CSA C22.2 No.8
(Type S020: 500/290 V; Type S021 and S024: 600/350 V)
Rated current I
R
Rated peak withstand current I
PK
Test voltage V
test
Overload capability (thermal)
Leakage current l
LK
Climatic category (IEC 60068-1)
Approvals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 16
3-line filters
for converters and power electronics
B84143B*S020/S021/S024
Characteristics and ordering codes
I
R
A
I
pk
kA
I
LK
mA
R
typ
mΩ
0.140
0.140
0.063
0.067
0.067
0.052
0.033
0.022
0.015
0.140
0.140
0.063
0.067
0.067
0.052
0.033
0.022
0.015
0.140
0.140
0.063
0.067
0.067
0.052
0.033
0.022
0.015
Approx.
weight
kg
13
13
15
21
21
22
28
34
105
13
13
15
21
21
22
28
34
105
13
13
15
21
21
22
28
34
105
Ordering code
Approvals
V
R
= 530/310 V AC
150
25
13
180
25
13
250
25
13
320
50
13
400
50
13
600
50
13
1000
75
13
1600
75
13
2500
100
13
V
R
= 690/400* V AC
150
25
16
180
25
16
250
25
16
320
50
17
400
50
17
600
50
17
1000
75
17
1600
75
17
2500
100
17
V
R
= 760/440 V AC
150
25
18
180
25
18
250
25
18
320
50
19
400
50
19
600
50
19
1000
75
19
1600
75
19
2500
100
19
B84143B0150S020
B84143B0180S020
B84143B0250S020
B84143B0320S020
B84143B0400S020
B84143B0600S020
B84143B1000S020
B84143B1600S020
B84143B2500S020
B84143B0150S024
B84143B0180S024
B84143B0250S024
B84143B0320S024
B84143B0400S024
B84143B0600S024
B84143B1000S024
B84143B1600S024
B84143B2500S024
B84143B0150S021
B84143B0180S021
B84143B0250S021
B84143B0320S021
B84143B0400S021
B84143B0600S021
B84143B1000S021
B84143B1600S021
B84143B2500S021
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
= Approval granted:
Type S020 for 500/290 V
Type S021 and S024 for 600/350 V
* Filters for IT mains supply (see also chapter "General technical information", section 7).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 16
3-line filters
for converters and power electronics
B84143B*S020/S021/S024

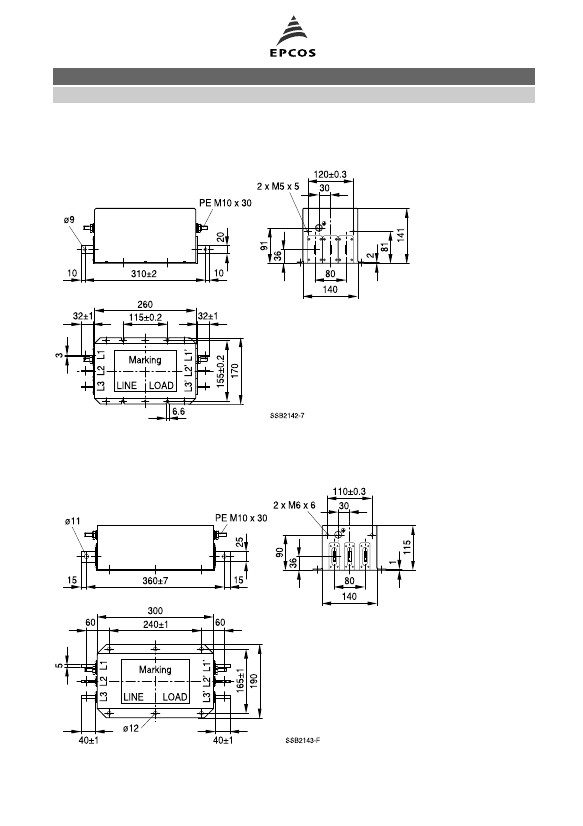

Dimensional drawings
B84143B0150S02*, B84143B0180S02* (150 A, 180 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
B84143B0250S02* (250 A)
General tolerances according to ISO 2768 cL
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 16
