32JR115-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 32JR115-3

32JR115-3: DescriptionRF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

32JR115-3 Overview

RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle

32JR115-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Amphenol
Reach Compliance Code	unknown
Other features	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	PTFE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SMB
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.41
Base Number Matches	1

Preview

Download Datasheet

View All

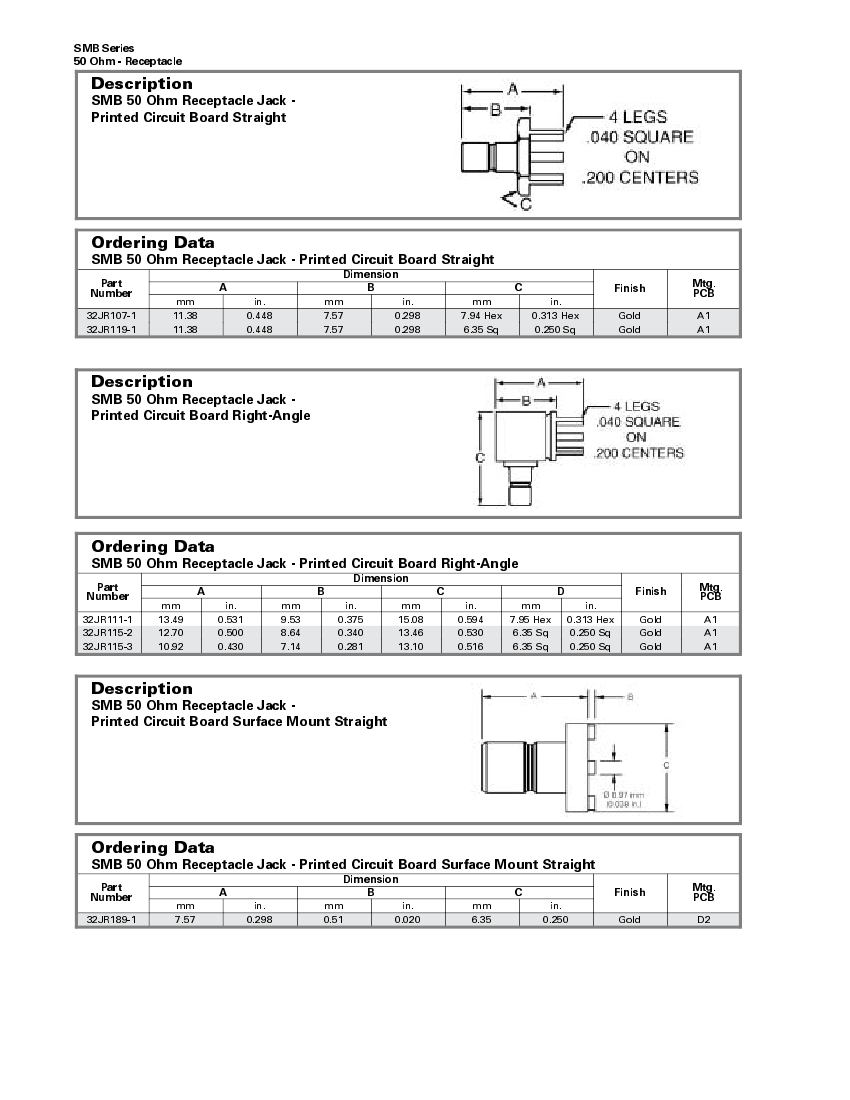

SMB Series

50 Ohm - Receptacle

Description

SMB 50 Ohm Receptacle Jack -

Printed Circuit Board Straight

SMB Series

50 Ohm - Receptacle

RF/Coaxial

Ordering Data

32JR107-1

32JR119-1

Part

Number

SMB 50 Ohm Receptacle Jack - Printed Circuit Board Straight

11.38

in.

0.448

7.57

Dimension

in.

0.298

7.94 Hex

6.35 Sq

in.

0.313 Hex

0.250 Sq

Finish

Gold

Mtg.

PCB

Description

SMB 50 Ohm Receptacle Jack -

Printed Circuit Board Right-Angle

Ordering Data

32JR111-1

32JR115-2

32JR115-3

Part

Number

SMB 50 Ohm Receptacle Jack - Printed Circuit Board Right-Angle

13.49

12.70

10.92

in.

0.531

0.500

0.430

9.53

8.64

7.14

Dimension

in.

0.375

0.340

0.281

15.08

13.46

13.10

in.

0.594

0.530

0.516

in.

7.95 Hex 0.313 Hex

6.35 Sq 0.250 Sq

Finish

Gold

Mtg.

PCB

Description

SMB 50 Ohm Receptacle Jack -

Printed Circuit Board Surface Mount Straight

Ordering Data

32JR189-1

Part

Number

SMB 50 Ohm Receptacle Jack - Printed Circuit Board Surface Mount Straight

7.57

in.

0.298

0.51

Dimension

in.

0.020

6.35

in.

0.250

Finish

Gold

Mtg.

PCB

30-108

RF/Coaxial

32JR115-3 Related Products

	32JR115-3	32JR111-1	32JR119-1	32JR107-1	32JR115-2	32JR189-1
Description	RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle	RF SMB Connector, Male, Board Mount, Surface Mount Terminal, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ	INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB
insulator material	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	SMB	SMB	SMB	SMB	SMB	SMB
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SURFACE MOUNT
voltage standing wave ratio	1.41	1.41	1.41	1.41	1.41	1.41
Base Number Matches	1	1	1	1	1	1
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol
