PhaseCap™ HD
B25669-A3996-J375
MKK400-D-50-21
4RB5 500-5 AB 40
Characteristics
C
N
U
N
f
N
Q
N
I
N
tan
δ
0
∆
3x 332
AC 400
50
50
3x 72
µF ±5 %
V
Hz
kvar
A
Marking
60 Hz
60 kvar
*)
86 A
*)
*)
0,2 W/kvar (dielectric)
*) Temperature class deviation -40/B max. 45°C
Maximum ratings
U
max
The information in our data book / sheet describes the type of
component and shall not be considered as assured characteristics.
I
r(40)
I
s
(du/dt)
max
(du/dt)
s
AC 440
AC 520
3x 90
20
14
35
V, 8 h daily
V, 1 min
A (
Θ
A
= 40°C,
U
N
)
kA
V/µs
V/µs
Toothed washer DIN 6797-J13
Hex nut DIN 439-BM12
Test data
U
TT
U
TC
AC 900 V, 10 s
AC 3000 V, 10 s
Rivet
(Impregnating hole)
tan
δ
(50 Hz)
≤
0,4 W/kvar (total)
C61014-A0518-A001

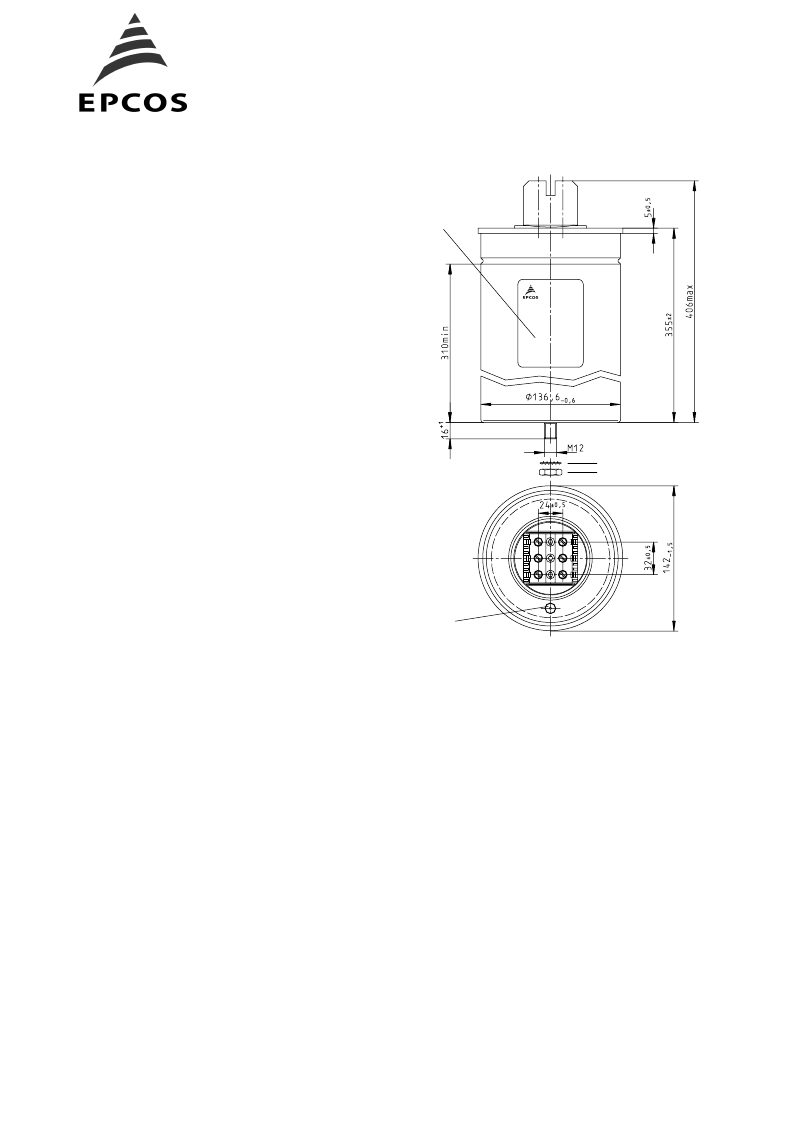

Dimensions in mm
Climatic category -40/D
Θ
min
Θ
max
Humidity
Θ
stg
–40 °C
+55 °C
Max. relative
Humidity
≤
95 %
–55 bis +70 °C
Design data
Dimensions Ø x l
Approx. weight
Impregnation
Fixing
Mounting hole
Max. torque
Terminals
Max. torque
Terminal cross section
Creepage distance
Clearance
Upright mounting position
142 x 355 mm (5,59 x 13,98 in)
4,7 kg (10,4 lb)
Gas
Threaded bolt M12
14 mm (0,55 in)
10 Nm
Isolated terminal, IP20
2,5 Nm
35 mm² (2 AWG)
15 mm (0,59 in)
12 mm (0,47 in)
Life expectancy
t
LD
100 000 h
Overpressure disconnector
Remarks
Natural cooling
IEC 60831-1/2, EN 60831-1/2, VDE 560-46/47
KO L E / Pe 17.12.1999
