PFC-D1206LF-02-1002-4002-BB datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PFC-D1206LF-02-1002-4002-BB

PFC-D1206LF-02-1002-4002-BB: DescriptionArray/Network Resistor, Divider, 0.25W, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size246KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PFC-D1206LF-02-1002-4002-BB Overview

Array/Network Resistor, Divider, 0.25W, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE

PFC-D1206LF-02-1002-4002-BB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
Component power consumption	0.125 W
The first element resistor	10000 Ω
JESD-609 code	e3
Manufacturer's serial number	PFC
Installation features	SURFACE MOUNT
Network Type	DIVIDER
Number of components	2
Number of functions	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE
Rated power dissipation(P)	0.25 W
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	40000 Ω
size code	1206
surface mount	YES
Temperature Coefficient	25 ppm/°C
Temperature coefficient tracking	5 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

TaNFilm

Precision Chip

Voltage Divider

PFC Divider Series

•

Popular 1206 Chip Size

5Ω to 150KΩ per resistor

Tested for COTS applications

Superior alternative to matched sets

Standard Sn/Pb and 100% tin (Pb-free) terminations available

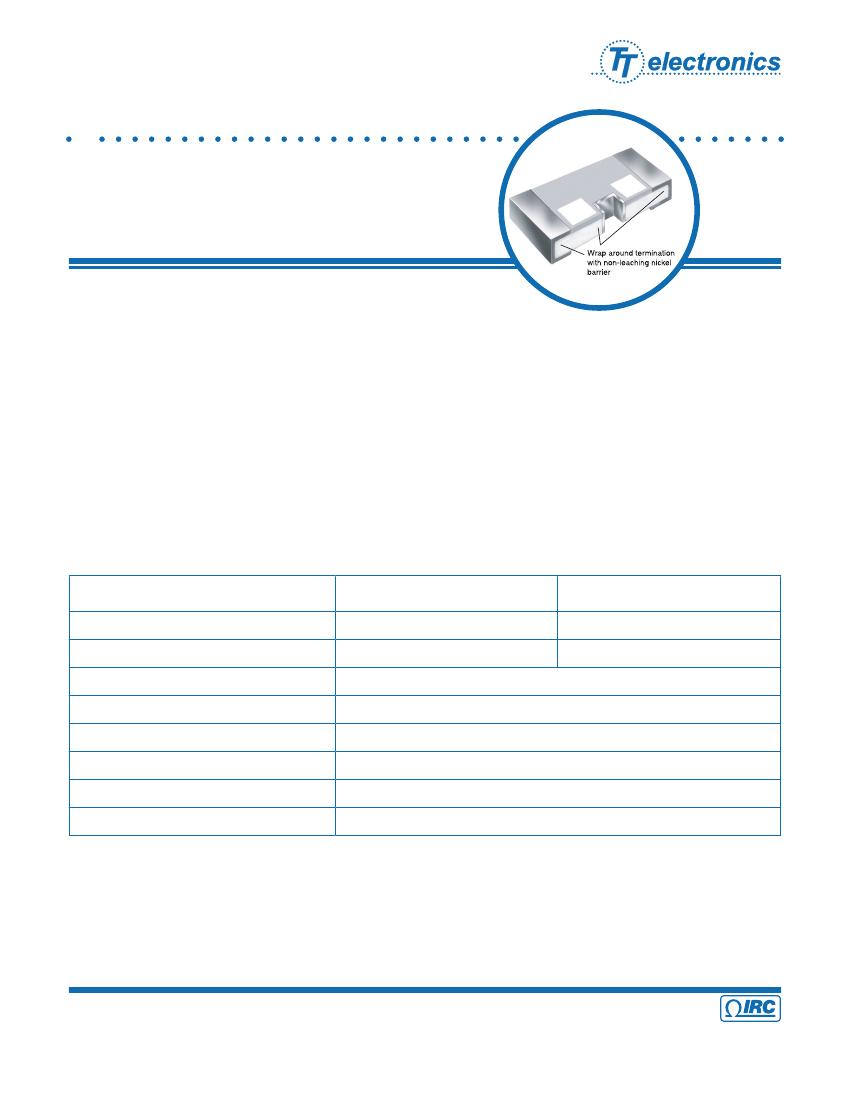

IRC now has a perfect voltage divider solution. Designed around the 1206 sized chip,

the PFC Divider series provides a single package solution that is compatible with your

automatic placement equipment. The ratio tolerance can be speciﬁed down to 0.05%* which is much tighter than the 0.2% achievable

from two individual 0.1% chip resistors. Similarly, the TCR tracking of 5 ppm/°C is far superior to the tracking obtainable from two

individual 25 ppm/°C chip resistors. IRC’s TaNFilm

Tantalum Nitride ﬁlm system provides superior environmental performance

while insuring long term life stability.

This dual element, monolithic package offers the advantages of reducing component quantities and board space while increasing

quality and reliability.

For a precision voltage divider network in a small package solution, specify IRC TaNFilm

PFC Dividers.

Electrical Data

Characteristic

Resistance Range

Power Rating

Absolute TCR

Tracking TCR

Maximum Voltage Rating

Operating Temperature Range

Noise

Termination

Each

Resistor

10 - 150KΩ

125mW

to ±25ppm/°C*

to ±5ppm/°C*

100 volts

-65°C to +150°C

Less than -25 db

60/40 Sn/Pb or 100% tin (Pb-free)

Total

Resistance

200KΩ

250mW

*Tighter Tolerance and Higher Resistance value available. Contact factory for more information

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

PFC Series Issue January 2009 Sheet 1 of 3

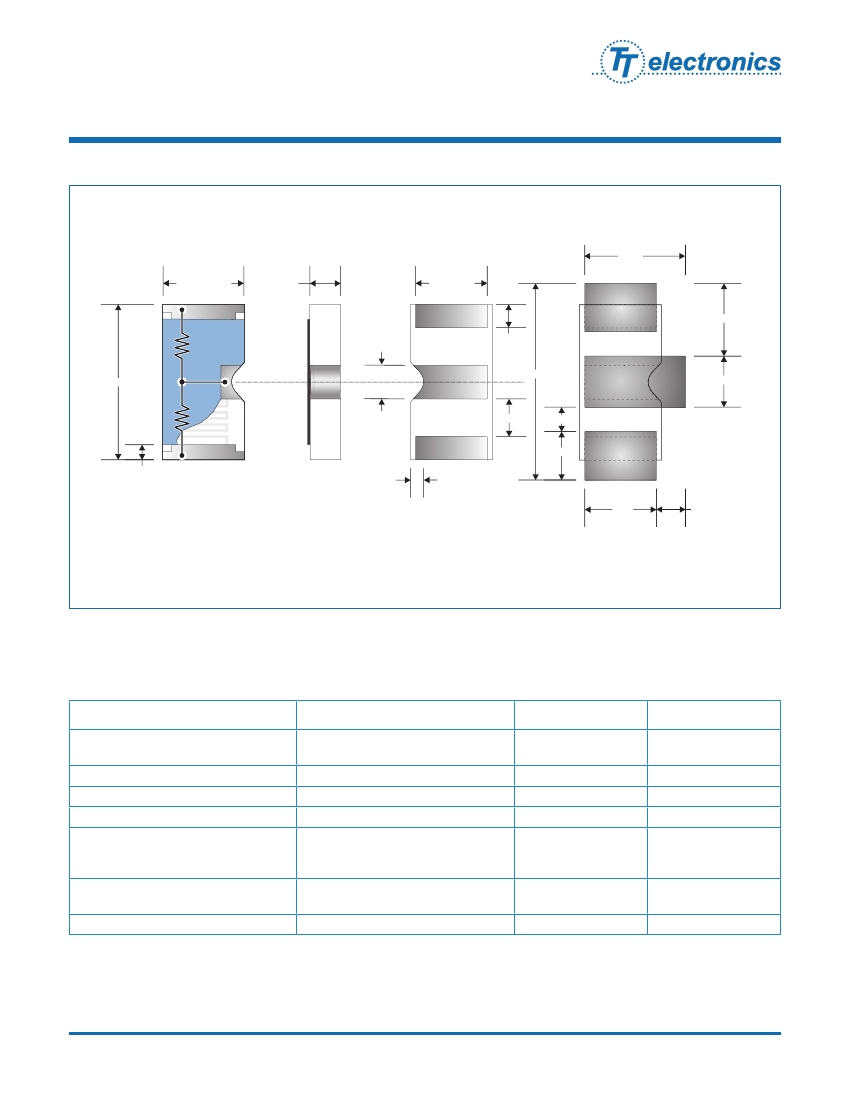

PFC-D1206LF-02-1002-4002-BB Related Products

	PFC-D1206LF-02-1002-4002-BB	PFC-D1206LF-03-6122-2442-FB	PFC-D1206LF-03-1083-7472-FB	PFC-D1206-03-2002-1002-BQ	PFC-D1206LF-03-6122-4882-FB
Description	Array/Network Resistor, Divider, 0.25W, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE	Array/Network Resistor, Divider, 0.25W, 100V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE	Array/Network Resistor, Divider, 0.25W, 100V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE	Array/Network Resistor, Divider, 0.25W, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP	Array/Network Resistor, Divider, 0.25W, 100V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE
Is it lead-free?	Lead free	Lead free	Lead free	Contains lead	Lead free
Is it Rohs certified?	conform to	conform to	conform to	incompatible	conform to
package instruction	, 1206	, 1206	, 1206	, 1206	CHIP, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PRECISION	PRECISION	PRECISION	PRECISION	PRECISION
Component power consumption	0.125 W	0.125 W	0.125 W	0.125 W	0.125 W
The first element resistor	10000 Ω	61200 Ω	108000 Ω	20000 Ω	61200 Ω
JESD-609 code	e3	e3	e3	e0	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Network Type	DIVIDER	DIVIDER	DIVIDER	DIVIDER	DIVIDER
Number of components	2	2	2	2	2
Number of functions	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TAPE	TAPE	TAPE	TAPE	TAPE
Rated power dissipation(P)	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
Second/last element resistor	40000 Ω	24400 Ω	74700 Ω	10000 Ω	48800 Ω
size code	1206	1206	1206	1206	1206
surface mount	YES	YES	YES	YES	YES
Temperature Coefficient	25 ppm/°C	25 ppm/°C	25 ppm/°C	25 ppm/°C	25 ppm/°C
Temperature coefficient tracking	5 ppm/°C	5 ppm/°C	5 ppm/°C	5 ppm/°C	5 ppm/°C
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	0.1%	1%	1%	0.1%	1%
Operating Voltage	100 V	100 V	100 V	100 V	100 V
Maker	TT Electronics plc	-	TT Electronics plc	TT Electronics plc	TT Electronics plc
Manufacturer's serial number	PFC	PFC	PFC	-	PFC
Base Number Matches	1	1	1	1	-
