SMHP35R47JT13: DescriptionRESISTOR, 2W, 5%, 100ppm, 0.47ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT; CategoryPassive components The resistor; File Size450KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

SMHP35R47JT13 Overview

RESISTOR, 2W, 5%, 100ppm, 0.47ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT

SMHP35R47JT13 Parametric

Parameter Name	Attribute value
Maker	TT Electronics plc
package instruction	, 4041
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
Rated power dissipation(P)	2 W
Rated temperature	25 °C
resistance	0.47 Ω
Resistor type	FIXED RESISTOR
size code	4041
surface mount	YES
Temperature Coefficient	100 ppm/°C
Terminal shape	GULL WING
Tolerance	5%
Operating Voltage	500 V
Base Number Matches	1

Preview

Download Datasheet

View All

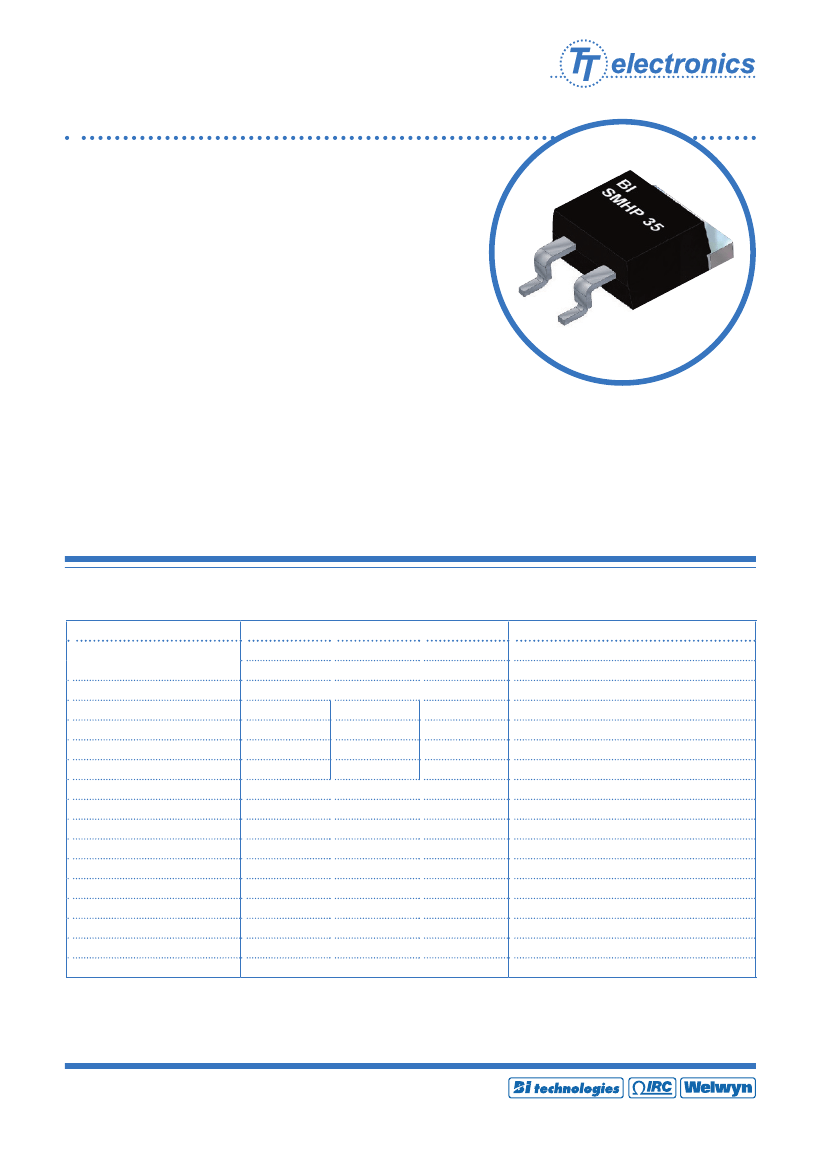

MODEL SMHP 35

SMHP 35 Series

•

35W High Power Resistors

•

TO-263 Surface Mount

•

RoHS Compliant.

•

Non-Inductive, Small, 35 watt high power resistor.

•

TO-263 surface mount package offering a very low

thermal resistance.

•

Small thin package for high density PCB installation.

•

Fully RoHS reflow profile compliant.

•

High frequency emitter resistors in switching

power supplies.

•

High precision CRT colour video amplifiers.

•

High frequency snubber and pulse handling circuits.

•

Pulse generator load resistors.

•

In-rush current protection.

•

Bleeder Resistors.

Electrical

ITEMS

Power Rating

Thermal Resistance

Resistance Range

Nominal Resistance Series

TCR (ppm/°C)

Tolerance

Operation Temperature Range

Maximum Operating Voltage

Dielectric Withstanding Voltage

Load Life

Humidity

Temperature Cycle

Soldering Heat (Max.)

Solderability

Insulation Resistance

Vibration

0.01 - 0.09Ω

250

±5%

SPECIFICATION

35 watt

2 watt

3.3°C/ W

0.1 - 9.1Ω

E24

100

±1% & ±5%

-55°C to +155°C

500V or

√PR

2000 Vdc

ΔR

= ±1% +0.5Ω

ΔR

= ±1% +0.5Ω

ΔR

= ±0.25% +0.5Ω

ΔR

= ±1% +0.5Ω

Minimum 90% Coverage

Over 1,000 MΩ

ΔR

= ±0.25% +0.5Ω

60 Seconds

25°C, 90 min ON, 30 min OFF, 1000 Hours

40°C, 90 - 95%RH,DC 0.1W, 1000 Hours

-55°C, 30 min, +155°C, 30 min, 5 cycles

350 ± 5°C, 3 seconds

230 ± 5°C, 3 seconds

Between Terminals and Tab

10 - 51KΩ

E24

±1%

Including 2.5Ω and 5.0Ω

For -55°C to +155°C

TEST CONDITIONS

-55°C to +25°C Flange Temperature

Without Heatsink

Resistor Hotspot to Flange

Notes:

1. Electrically isolated metal tab.

2. Contact Factory for custom products, non-standard values and tolerances

3. Current Rating: 25A Maximum.

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

04.12

SMHP35R47JT13 Related Products

	SMHP35R47JT13	SMHP35R43JT13	SMHP35R43FT13	SMHP35R47FT13	SMHP35362FT13	SMHP35	SMHP351R5JT13	SMHP35561FT13
Description	RESISTOR, 2W, 5%, 100ppm, 0.47ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 5%, 100ppm, 0.43ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 1%, 100ppm, 0.43ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 1%, 100ppm, 0.47ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 1%, 50ppm, 3600ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 1; 5%, 50; 100; 250ppm, 0.01ohm - 51000ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 5%, 100ppm, 1.5ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT	RESISTOR, 2W, 1%, 50ppm, 560ohm, SURFACE MOUNT, 4041, TO-263, ROHS COMPLIANT
package instruction	, 4041	, 4041	, 4041	, 4041	, 4041	, 4041	, 4041	, 4041
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W	NON INDUCTIVE, RATED CURRENT: 25A, POWER DISSIPATED USING HEATSINK: 35W
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH
Rated temperature	25 °C	25 °C	25 °C	25 °C	25 °C	25 °C	25 °C	25 °C
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	4041	4041	4041	4041	4041	4041	4041	4041
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Operating Voltage	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
Base Number Matches	1	1	1	1	1	1	1	1
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	-	-	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Number of terminals	2	2	2	2	2	-	2	2
Rated power dissipation(P)	2 W	2 W	2 W	2 W	2 W	-	2 W	2 W
resistance	0.47 Ω	0.43 Ω	0.43 Ω	0.47 Ω	3600 Ω	-	1.5 Ω	560 Ω
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	50 ppm/°C	-	100 ppm/°C	50 ppm/°C
Tolerance	5%	5%	1%	1%	1%	-	5%	1%
