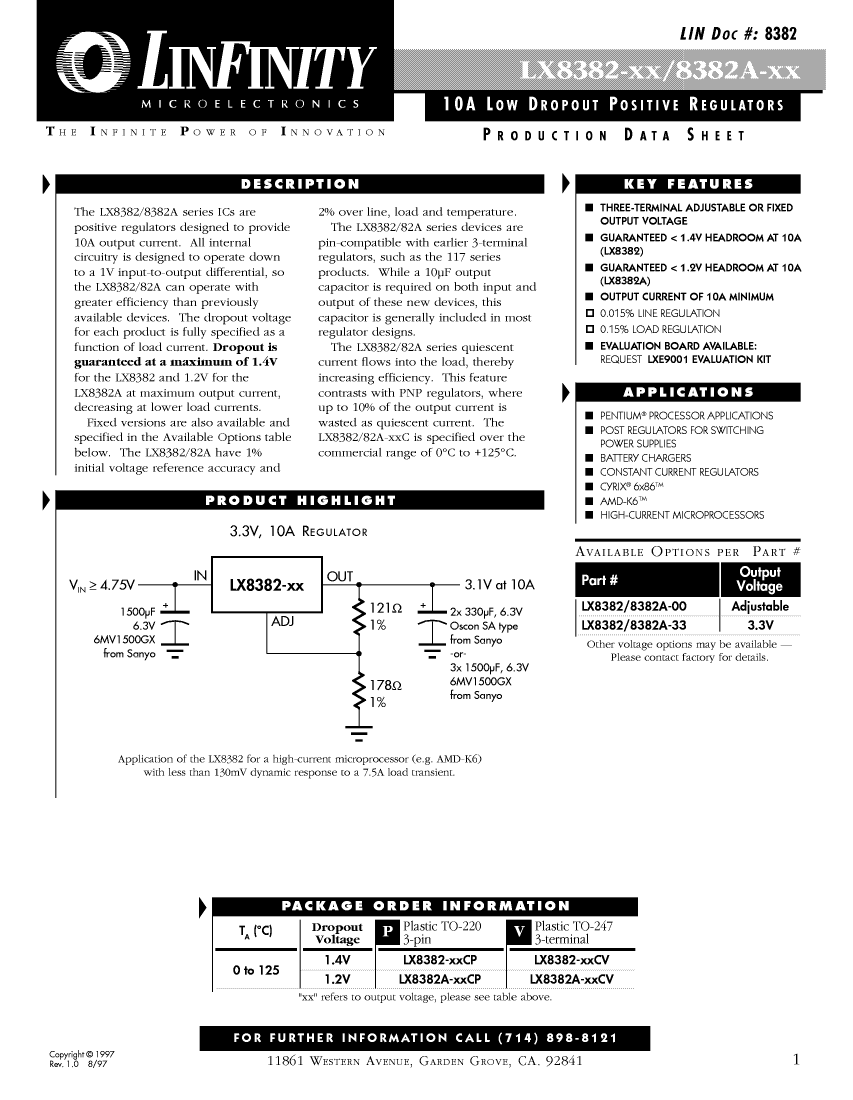

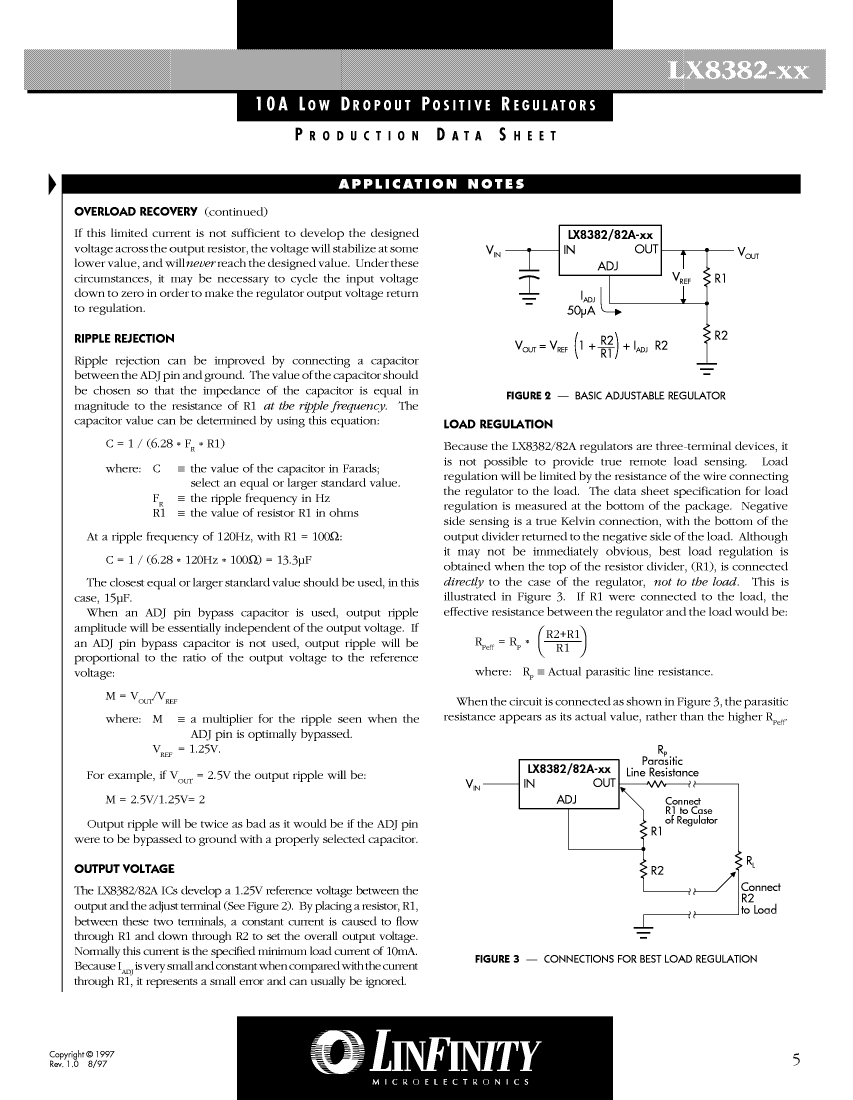

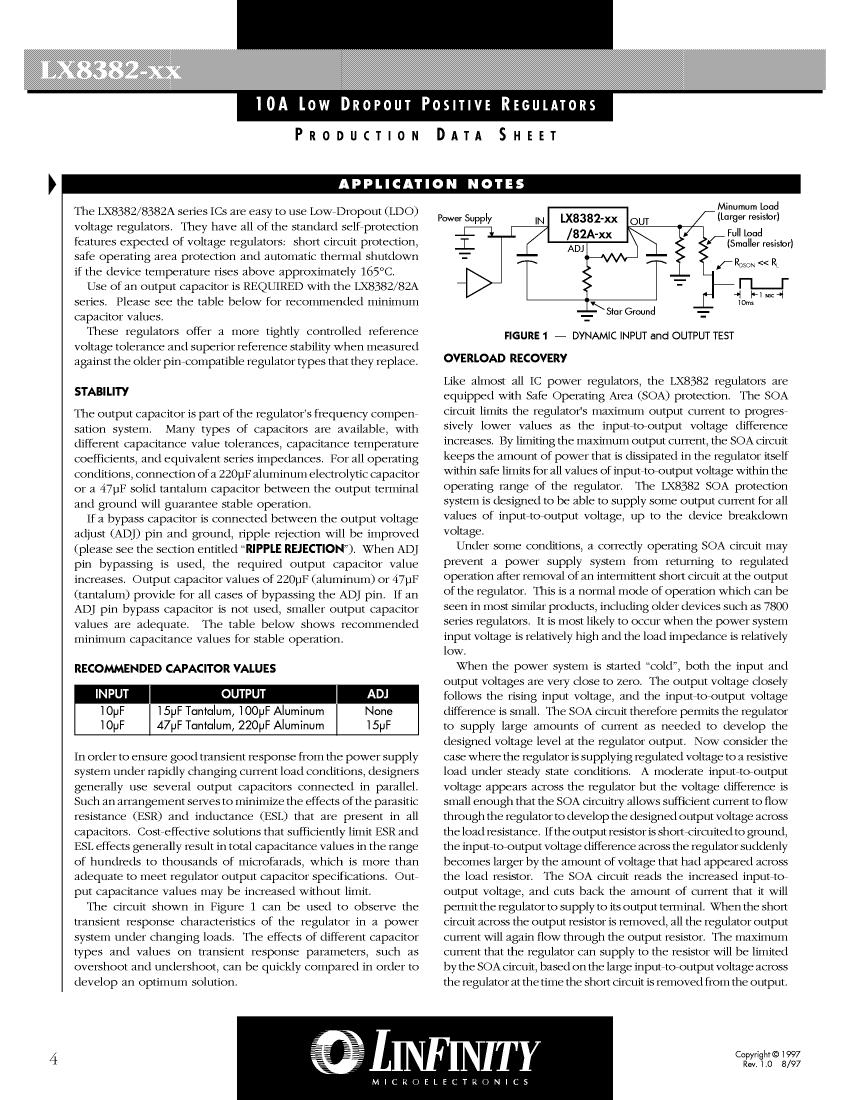

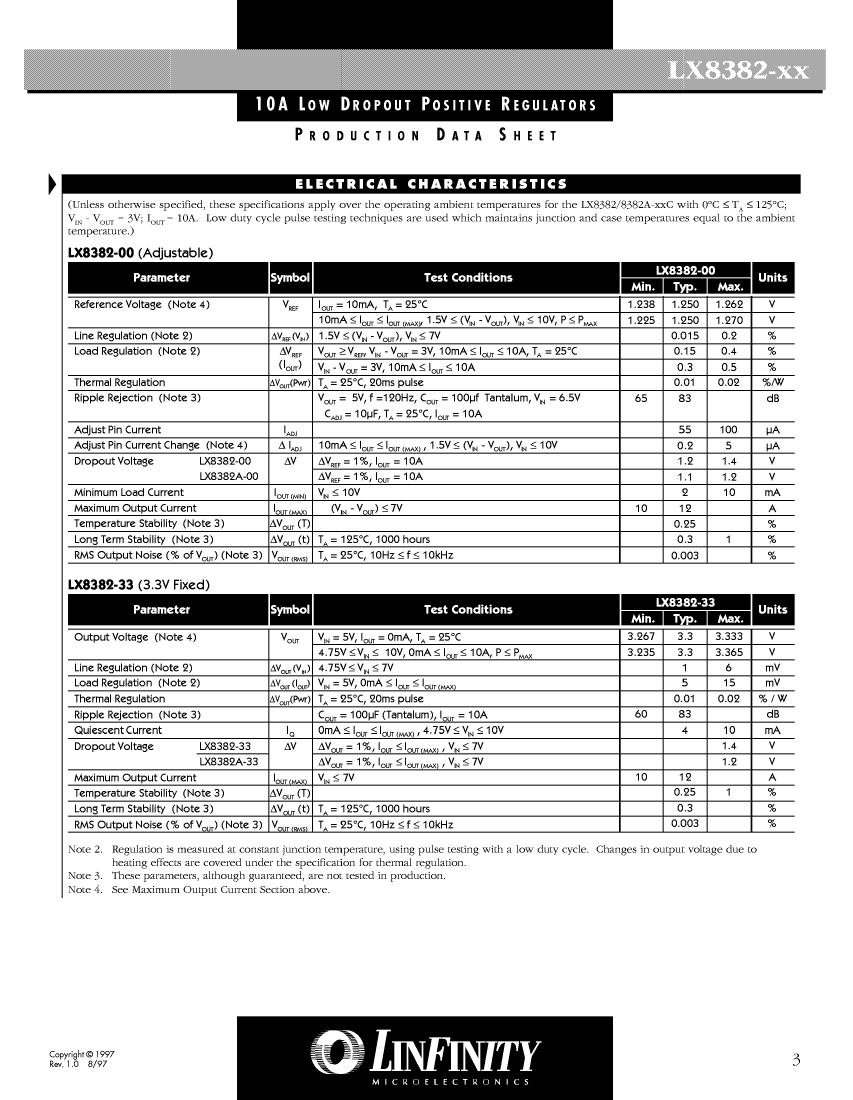

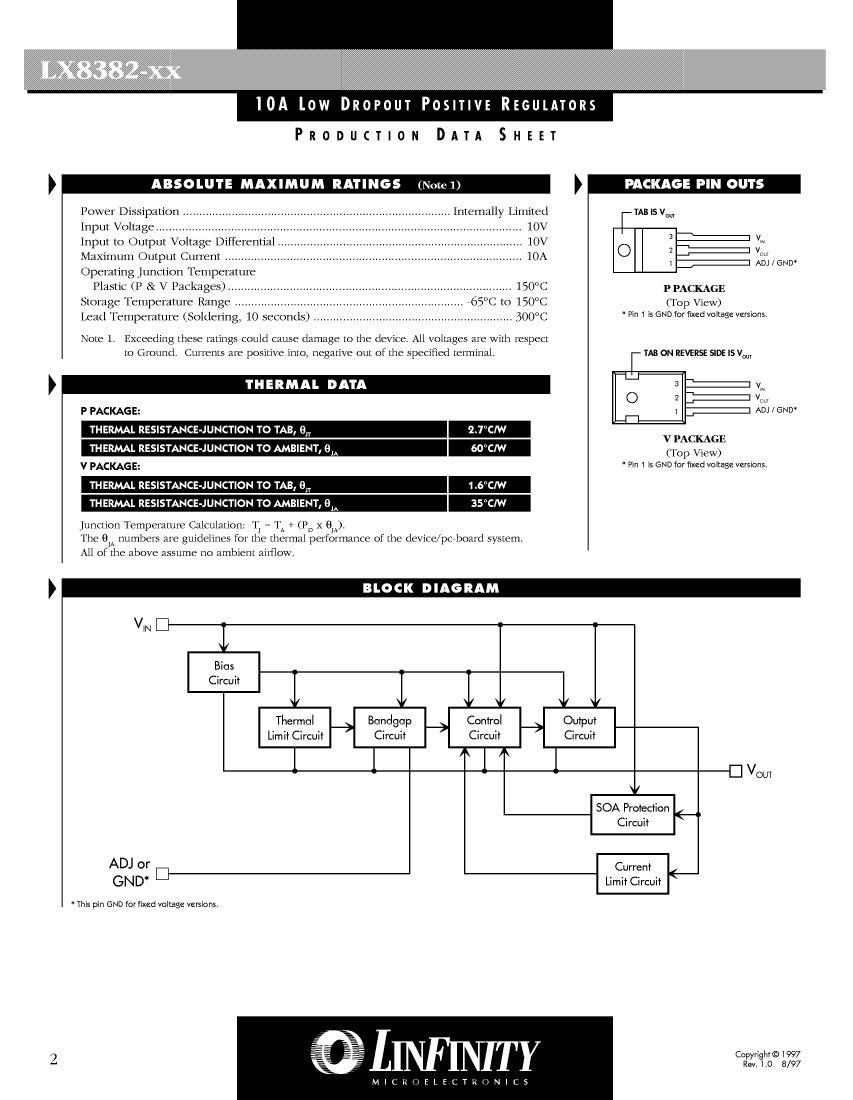

Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Linfinity Microelectronics |
| package instruction | PLASTIC, TO-220, 3 PIN |
| Reach Compliance Code | unknown |
| Adjustability | FIXED |
| Maximum drop-back voltage 1 | 1.4 V |
| Nominal dropback voltage 1 | 1.4 V |
| Maximum absolute input voltage | 10 V |
| Maximum input voltage | 7 V |
| Minimum input voltage | 4.75 V |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e0 |
| Maximum grid adjustment rate | 0.006% |
| Maximum load regulation | 0.015% |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 3 |
| Working temperatureTJ-Max | 150 °C |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | |
| Maximum output current 1 | 10 A |
| Maximum output voltage 1 | 3.333 V |
| Minimum output voltage 1 | 3.267 V |
| Nominal output voltage 1 | 3.3 V |
| Package body material | PLASTIC/EPOXY |
| Encapsulate equivalent code | SIP3,.1TB |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| surface mount | NO |
| technology | BIPOLAR |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | SINGLE |
| Maximum voltage tolerance | 2% |
| Base Number Matches | 1 |
| LX8382-33CP | LX8382-33CV | LX8382A-00CP | LX8382A-33CP | LX8382A-33CV | LX8382-00CP | LX8382-00CV | LX8382A-00CV | |
|---|---|---|---|---|---|---|---|---|
| Description | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, BIPolar, PSFM3, PLASTIC, TO-247, 3 PIN | Adjustable Positive LDO Regulator, 1.25V Min, 8.5V Max, 1.2V Dropout, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN | Fixed Positive LDO Regulator, 3.3V, 1.2V Dropout, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN | Fixed Positive LDO Regulator, 3.3V, 1.2V Dropout, BIPolar, PSFM3, PLASTIC, TO-247, 3 PIN | Adjustable Positive LDO Regulator, 1.25V Min, 8.5V Max, 1.4V Dropout, BIPolar, PSFM3, PLASTIC, TO-220, 3 PIN | Adjustable Positive LDO Regulator, 1.25V Min, 8.5V Max, 1.4V Dropout, BIPolar, PSFM3, PLASTIC, TO-247, 3 PIN | Adjustable Positive LDO Regulator, 1.25V Min, 8.5V Max, 1.2V Dropout, BIPolar, PSFM3, PLASTIC, TO-247, 3 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics |
| package instruction | PLASTIC, TO-220, 3 PIN | PLASTIC, TO-247, 3 PIN | PLASTIC, TO-220, 3 PIN | PLASTIC, TO-220, 3 PIN | PLASTIC, TO-247, 3 PIN | PLASTIC, TO-220, 3 PIN | PLASTIC, TO-247, 3 PIN | PLASTIC, TO-247, 3 PIN |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Adjustability | FIXED | FIXED | ADJUSTABLE | FIXED | FIXED | ADJUSTABLE | ADJUSTABLE | ADJUSTABLE |
| Maximum drop-back voltage 1 | 1.4 V | 1.4 V | 1.2 V | 1.2 V | 1.2 V | 1.4 V | 1.4 V | 1.2 V |
| Nominal dropback voltage 1 | 1.4 V | 1.4 V | 1.2 V | 1.2 V | 1.2 V | 1.4 V | 1.4 V | 1.2 V |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Working temperatureTJ-Max | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Maximum output current 1 | 10 A | 10 A | 10 A | 10 A | 10 A | 10 A | 10 A | 10 A |
| Maximum output voltage 1 | 3.333 V | 3.333 V | 8.5 V | 3.333 V | 3.333 V | 8.5 V | 8.5 V | 8.5 V |
| Minimum output voltage 1 | 3.267 V | 3.267 V | 1.25 V | 3.267 V | 3.267 V | 1.25 V | 1.25 V | 1.25 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Encapsulate equivalent code | SIP3,.1TB | SIP3,.1,215TB | SIP3,.1TB | SIP3,.1TB | SIP3,.1,215TB | SIP3,.1TB | SIP3,.1,215TB | SIP3,.1,215TB |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 5.5 mm | 2.54 mm | 2.54 mm | 5.5 mm | 2.54 mm | 5.5 mm | 5.5 mm |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
