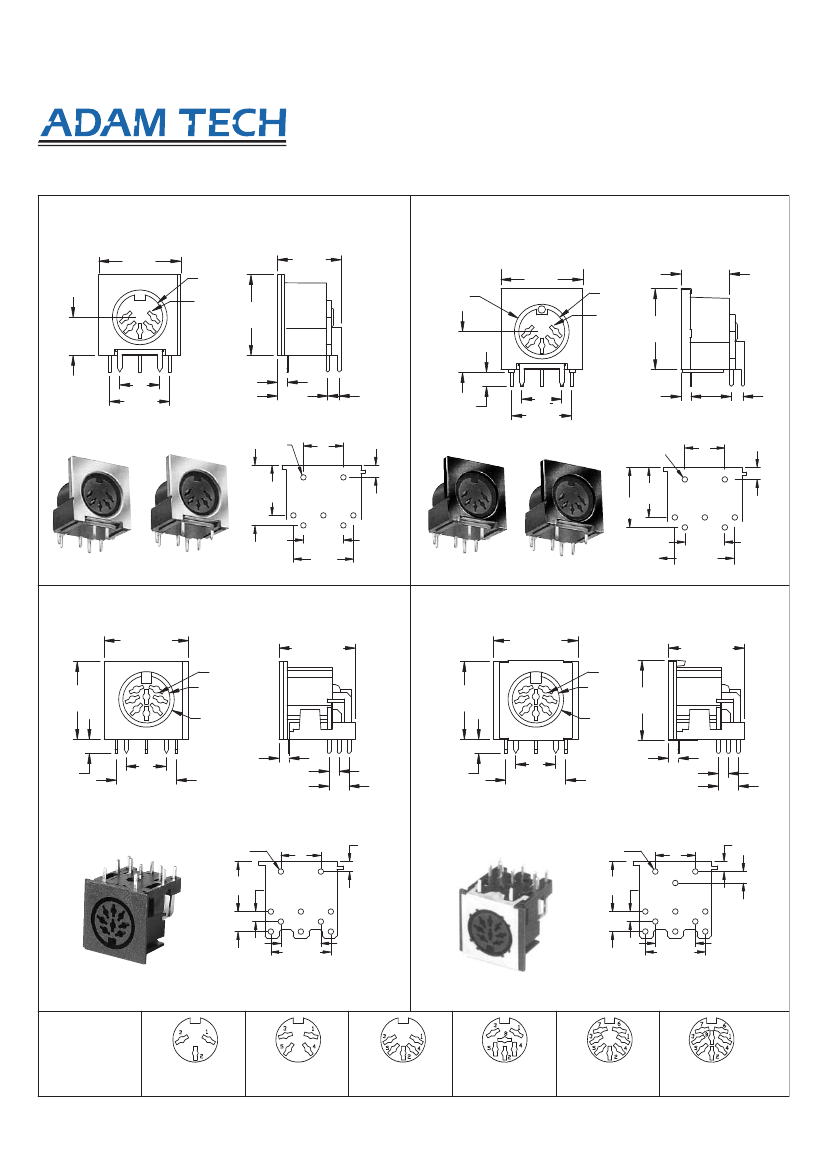

CIRCULAR DIN JACKS
Adam Technologies, Inc.
5 POSITION
DIN JACK
5
DIN JACK
POSITION
RIGHT ANGLE PCB MOUNT
DJ SERIES
SHIELDED 5 POSITION
.807
[20.50]
.610
[15.50]
NON-SHIELDED 5 POSITION
ø.453
[ø11.50]
ø.275
[ø7.0]
ø.540
[ø13.70]
.770
[19.50]
.401
[10.20]
.807
[20.50]
ø.453
[ø11.50]
ø.275
[ø7.0]
.472
[12.0]
.394
[10.00]
.098
[2.50]
.496
[12.60]
.795
[20.20]
X
.591
[15.00]
X = PITCH .197 [5.00] OR .394 [10.00]
.098
[2.50]
.126 [3.20]
X
.591
[15.00]
.118
[3.00]
.098 [2.50]
7-ø.055
[ø1.40]
X = PITCH .197 [5.00] OR .394 [10.00]
X
7-ø.055
[ø1.40]
X
.492
[12.50]
3
5
.394
[10.00]
.590
[15.00]
2
4
.118
1 [3.00]
.492
[12.50]
.590
[15.00]
3
5
2
4
.394
[10.00]
.098
1 [2.50]
DJ-005-S.5
3 THRU 8 POSITION
DIN JACKS
DJ-005-S
.590
[15.00]
DJ-005-.5
3 THRU 8 POSITION
DIN JACK
SHIELDED
DJ-005
.590
[15.00]
NON-SHIELDED, POSITIONS: 3P, 4P, 6P,7P, 8P
.831 [21.10]
ø0.2800
ø0.4720
.770
[19.50]
ø0.5560
.098
[2.50]
X
.590 [15.00]
X = PITCH .197 [5.00] OR .394 [10.00]
.098
[2.50]
.197
[5.00]
.752 [19.10]
SHIELDED, POSITIONS: 3P, 4P, 6P,7P, 8P
.831 [21.10]
.756 [19.20]
ø0.2800
.770
[19.50]
ø0.4720
.787
[20.0]
ø0.5560
.150
[3.80]
.150
[3.80]
X
.590 [15.00]
.098
[2.50]
.098
[2.50]
.197
[5.00]
X = PITCH .197 [5.00] OR .394 [10.00]
ø.055
[ø1.4]
.098
[2.5]
X
ø.055
[ø1.4]
.098
[2.5]
X
.216 [5.5]
.098 [2.5]
3
2
5
7
8
1
4
6
.492
[12.5]
.197
[5.0]
.098 [2.5]
3
5
7
8
.394 [10.0]
.590 [15.0]
2
4
6
1
.492
[12.5]
.197
[5.0]
.394 [10.0]
.590 [15.0]
DJ-008
Recommended PCB Layout
DJ-008-S
Recommended PCB Layout
CONFIGURATIONS
MATING
ARRANGEMENT
OF
FACE
CONTACTS
3
3 Position
POSITION
4
4 Position
POSITION
5
5 Position
POSITION
6
6 Position
POSITION
7
7 Position
POSITION
8
8 Position
POSITION
