28P254-1: DescriptionRF BNC Connector, Male, Cable Mount, Solder Terminal, Plug; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

28P254-1 Overview

RF BNC Connector, Male, Cable Mount, Solder Terminal, Plug

28P254-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	TFE
MIL compliance	YES
Manufacturer's serial number	BNC
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

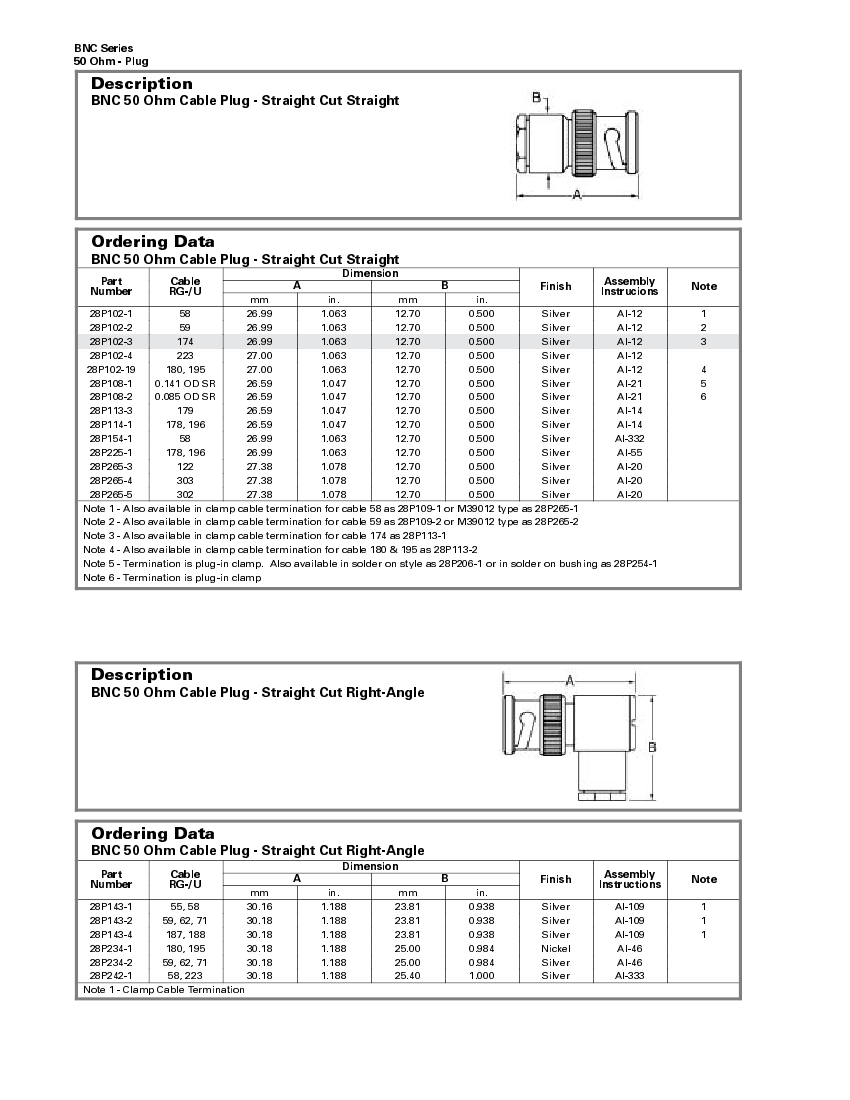

BNC Series

50 Ohm - Plug

Description

BNC Series

BNC 50 Ohm Cable Plug - Straight Cut Straight

- Plug

50 Ohm

RF/Coaxial

Ordering Data

Part

Number

Cable

RG-/U

BNC 50 Ohm Cable Plug - Straight Cut Straight

mm

in.

mm

in.

28P102-1

58

26.99

1.063

12.70

0.500

Silver

AI-12

28P102-2

59

26.99

1.063

12.70

0.500

Silver

AI-12

28P102-3

174

26.99

1.063

12.70

0.500

Silver

AI-12

28P102-4

223

27.00

1.063

12.70

0.500

Silver

AI-12

28P102-19

180, 195

27.00

1.063

12.70

0.500

Silver

AI-12

28P108-1 0.141 OD SR

26.59

1.047

12.70

0.500

Silver

AI-21

28P108-2 0.085 OD SR

26.59

1.047

12.70

0.500

Silver

AI-21

28P113-3

179

26.59

1.047

12.70

0.500

Silver

AI-14

28P114-1

178, 196

26.59

1.047

12.70

0.500

Silver

AI-14

28P154-1

58

26.99

1.063

12.70

0.500

Silver

AI-332

28P225-1

178, 196

26.99

1.063

12.70

0.500

Silver

AI-55

28P265-3

122

27.38

1.078

12.70

0.500

Silver

AI-20

28P265-4

303

27.38

1.078

12.70

0.500

Silver

AI-20

28P265-5

302

27.38

1.078

12.70

0.500

Silver

AI-20

Note 1 - Also available in clamp cable termination for cable 58 as 28P109-1 or M39012 type as 28P265-1

Note 2 - Also available in clamp cable termination for cable 59 as 28P109-2 or M39012 type as 28P265-2

Note 3 - Also available in clamp cable termination for cable 174 as 28P113-1

Note 4 - Also available in clamp cable termination for cable 180 & 195 as 28P113-2

Note 5 - Termination is plug-in clamp. Also available in solder on style as 28P206-1 or in solder on bushing as 28P254-1

Note 6 - Termination is plug-in clamp

A

Dimension

B

Finish

Assembly

Instrucions

Note

1

2

3

4

5

6

Description

BNC 50 Ohm Cable Plug - Straight Cut Right-Angle

Ordering Data

Part

Number

Cable

RG-/U

BNC 50 Ohm Cable Plug - Straight Cut Right-Angle

mm

28P143-1

55, 58

30.16

28P143-2

59, 62, 71

30.18

28P143-4

187, 188

30.18

28P234-1

180, 195

30.18

28P234-2

59, 62, 71

30.18

28P242-1

58, 223

30.18

Note 1 - Clamp Cable Termination

A

Dimension

in.

1.188

mm

23.81

25.00

25.40

B

in.

0.938

0.984

1.000

Finish

Silver

Nickel

Silver

Assembly

Instructions

Note

AI-109

AI-46

AI-333

1

30-14

RF/Coaxial
