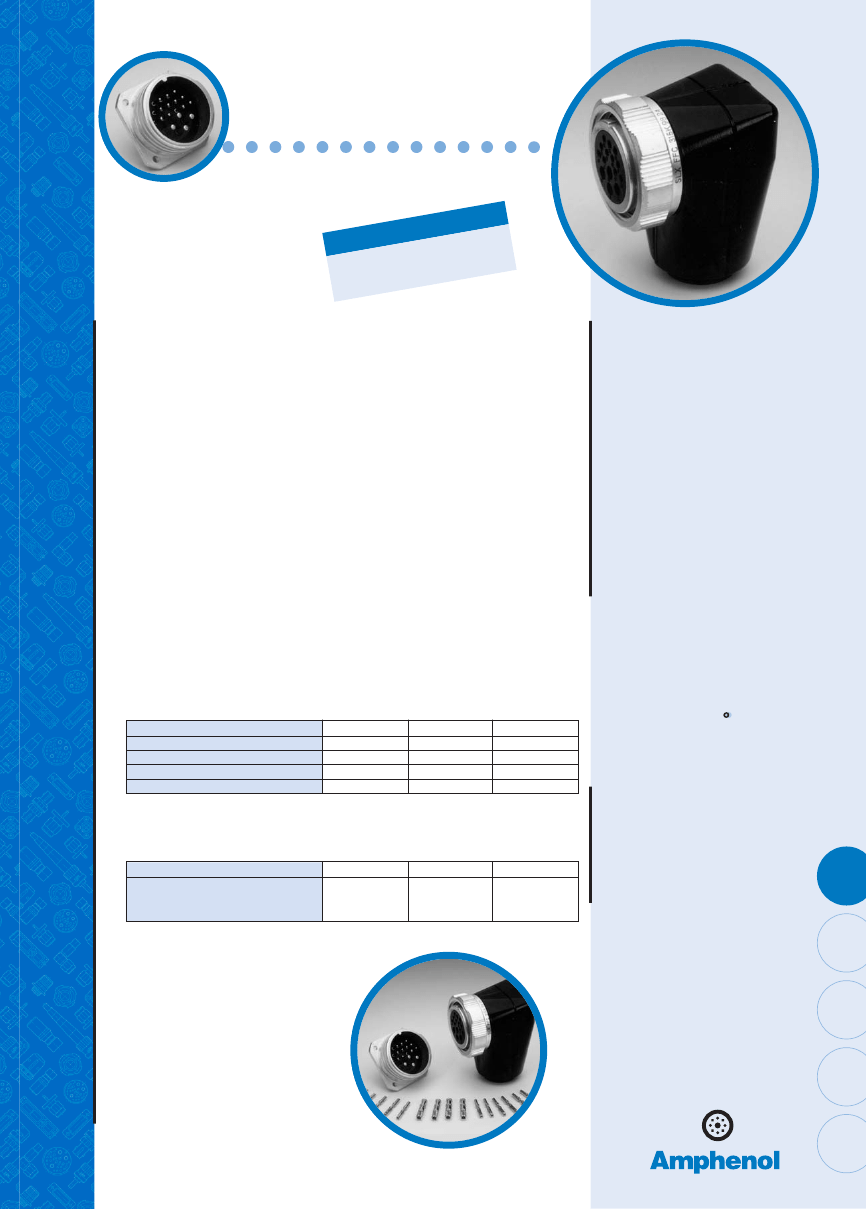

SLX
Crimp version industrial circular connectors
ROHS
oating
Black c ating
•
l pl
• Nicke
TECHNICAL CHARACTERISTICS
Mechanical characteristics
DESCRIPTION
APPLICATIONS
•
Crimp removable gold plated on nickel underplate machined contacts
•
12 insert arrangements which accept contact gauges AWG 20, 16, 12.
in the four different shell sizes 10, 20, 30 & 40
•
Temperature range -55°C to 125°C
•
Clear cadmium plated, nickel plated and black coated
•
Mating by screwing system
•
Strain-relief integrated to the backshell
•
Neoprene inserts
•
Reinforced mating screw
•
ROHS versions:
- Black coating (Non conductive)
- Nickel plating (conductive)
aluminium molded shells
•
UL recognition n° E160967(01)
•
Performances according to NFF61030
SLX series are derived from the standard
SL series, and have the particularity to
use machined contacts with crimp barrels.
The one part Neoprene insert
provides a use in a temperature range
from -55°C to 125°C, the possibility
to change the contacts for reparation,
and an higher test voltage capability.
12 different contacts arrangements
are available which include different
contact gauges (20, 16, 12)
in the four different shell sizes 10,
20, 30 & 40. SLX series panel drilling
is the same as for SL series and
SLX series connectors are intermatable
with SL series connectors (SLX Plug
with SL Receptacle and vice versa).
Electrical characteristics
•
Contacts caracteristics
Contact gauge AWG
Contact diameter (mm)
Nominal current (A)
Contact resistance (Ohm)
Contact retention in the insert (N)
20
1
7.5
≤
0.005
≥
30
16
1.5
13
≤
0.002
≥
40
12
3
25
≤
0.002
≥
45
Crimp removable
contacts
125 C
•
Instrumentation
•
Robotics
•
Power supplies
•
Transportation
•
Entertainment (brand-lights)
•
Contact arrangements electrical caracteristics
Test voltage at sea level (Vrms)
Contact arrangements
1500
14V-17P-22B
23C-212AF-38J
315K
2300
27E-337P
439R
2800
319L-419AR
DOC-000003-ANG-B
SLX
DIMENSIONAL CHARACTERISTICS
•
Contacts and wires
Contact
gauge
AWG
12
16
20
Crimp barrel
Internal
Depth
diameter
in mm
in mm
2.5
7.5
1.95
6.4
1.35
4
Pin
diameter
(mm)
3
1.6
1
AWG
gauge
Section mm
2
mini
maxi
Diameter over conductor
Maxi
(mm)
diameter
mini
maxi
over sleeving
(mm)
1.7
2.45
4.2
1
1.9
2.8
0.6
1.3
2.4
14-12
20 -> 14
24 -> 18
1.80***
0.60*
0.22**
3.30
1.91
0.93
* The use of a 800629 reducing sleeve is necessary for cable section less than 0.60 mm
2
** The use of a 800612 reducing sleeve is necessary for cable section less than 0.22 mm
2
*** The use of a 900092 reducing sleeve is necessary for cable section less than 1.80 mm
2
for # 16 to 20
900093 reducing sleeve is necessary for cable section less than 1.80 mm
2
for # 20 to 24
•

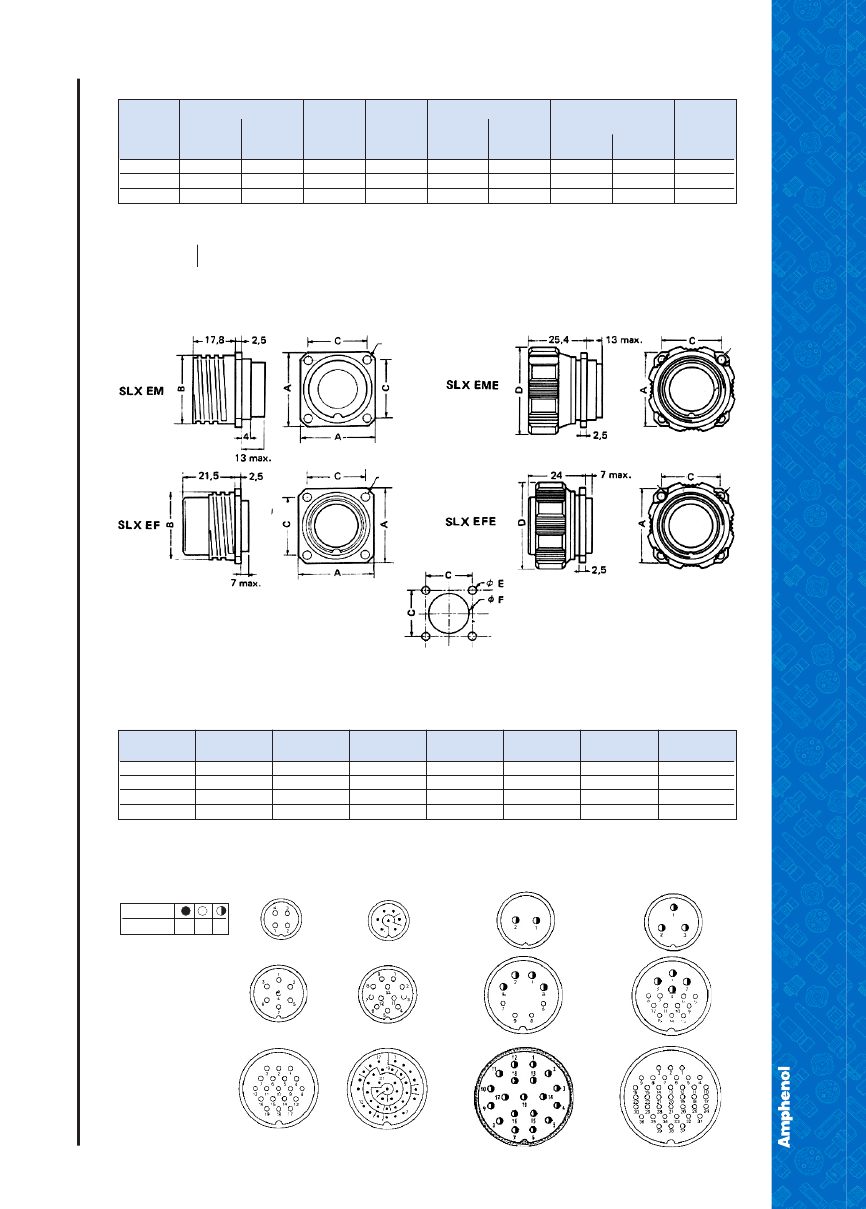

Dimensions of the connectors
(15,1 for size 10)
ØH
(24,1 for size 10)
ØH
ØH
ØH
All dimensions are given in mm
For more details about dimensional characteristics, please refer to standard SL data-sheet.
Some dimensions mentioned bellow regarding insulators are specific to SLX series.
Receptacle
size
10
20
30
40
A
(mm)
25
31
46
56
Diam. B
(mm)
21
28.1
42.2
52.2
C
(mm)
19
24
34
41
Diam. D
(mm)
28
37
52
65
Diam. E
(mm)
3.2
3.5
3.5
3.5
Diam. F
(mm)
16.5
25.5
35.5
47
Diam. H
(mm)
3.2
3.5
3.5
3.5
Contacts insert arrangements
Mating face view of the male insert
Contact type
Contact size
20 16 12
14 V
17 P
22 B
23 C
27 E
212 AF
38 J
315 K
319 L
337 P
419 AR
439 R
Straight or right-angle backshell
Backshell reference
Connector
size
10
20
30
40
black*
(non conductive)
47377N
47378N
47379N
47380N
straight
nickel*
(conductive)
47377NI
47378NI
47379NI
47380NI
green cadmium
black*
(conductive)
(non conductive)
21458N
21459N
21460N
21461N
47381N
47382N
47383N
47384N
right-angle
nickel*
(conductive)
47381NI
47382NI
47383NI
47384NI
green cadmuim
(conductive)
21462N
21463N
21464N
21465N
* Black and Nickel Backshells are ROHS compliant.
- Straight or right-angle backshells are delivered with different clamping pads.
- Green backshells (conductive finish) are delivered with metallised clamping pads.
Contacts as spare parts*
Contact gauge AWG
Part-number for one pin
Part-number for one socket
12
21713
21728
16
800660
800664
20
800650
800654
* For arrangement 419 AR and 23C: Part-number for one pin: 35941
Part-number for one socket: 35970

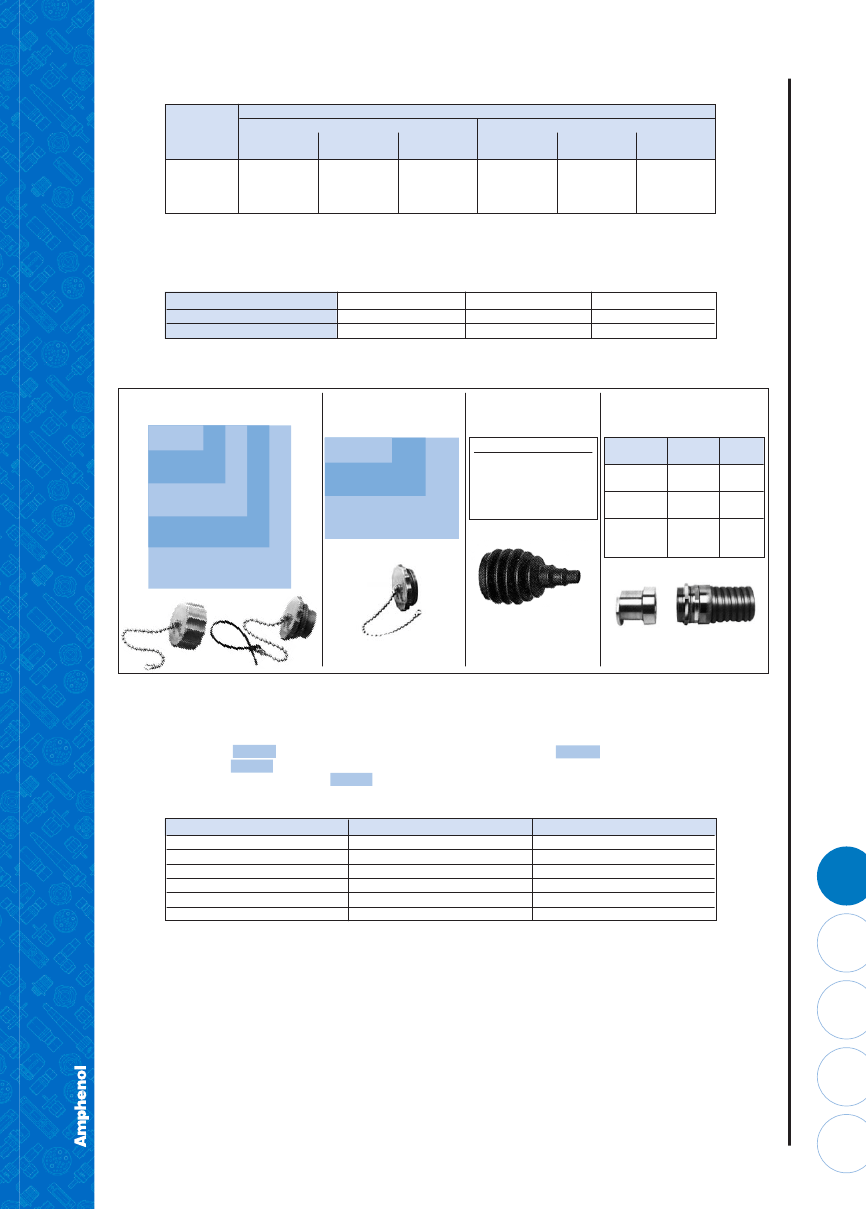

Accessories
Plug and receptacle protection
caps:
SLB
F:
Plug
E:
Receptacle
M:
Pin connector
F:
Socket connector
Plug
and receptacle: none
Line
mount receptacle:
R
Size
1B:
10
2B:
20
3B:
30
4B:
40
F
M
3B
BF
F
3B
M:
Pin connector
F:
Socket connector
Size
1B:
10
2B:
20
3B:
30
4B:
40
Receptacle with locking Sealing sleeve:
ring protection caps:
Connector
Straight
Right-angle
Straight
or
Right-angle
Size
10
10
20
30
40
Ref.
43458
43473
43456
44666
43457
Adaptator for flexible conduit
and PG:
Connector
size
SL RF 209N
SL RF 211N
SL RF 313N
SL RF 316N
SL RF 416N
SL RF 421N
SL RF 429N
20
20
30
30
40
40
40
PG
thread
9
11
13
16
16
21
29
}
for plug or line mount
receptacle
- Caps and sealing sleeves are ROHS.
Cabling tools
•
Crimping tools
• Crimping pliers: 809857 (Mil. P/N: M22520/1-01)
• Positioner:
21770
For arrangement 419 AR and 23C: TP943
• Controlling jauge: 809907 (Mil. P/N: M22520/3-1)
(Selector number: 4)
•
Contacts insertion and removal
#
#
#
#
#
#
Contacts
12: Pin
12: Socket
16: Pin
16: Socket
20: Pin
20: Socket
Insertion tool P/N
141900
141900
48680
48680
39048
39048
Removal tool P/N
21746
21745
809731
809732
809729
809730
Cabling process
•
Crimping process
Place the positioner in the pliers.
Choose the selector number on the positioner according to
the contact size to crimp.
Strip the wire end (7.5mm for size 12 contact / 6mm for size
16 contact / 4mm for size 20 contact).
Insert the wire in the crimp barrel of the contact and check
through the inspection hole of the contact that wire is well-
placed.
Place the contact with the wire into the pliers until the stop.
Completely close the tool and after, let it open itself.
Visually check if crimping is correct and by the inspection
hole of the contact if the wire is well-placed in the crimp
barrel.
•
Contact insertion
Insert the wired contact in the groove of the tool, taking care
that the extremity of the tool touches the shoulder of the contact.
Insert the contact in its cavity from wiring side and steadily
push the tool along the axis of the cavity until the contact
locks home.
Carefully withdraw the tool , applying a forward pressure on
the wire.
Pull on the wire to check that the contact is correctly locked.
•
Contact removal
Insert the tool from the mating side and push it along the
contact axis until contact unlocks.
Pull the contact out from the rear of the connector.
SLX
OVERALL DIMENSIONS
HOW TO ORDER
Plug and Inline receptacle
(backshell sets included)
ROHS Part Numbers : nickel plated or black coatedX
Non ROHS Part Numbers : clear cadmium plated
SLX series
D: Black coating
Blank: Nickel plating
F: plug or inline receptacle
SLX
D
F M D
319L
SLX series
SLX
F M D
319L
F : plug or inline receptacle
Type of contact:
M: Male
F: Female
D: plug + straight backshell
DR: inline receptacle + straight backshell
C: plug + right angle backshell
Contact Arrangement
(see page 2)
Type of contact:
M: Male
F: Female
D: plug + straight backshell
DR: inline receptacle + straight backshell
C: plug + right angle backshell
Contact Arrangement
(see page 2)
Blank: Black coating
NI: Nickel plating
Panel mount receptacle and receptacle with locking ring
ROHS Part Numbers : nickel plated or black coated
Non ROHS Part Numbers : clear cadmium plated
SLX series
SLX
D
E
F
319L
SLX series
SLX
E
F
319L
D: Black coating
Blank: Nickel plating
E: receptacle or receptacle with locking ring
Type of contact:
M: Male
F: Female
Blank: Receptacle
E: Receptacle with locking ring
Contact Arrangement
(see page 2)
Blank: Black coating
NI: Nickel plating
Add “MA” for tin plated retention
ring (grounding)
Comment : Panel gasket is delivered with the receptacle
E: receptacle or receptacle with
locking ring
Type of contact:
M: Male
F: Female
Blank: Receptacle
E: Receptacle with locking ring
Contact Arrangement
(see page 2)
Add “MA” for tin plated retention
ring (grounding)
Comment : Panel gasket is delivered with the receptacle
Body of plug and inline receptacle
With those part numbers the straight and right angle backshells are not included.
To define part numbers of backshells, please to consult page 2.
ROHS Part Numbers : nickel plated or black coated
Non ROHS Part Numbers : clear cadmium plated
SLX series
SLX
D B M
319L
SLX series
SLX
B M
319L
D: Black coating
Blank: Nickel plating
Body of plug or inline receptacle
Type of contact:
M: Male
F: Female
Blank: Body of plug
R: Body of inline receptacle
Contact Arrangement
(see page 2)
Blank: Black coating
NI: Nickel plating
Body of plug or inline
receptacle
Type of contact:
M: Male
F: Female
Blank: Plug
R: inline receptacle
Contact Arrangement
(see page 2)
Do not hesitate to contact us for further information
Amphenol Socapex
948, Promenade de l’Arve - BP 29
F - 74311 Thyez Cedex
Tel.: +33 (0) 4 50 89 28 00 - Fax: +33 (0) 4 50 96 29 75
http://www.amphenol-socapex.fr
