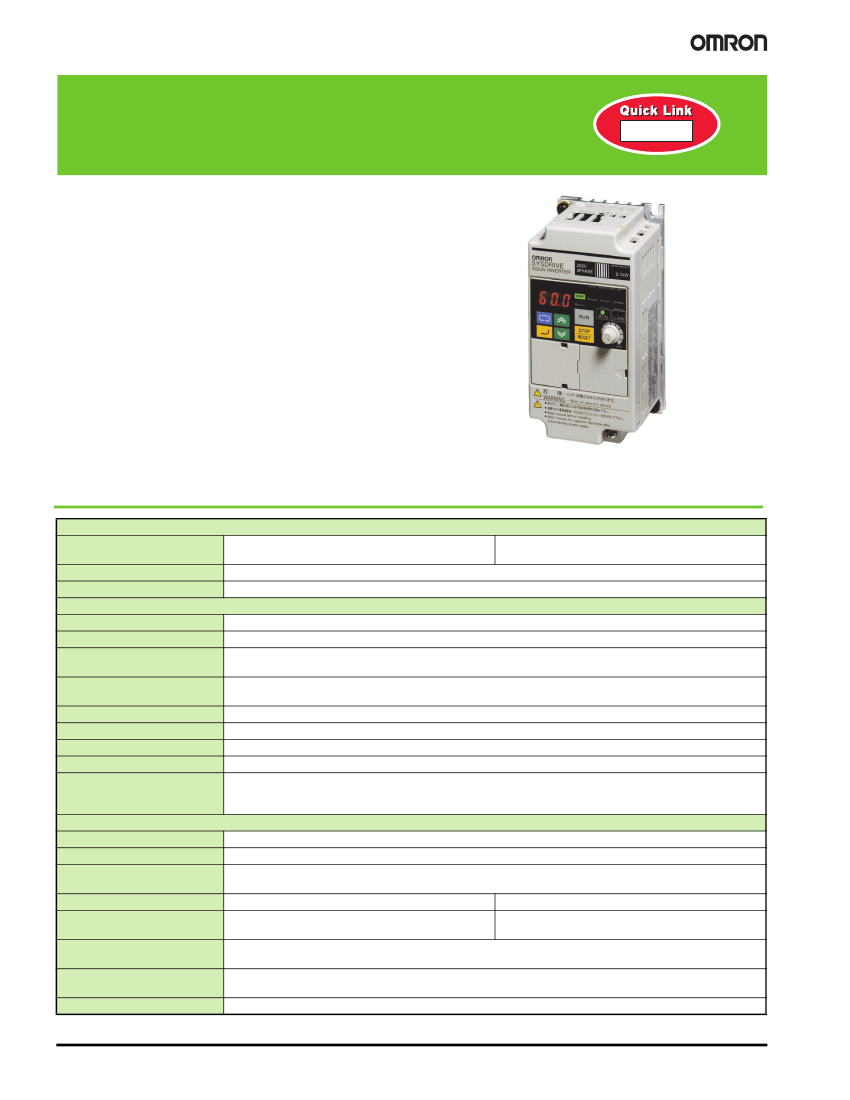

3G3JV
Inverters
Inverters
3G3JV
Compact AC Inverter for Simple Motor
Control
• Easy-to-use digital operator controls all parameter
selections and settings
• Quick Start LEDs for quick setup and troubleshooting
• Fine-tune speed using the potentiometer on the digital
operator
• Ideal for simple, small motor control applications — uses
V/Hz control method
• Programmable output frequency, 400 Hz maximum
• Modbus serial communications
• Compact size: 5.04 H x 5.04 W x 6.34 D inches max.
(230 VAC)
• 5.04 H x 5.51 W x 6.34 D inches max. (460 VAC)
A031
Specifications
Power supply
Rated input voltage & frequency 3-phase, 200 to 230 V, 50/60 Hz
Single-phase, 200 to 240 V, 50/60 Hz
Allowable voltage fluctuation
Allowable frequency fluctuation
Control characteristics
Control method
Frequency control range
Frequency accuracy
(temperature change)
Frequency setting resolution
Output frequency resolution
Overload capacity
Frequency setting signal
Accel/Decel
Braking torque
Sine Wave PWM (V/f control), possible to program any V/f pattern
0.1 to 400 Hz
Digital reference: ±0.01%, 14 to 122°F (-10 to +50°C)
Analog reference: ±0.5%, 59 to 95°F (25±10°C)
Digital reference: 0.1 Hz (less than 100 Hz)/1 Hz (100 Hz or more)
Analog reference: (0:06/60 Hz) equivalent to 1/1000 of max. output frequency
0.01 Hz
150% rated output current for one minute
0 to 10 VDC (20 kΩ), 4 to 20 mA (250
Ω),
0 to 20 mA (250
Ω)
frequency setting volume (selectable)
0.1 to 999 sec. (accel./decel. time are independently programmed)
Short-term average deceleration torque
0.13 HP, 0.25 HP: 150%; 0.5 HP, 1 HP: 100%; 2 HP: 50%; 3 HP or more: 20% Continuous regenerative torque:
Approx. 20%
UL-recognized electronic thermal overload relay
Motor coasts to a stop at approximately 250% rated output current
Motor coasts to a stop after one minute at 150% rated output current
Motor coasts to a stop at approximately 200% rated output current
Motor coasts to a stop if DC bus voltage exceed 410 V Motor coasts to a stop if DC bus voltage exceeds 820 V
Stops when DC bus voltage is approximately 200 V or Stops when DC bus voltage is approximately 400 V or
less (approx. 160 V or less for single-phase series)
less
Stops if power loss is 15 ms or more. By setting inverter, operation can be continued if power is restored within
approximately 0.5 s
Cooling fan is provided for: 230 V, 1 HP or larger inverters (3-phase); 460 V, 2 HP or larger inverters (single-
phase); other models are self-cooling
Protected by electronic circuit
-15% to +10%
±5%
3-phase, 380 to 460 V, 50/60 Hz
Protective functions
Motor overload protection
Instantaneous overcurrent
Overload
Overvoltage
Undervoltage
Momentary power loss
Cooling method
Cooling fin overheat
I-16
