Get
with the best value at
The SYSDRIVE JV Series of Micro Inverters
delivers precise
control without compromising panel space or your budget.
•
Easy to install and maintain
•
Optional DIN-rail bracket for quick rail mounting
•
Space-saving design ideal for new or retrofit panels
•
Easily mounted cooling fan can be adjusted to run
only when the JV is running
Easy to setup and program

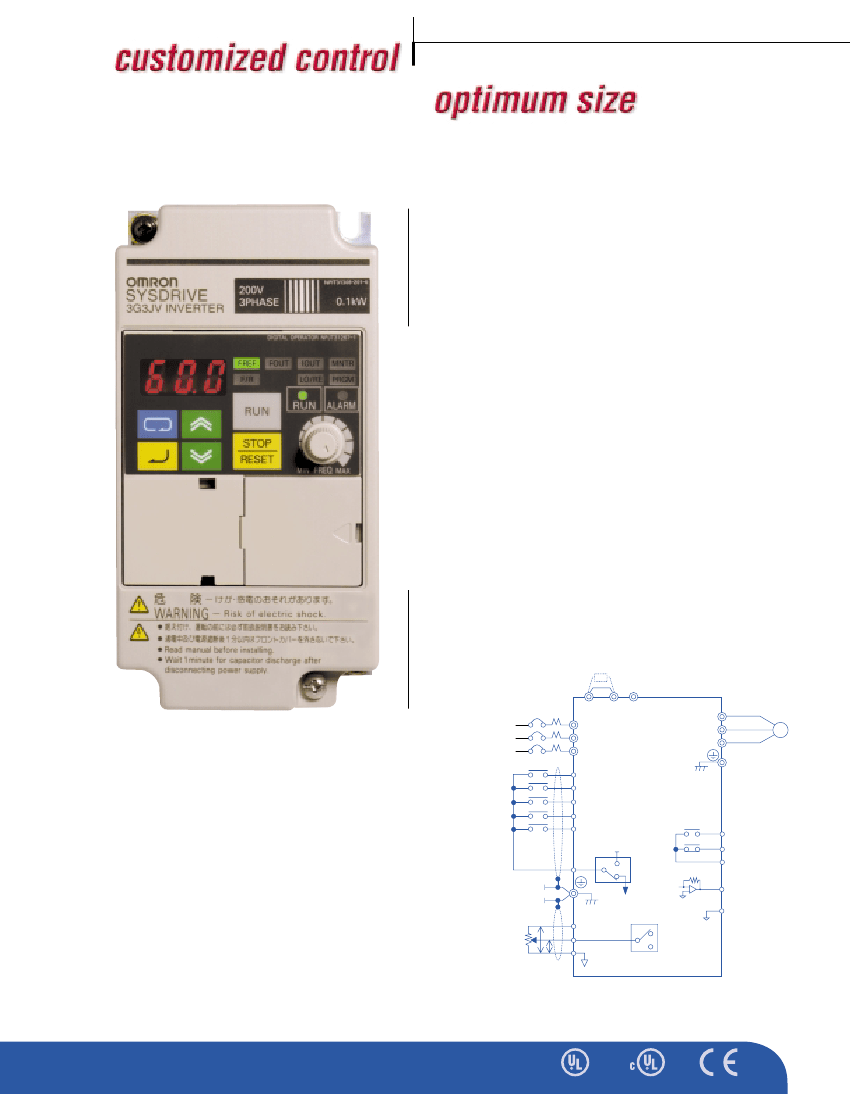

SHOWN AT ACTUAL SIZE - 128 mm (5.04 in.)
•
Integrated, face-mounted speed potentiometer for
quick start up after power is applied
•
Quick-start LEDs for easy programming
•
Communication options include RS-232C/485
•
Multi-step speed control for up to nine steps,
UP/DOWN operation, and jog operation
Outstanding price/performance
relationship
•
Ideal for simple, low horsepower speed control
applications
•
Excellent starting torque of 150% at 3Hz
•
Virtually immune to overload
•
Consistent performance despite changing
conditions
•
Full-range automatic torque boost
•
Slip compensation
Wiring Diagram
DC Reactor (optional)
•
+2
R/L1
R/L2
R/L3
S1
S2
Multi-function
Input
S3
S4
S5
_
U/T1
3G3JV
V/T2
W/T3
IM
Multi-function I/O support
•
Supports analog inputs of 0 to 10V, 4 to 20 mA, or 0 to 20 mA
•
Supports an analog monitor output and a digital output
•
Accepts both PNP and NPN inputs
MA
+24V (PNP)
MB Multi-function
MC Relay Output
AM
0V (NPN)
AC
Protection for your machinery
•
A high-speed current limiting function minimizes over-current
trips (above 250% of rated current)
•
Quick restarts after momentary power loss
•
Stall prevention and fault retry functions
•
Overtorque detection
•
UL recognized electronic thermal overload
•
Inrush current suppression and ground fault protection
Common
SC
SW7
Analog Monitor
Output
Analog Monitor
Output Common
Frequency
Reference
FS
(+12V, 20mA)
SW8
FR
P
FC (0V)
V (0-10v)
I (4-20 mA)
Note: Connect single-phase 230 VAC to terminals R/L1
and S/L2 of the 3G3JV-AB".
Global
The JV Series meets international UL, cUL and CE standards for
Construction
global application coverage.

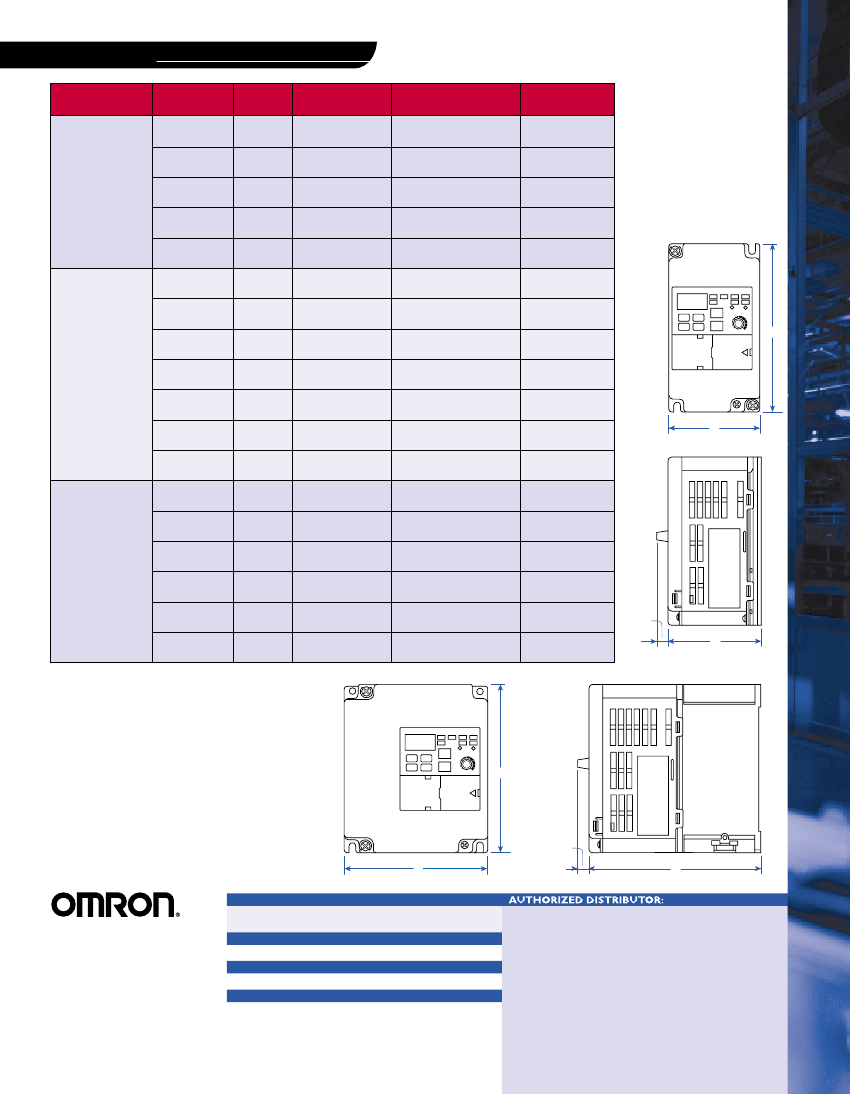

Specifications
Voltage Class
230 VAC single-/ 3-phase
MODEL
3-phase
A2001-A A2002-A A2004-A A2007-A A2015-A A2022-A A2037-A A4002-A
Part
Numbers
3G3JV-
Single-phase
AB001-A AB002-A AB004-A AB007-A AB015-A
–
–
–
Max. Applicable
0.13
0.25
0.5/.75
1
2
3
5
0.5
Motor Output*
1
HP (kW)
(0.1)
(0.2)
(0.4)
(0.75)
(1.5)
(2.2)
(3.7)
(0.2)
Inverter Capacity (kVA)
0.3
0.6
1.1
1.9
3.0
4.2
6.7
0.9
Rated Output Current (A)
0.8
1.6
3
5
8
11
17.5
1.2
Output
Characteristics
A4004-A
–
1
(0.4)
1.4
1.8
460 VAC 3-phase
A4007-A
A4015-A
–
–
1.5/2
3
(.75)
(1.5)
2.6
3.7
3.4
4.8
A4022-A
–
3.5
(2.2)
4.2
5.5
A4037-A
–
5
(3.7)
6.5
8.6
Max. Output Voltage (V)
Max. Output Frequency (Hz)
Rated Input Voltage
and Frequency
Allowable Voltage Fluctuation
Allowable Frequency Fluctuation
Control Method
Frequency Control Range
Frequency Accuracy
(Temperature Change)
Frequency Setting
Resolution
Output Frequency Resolution
Overload Capacity
Frequency Reference Signal
Accel/Decel Time
Braking Torque
V/f Characteristics
Motor Overload Protection
Instantaneous Overcurrent
Overload
Overvoltage
Undervoltage
Momentary Power Loss
Cooling Fin Overheat
Stall Prevention Level
Cooling Fan Fault
Ground Fault
Power Charge Indication
Cooling Method
Enclosure
Ambient Temperature
Humidity
Storage Temperature*
3
Location
Elevation
Vibration
Wiring Distance
Input
Signals
3-phase, 200 to 230 V (proportional to input voltage)
3-phase, 380 to 460 V (proportional to input voltage)
\
Other Functions
Multi-function
Input
Multi-function
Output
Standard Functions
400 Hz (Programmable)
3-phase, 200 to 230 V, 50/60Hz
3-phase, 380 to 460 V, 50/60Hz
Single-phase, 200 to 240 V, 50/60Hz
-15% to +10%
±5%
Sine wave PWM (V/f control)
0.1 to 400 Hz
Digital reference: ±0.01% 14 to 122˚F (-10 to +50˚C)
Analog reference: ±0.5% 59 to 95˚F (25±10˚C)
Digital reference: 0.01 Hz (less than 100 Hz)/1 Hz (100 Hz or more)
Analog reference: (0:06/60 Hz) equivalent to 1/1000 of max. output frequency
0.01 Hz
150% rated output current for one minute
0 to 10 VDC (20 kΩ), 4 to 20 mA (250
Ω),
0 to 20 mA (250
Ω)
frequency setting volume (selectable)
0.1 to 999 sec. (accel./decel. time are independently programmed)
Short-term average deceleration torque*
2
0.13 HP, 0.25 HP: 150%; 0.5 HP, 1 HP: 100%; 2 HP: 50%; 3 HP or more: 20%
Continuous regenerative torque: Approx. 20%
Possible to program any V/f pattern
Electronic thermal overload relay
Motor coasts to a stop at approximately 250% of inverter rated current
Motor coasts to a stop after 1 minute at 150% of inverter rated output current
Motor coasts to a stop if DC bus voltage exceed 410 V
Motor coasts to a stop if DC bus voltage exceeds 820 V
Stops when DC bus voltage is approximately 200 V or less
Stops when DC bus voltage is approximately 400 V or less
(approx. 160 V or less for single-phase series)
Stops if power loss is 15 ms or more. By setting inverter, operation can be continued if power is
restored within approximately 0.5 s
Protected by electronic circuit
Individual levels during acceleration/running, enable/disable provided during deceleration
Protected by electronic circuit (fan-stalling detection)
Protected by electronic circuit (rated output current level)
RUN lamp stays ON or digital operator LED stays ON. (Charge LED is provided for 460 V) ON until the DC bus voltage becomes 50 V or less
Cooling fan is provided for: 230 V, 1 HP (3-phase) 460 V, 2 HP (single-phase), other models are self-cooling
Open chassis IP20
Open chassis: 14 to 122˚F (-10 to +50˚C) (not frozen)
95% RH or less (non-condensing)
-4 to 140˚F (-20 to +60˚C)
Indoor (free from corrosive gases or dust)
3280 ft (1000 m) or less
Up to 9.8 m/S2 (1 G) at less than 20 Hz, up to 2 m/S2 (0.2 G) at less than 20 to 50 Hz
328 ft (100 m) or less between Inverter and Motor
Four of the following input signals are selectable: Reverse run (3-wire sequence), fault reset, external fault (NO/NC contact input),
multi-step speed operation, Jog command, accel/decel time select, external baseblock (NO/NC contact input), speed search
command, accel/decel hold command, LOCAL/REMOTE selection, communication/control circuit terminal selection, emergency
stop fault, emergency stop alarm.
Following output signals are selectable (1 NO/NC contact output): Fault, running, zero speed, at frequency, frequency detection
(output frequency
≤
or
≥
set value), during overtorque detection, minor error, during baseblock, operation mode, inverter run
ready, during fault retry, during under-voltage, during speed search, data output through communication.
Full-range automatic torque boost, slip compensation, DC injection braking current/time at start/stop frequency reference
bias/gain, frequency reference with built-in potentiometer, MEMOBUS communications (RS-485/422, max. 19.2 K bps) capable
with optional unit.
*1: Based on a standard 4-pole motor for max. applicable motor output. Select the inverter model within the allowable motor rated current
*2: Shows deceleration torque for uncoupled motor decelerating from 60 Hz with the shortest possible deceleration time
*3: Temperature during shipping (for short period)
Environmental
Conditions
Protective Functions
Control Characteristics
Power Supply
Output
Signals
