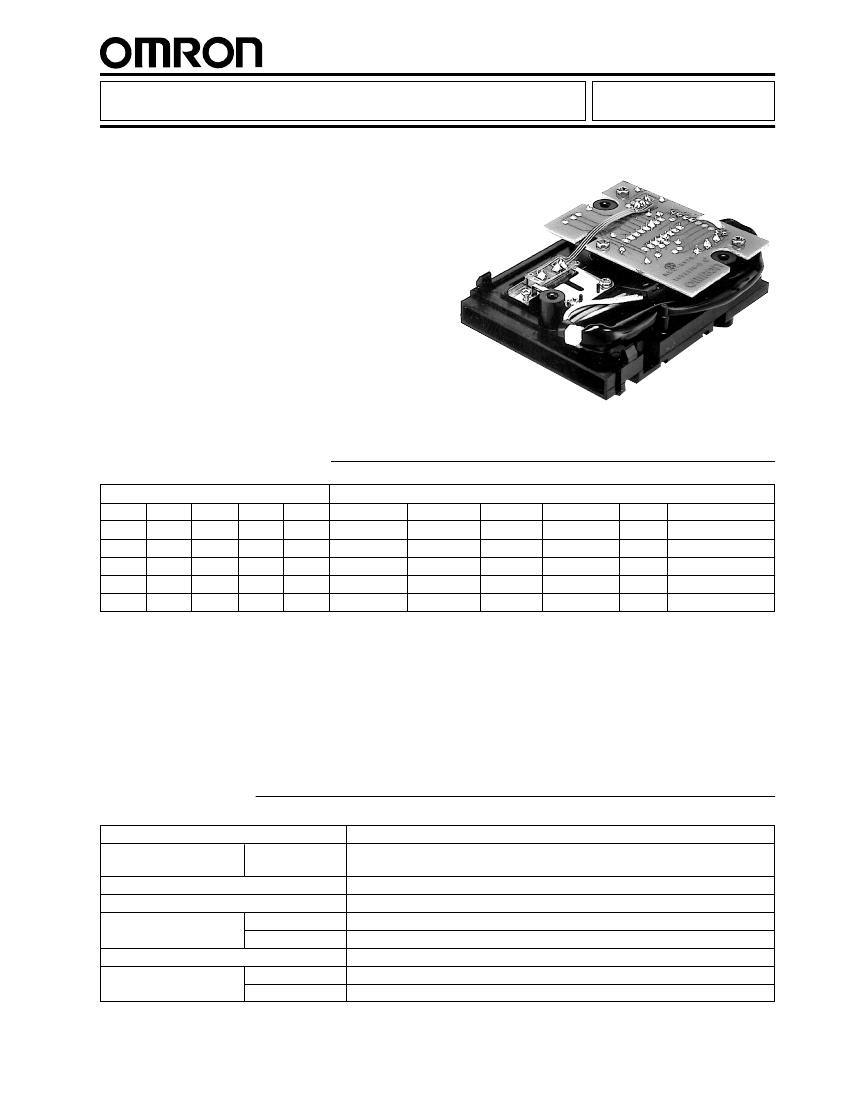

Manual Insert Magnetic Card Reader
Compact, Highly Reliable Insert Reader
Reads 62% of Magnetic Track
s
Effective strip length of 46.6 mm max.
s
Microswitches incorporated for card
3S4YR-SBR
detection
s
Slim package
s
Wide operating temperature range
s
Housing compatible with SCR type for
easy conversion to IC card
s
TTL-compatible interface (clock & data)
Ordering Information
Magnetic Tracks Supported (R, R/W)
1
R
—
—
R
—
2
—
R
—
R
R
3
—
—
R
—
R
Center
—
—
—
—
—
JIS II
—
—
—
—
—
IC contact
No
No
No
No
No
Interface
TTL
TTL
TTL
TTL
TTL
Cable
No
No
No
No
No
Cover
No
No
No
No
No
Color
Black
Black
Black
Black
Black
Part Number
3S4YR-SBR3-20
3S4YR-SBR4-20
3S4YR-SBR5-20
3S4YR-SBR6-20
3S4YR-SBR7-20
s
TYPICAL APPLICATIONS
• Access Control
• Time and Attendance
• ID Card Checkers
• Electronic Locks
• Remote Terminals for Computers
• Telephones
• Vending
• Gaming Machines
Specifications
Part number
Recommended
card type
Recording method
Card feeding speed
Service life/magnetic head Single track
Double track
Operating power supply
Current consumption
Single track
Double track
Magnetic card
3S4YR-SBR
ISO 7810, 7811/1-5, 7812, 7813
FM decoding (F2F)
10 to 100 cm/sec (4 to 39 in/sec)
300,000 passes min.
300,000 passes min.
5 VDC
±
10%
25 mA max.
50 mA max.
Specifications continued on next page
3S4YR-SBR
3S4YR-SBR
Specifications
,
continued
Mounting location
Ambient temperature
Ambient humidity
Vibration
Shock
Dimensions
Weight
Operation
Storage
Operation
Storage
Anywhere not directly subject to water drops or sunlight.
-10° to 55°C (14° to 131°F)
-20° to 70°C (-4° to 158°F)
10% to 95% RH without condensation
10% to 95% RH
10 to 55 Hz, 2 mm double amplitude, for 30 minutes in each of X, Y, and Z directions.
300 m/sec
2
(30 G) in each of X, Y, and Z directions
87L x 60W x 21.5H mm (3.43L x 2.36W x 0.85H in)
Approx. 50 g (1.8 oz)
Engineering Data
s
OUTPUT CIRCUIT DIAGRAM
V
CC
Output signal levels
V
OL
= 0.4 V at 16 mA
V
CC
= 5.5 at 2 mA
Output (RDP, RCP, CLS)
0V
s
I/O INFORMATION
3S4YR-SBR 3,4,5-20 Connector
10-pin JAE single-pin header part number IL-10P-S3FP2-1.
Connector JAE part number IL-10S-S3L-N.
Pin #
1
2
3
4
5
6
7
8
9
10
Signal
NC
RDP
RCP
CLS
SW1-COM
SW1-NO
SW2-COM
SW2-NO
5 VDC
0V
Input/Output
—
Output
Output
Output
Output
Input
Output
Input
—
—
Description
Not connected
Read data
Read clock
Card load
Card detection for rear
Card detection for rear
Card detection for front
Card detection for front
V
cc
Ground
3S4YR-SBR 6,7-20 Connector
12-pin JAE angle pin header part number IL-12P-S3FP2-1.
Connector JAE part number IL-12S-S3L-N.
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
Signal
RDP1
RCP1
CLS1
RDP2
RCP2
CLS2
SW1-COM
SW1-NO
SW2-COM
SW2-NO
5 VDC
0V
Input/Output
Output
Output
Output
Output
Output
Output
Output
Input
Output
Input
—
—
Description
Read data, track 1 or 3
Read clock, track 1 or 3
Card load, track 1 or 3
Read data, track 2
Read clock, track 2
Card load, track 2
Card detection for rear
Card detection for rear
Card detection for front
Card detection for front
V
cc
Ground
2
3S4YR-SBR
3S4YR-SBR

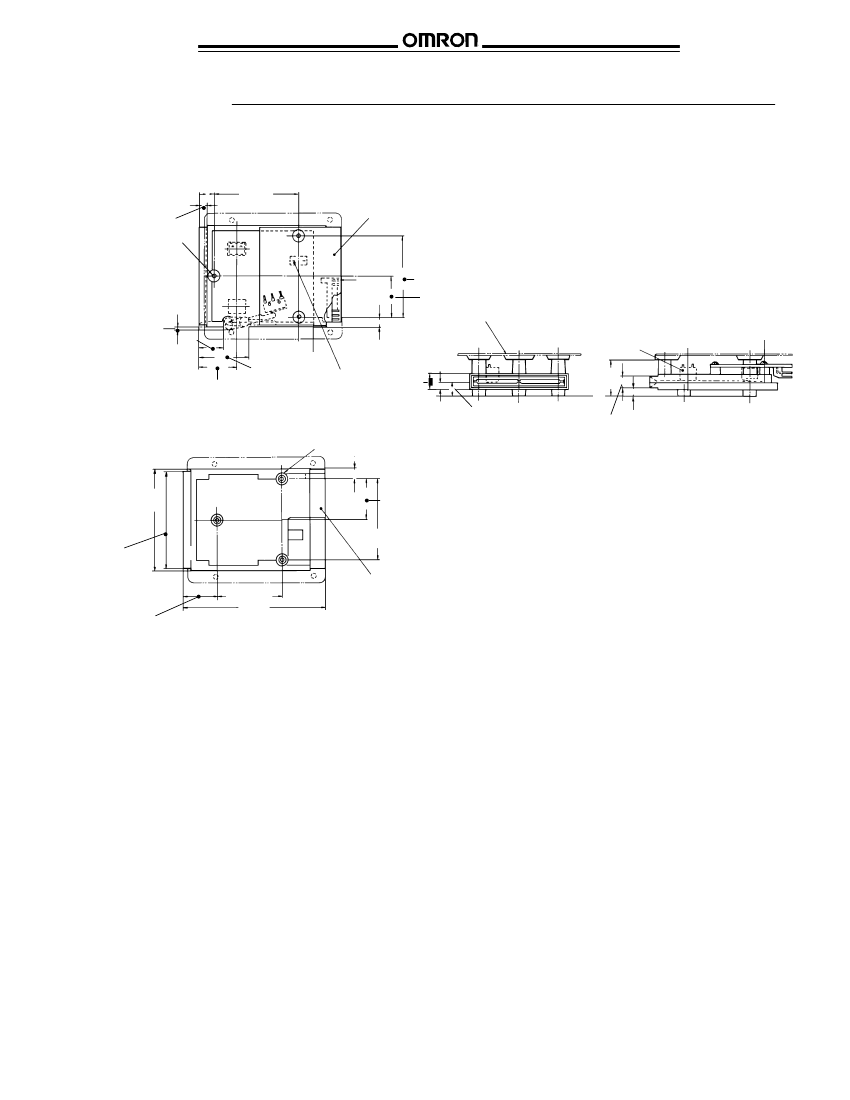

Dimensions
Unit: mm (inch)
s
3S4YR-SBR
9
(0.35)
52
±
0.2
(2.05
±
0.01)
PCB
5 (0.20)
Three 2.1 (0.08) dia.
depth 6 (0.24)
48
±
0.2
(1.89
±
0.01)
Pin no. 1
24
±
0.2
(0.94
±
0.01)
Plate
15
(0.59)
30
(1.18)
6 (0.24)
Snap Action
Switch
Magnetic head
21.5
(0.85)
5 (0.20)
4 (0.16)
8 (0.31)
7 (0.28)
Three M3 threaded hole 5
3 mm max.
(0.12)
23
±
0.5
(0.91
±
0.02)
9 (0.35)
6 (0.24)
60
±
0.3
(2.36
±
0.01)
24
±
0.2
(0.94
±
0.01)
58
±
0.2
(2.28
±
0.01)
40
±
0.2
(1.57
±
0.01)
87
±
1.5
(3.43
±
0.06)
48
±
0.2
(1.89
±
0.01)
Connector
21
(.083)
Note: Unless otherwise indicated, tolerance is
±0.3.
3
3S4YR-SBR
3S4YR-SBR
NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4.
R
One East Commerce Drive
Schaumburg, IL 60173
OMRON ELECTRONICS, INC.
OMRON CANADA, INC.
1-800-55-OMRON
Cat. No. GC CR3
7/00
Specifications subject to change without notice.
416-286-6465
4
885 Milner Avenue
Scarborough, Ontario M1B 5V8
Printed in U.S.A.
