MS27472P14A37S

Description
Circular MIL Spec Connector RECEPT
CategoryThe connector    The connector
File Size117KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

MS27472P14A37S Online Shopping

Suppliers Part Number Price MOQ In stock
MS27472P14A37S - - View Buy Now

MS27472P14A37S Overview

Circular MIL Spec Connector RECEPT

MS27472P14A37S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
Other featuresSTANDARD: MIL-DTL-38999, COMPATIBLE CONTACT: M39029/57-355
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceYES
Mixed contactsNO
Installation typePANEL
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM PLATED
Shell materialALUMINUM ALLOY
Housing size14
Termination typeCRIMP
Total number of contacts37
Amphenol
Aerospace
38999
III
HD
Dualok
II
I
SJT
Commercial
Connector
Type
Shell
Style

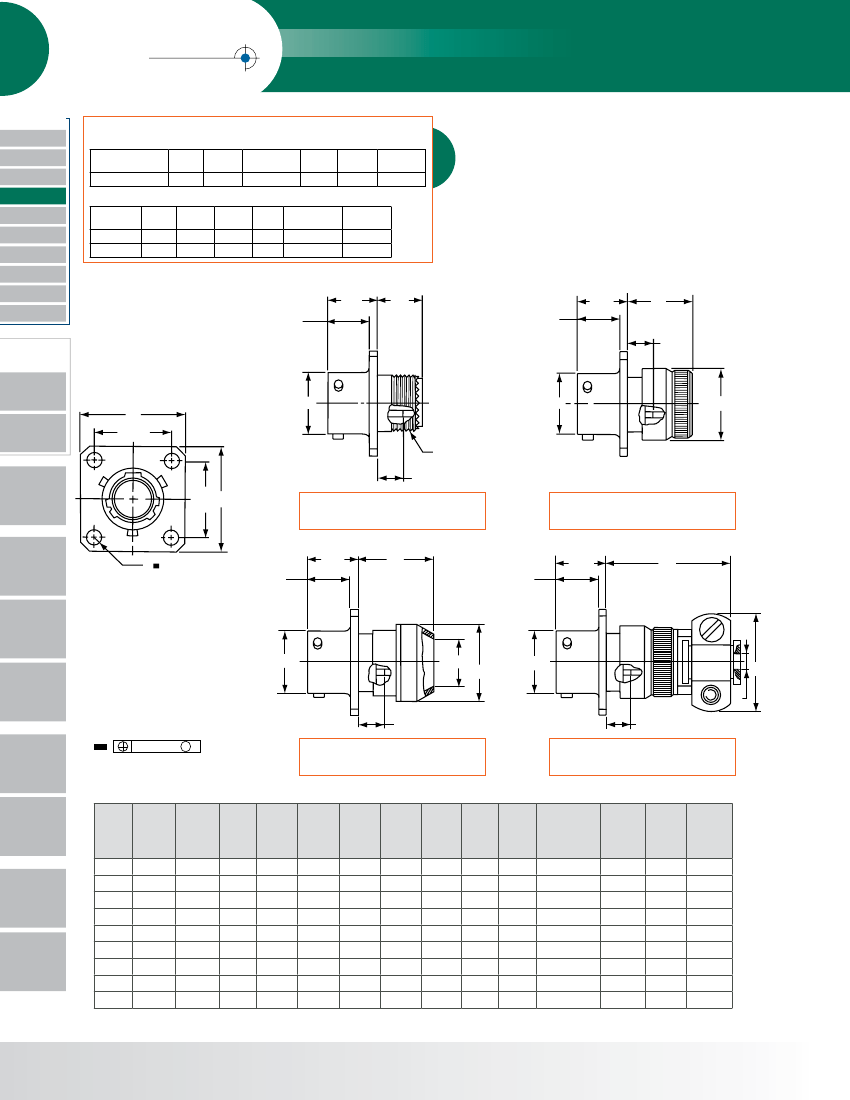

JT00R (MS27472) Series II – Crimp
Wall Mounting Receptacle
PART #
Part number reference. To complete,
see how to order pages 62-66.
Service
Class
Shell Size
& Insert Arrg
Contact Alternate
Type
Position
Special
Variations
JT/JTS/JTN
00
Shell
Size
RT
Finish
22-2
Insert
Arrg
P
Contact Style
(P or S)
A
Alternate
Position
(XXX)
Military
MS
Number
Service
Class
A
ccessories
A
quacon
H
erm/Seal
PCB
MS27472
MS27479
E
E
14
14
A
A
18
18
P
P
A
A
L
L
HigH
Speed
Fiber
Optics
Connectors
Contacts
Cables
S
R (TP)
eMi Filter
Transient
R
S
(TP)
* JT00RT-XX-XXX(MS27472T)
** JTS00RT-XX-XXX(MS27479T)
*** JTN00RT-XX-XXX
* JT00RE-XX-XXX (MS27472E)
** JTS00RE-XX-XXX(MS27479E)
*** JTN00RE-XX-XXX
Matrix 2
26482
T
(4 HOLES)
L
L
83723 iii
26500
pyle
Matrix|pyle
Crimp Rear
Release
Matrix
5015
.005 DIA
M
* Standard Junior Tri-Lock
** High temperature version
*** Clear iridite finish (gold color), N
2
O
4
resistant
F Dia.
+.010
–.025
.125
.188
.312
.375
.500
.625
.625
.750
.800
* JT00RP-XX-XXX(MS27472P)
** JTS00RP-XX-XXX
*** JTN00RP-XX-XXX
* JT00RE-XX-XXX (SR)
** JTS00RE-XX-XXX (SR)
*** JTN00RE-XX-XXX (SR)
Shell
Size
8
10
12
14
16
18
20
22
24
F Dia.
±.010 L Max.
1
L
Max.
1
N
+.001
L
2
Max. L
3
Max. –.005
.547
.547
.547
.547
.547
.547
.547
.547
.547
.500
.500
.500
.500
.500
.500
.500
.500
.500
.473
.590
.750
.875
1.000
1.125
1.250
1.375
1.500
S
R (TP) ±.016
.594
.719
.812
.906
.969
1.062
1.156
1.250
1.375
.812
.938
1.031
1.125
1.219
1.312
1.438
1.562
1.688
T
±.005
.120
.120
.120
.120
.120
.120
.120
.120
.147
V Thread
UNEF
Class 2A
(Plated)
.4375-28
.5625-24
.6875-24
.8125-20
.9375-20
1.0625-18
1.1875-18
1.3125-18
1.4375-18
22992
Class L
KK
Max.
.812
.875
1.000
1.125
1.188
1.438
1.438
1.625
1.719
KK
1
Dia.
Max.
.625
.750
.875
1.000
1.125
1.250
1.375
1.500
1.625
KK
2
Dia.
Max.
.578
.703
.828
.953
1.078
1.203
1.328
1.453
1.578
.444
.558
.683
.808
.909
1.034
1.159
1.284
1.409
1.094
1.094
1.094
1.344
1.344
1.344
1.344
1.469
1.469
.609
.609
.609
.609
.609
.609
.609
.609
.688
Options
Others
Back-
Shells
All dimensions for reference only.
68
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
