88638-60002

Description
Card Edge Connector, 168 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket
CategoryThe connector    The connector
File Size444KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

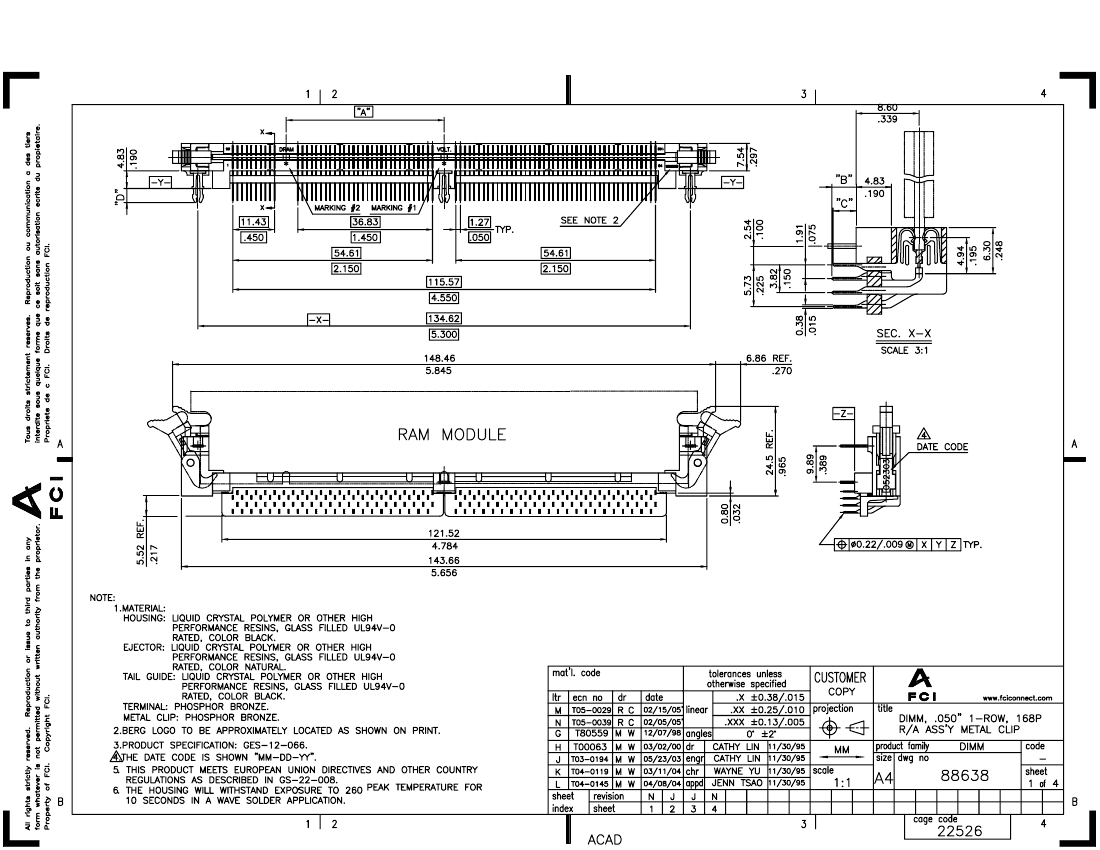

88638-60002 Overview

Card Edge Connector, 168 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket

88638-60002 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresKEYED
Board mount optionsSPLIT BOARD LOCK
body width0.487 inch
subject depth1.182 inch
body length5.656 inch
Body/casing typeSOCKET
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationTIN LEAD OVER NICKEL
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number88638
Plug contact pitch0.05 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE

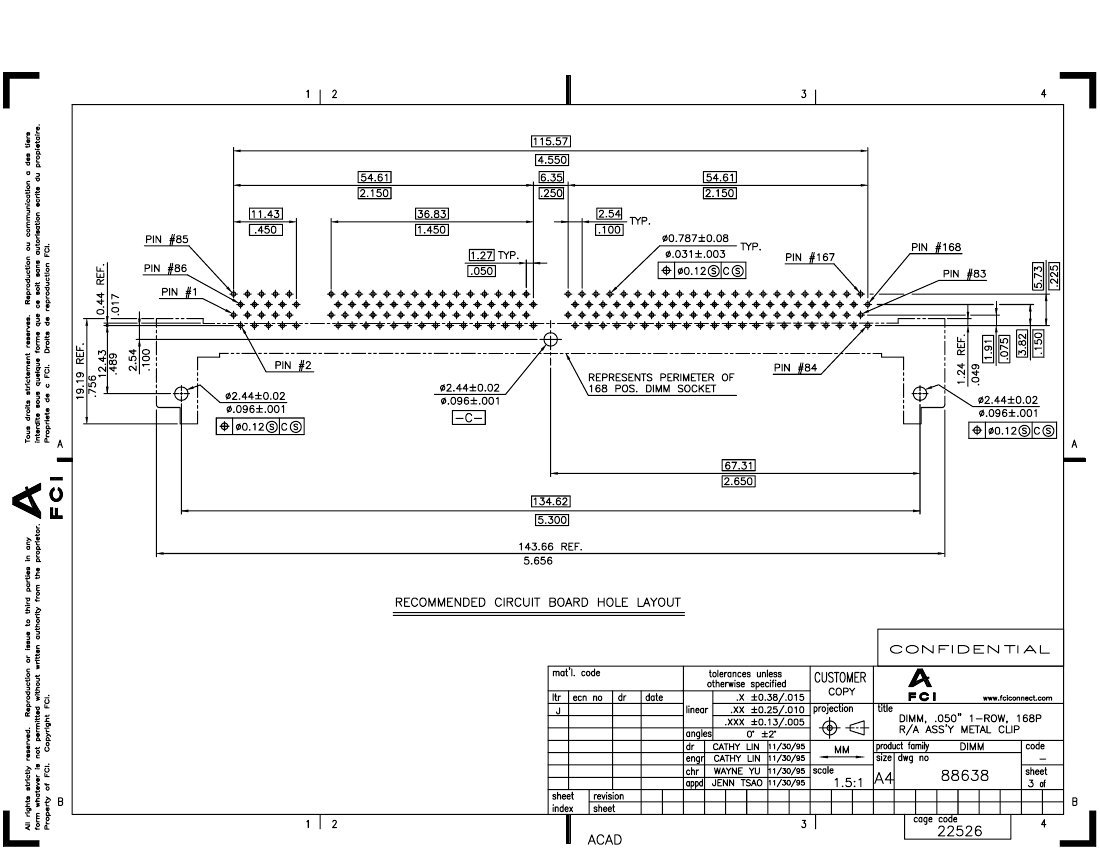

PCB contact patternSTAGGERED
PCB contact row spacing0.075 mm
Plating thickness15u inch

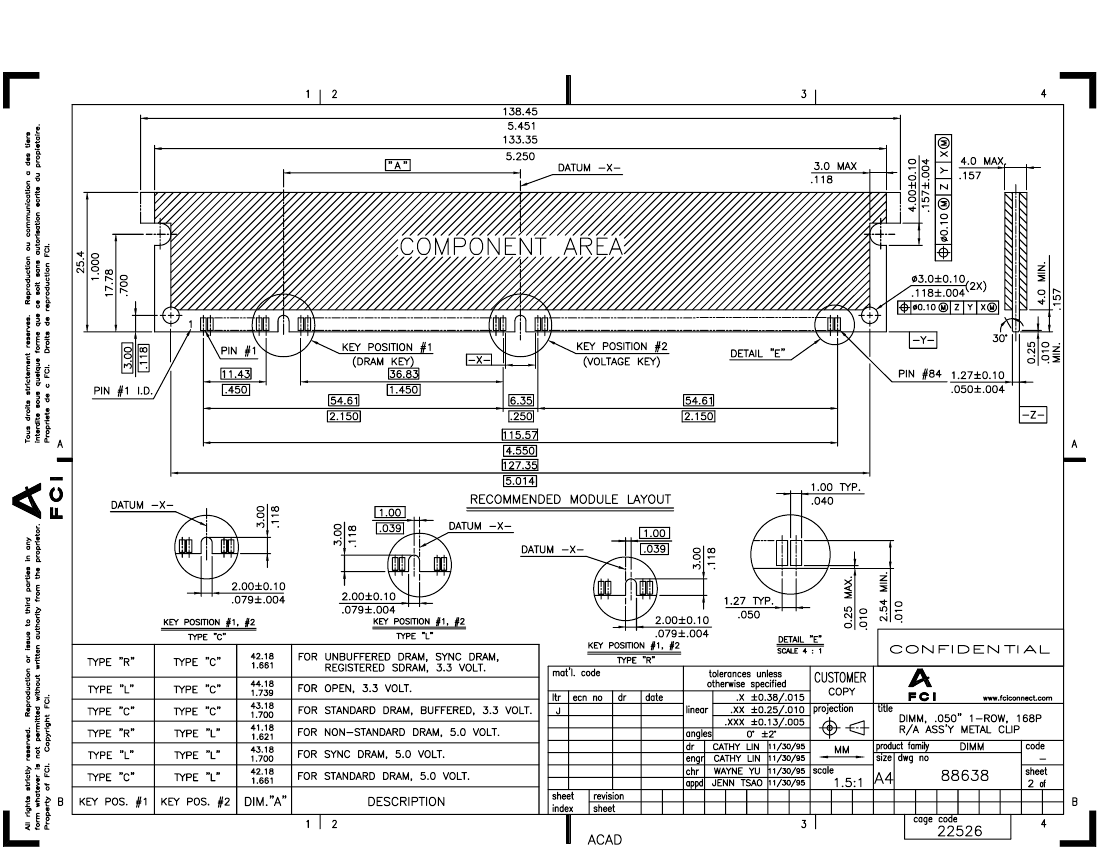

polarization keyPOLARIZED KEY
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.094 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts168
UL Flammability Code94V-0
Base Number Matches1
PDM: Rev:N
STATUS:
Released
Printed: Jan 23, 2010
.

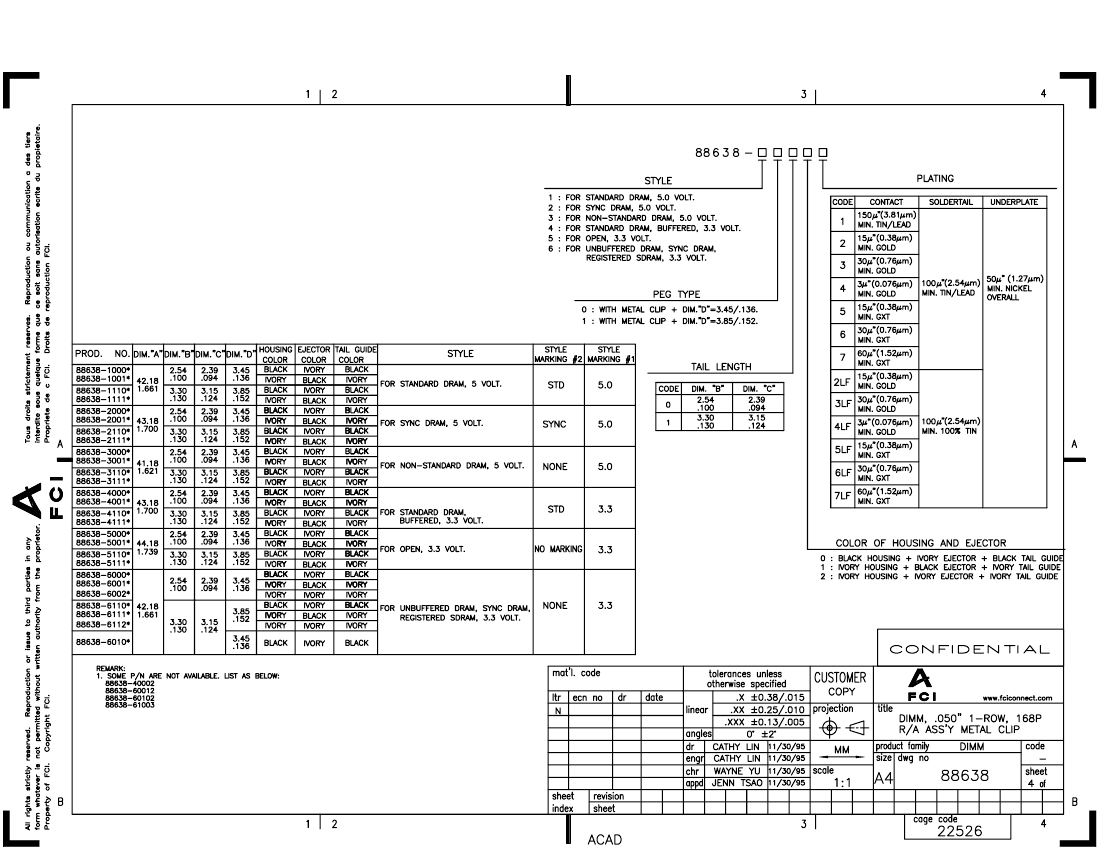

88638-60002 Related Products

88638-60002 88638-60003
Description Card Edge Connector, 168 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket Card Edge Connector, 168 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket
Is it Rohs certified? incompatible incompatible
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features KEYED KEYED
Board mount options SPLIT BOARD LOCK SPLIT BOARD LOCK
body width 0.487 inch 0.487 inch
subject depth 1.182 inch 1.182 inch
body length 5.656 inch 5.656 inch
Body/casing type SOCKET SOCKET
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contact to complete cooperation TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL
Contact completed and terminated Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
Contact resistance 30 mΩ 30 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE
DIN compliance NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V
Durability 50 Cycles 50 Cycles
Filter function NO NO
IEC compliance NO NO
Insulation resistance 10000000000 Ω 10000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code e0 e0
MIL compliance NO NO
Manufacturer's serial number 88638 88638
Plug contact pitch 0.05 inch 0.05 inch
Mixed contacts NO NO
Installation option 1 LATCH & EJECT LATCH & EJECT
Installation option 2 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 4 4
Number of rows loaded 1 1
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern STAGGERED STAGGERED
PCB contact row spacing 0.075 mm 0.075 mm
Plating thickness 15u inch 30u inch
polarization key POLARIZED KEY POLARIZED KEY
Rated current (signal) 1 A 1 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.094 inch 0.094 inch
Terminal pitch 1.27 mm 1.27 mm
Termination type SOLDER SOLDER
Total number of contacts 168 168
UL Flammability Code 94V-0 94V-0
