MC3403DR2 datasheet, PDF - EEWORLD Datasheet

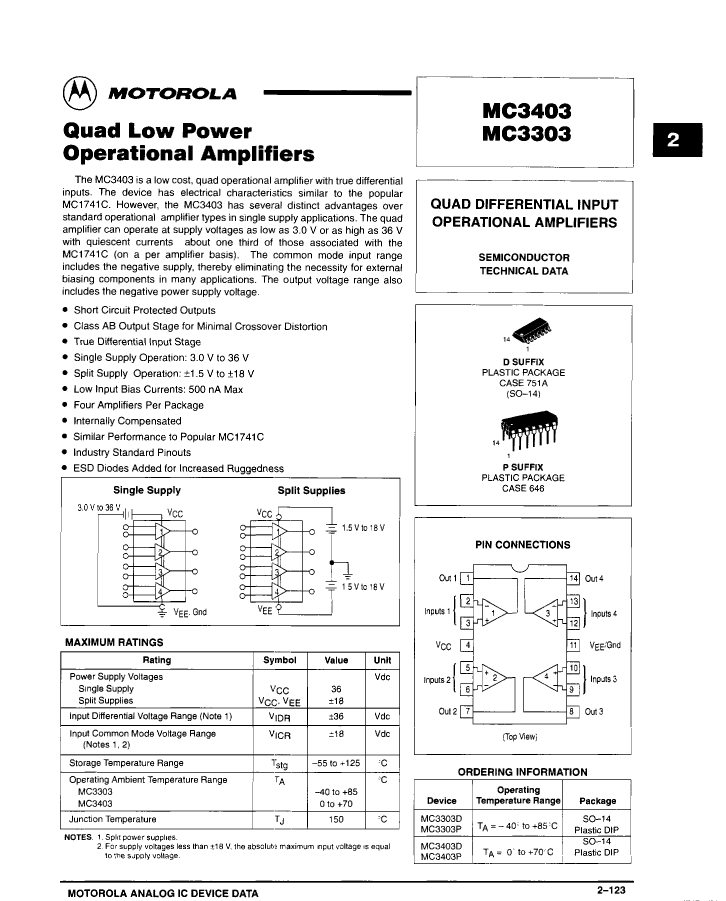

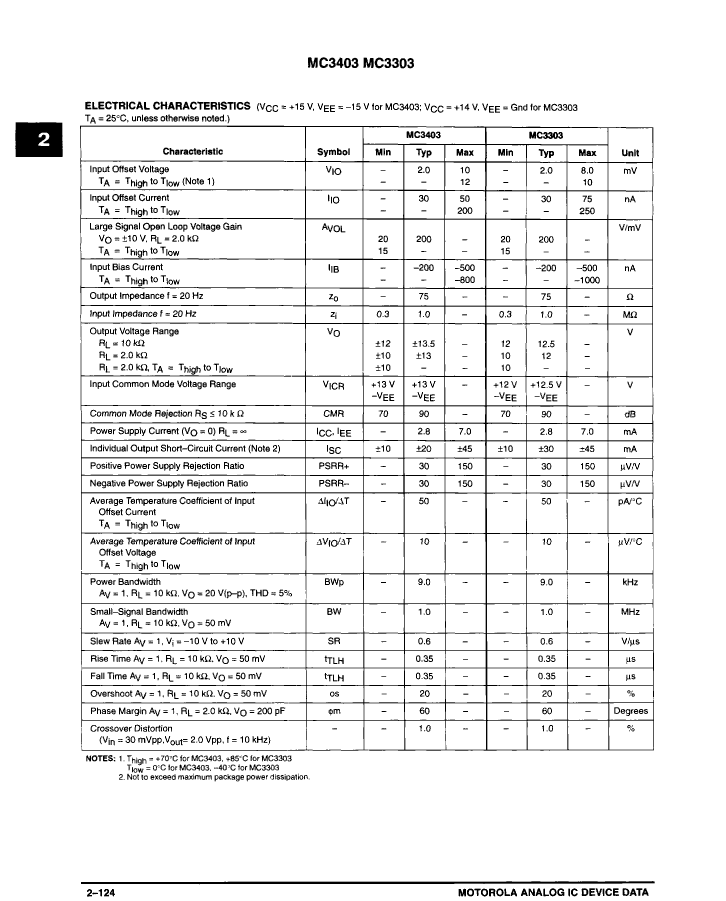

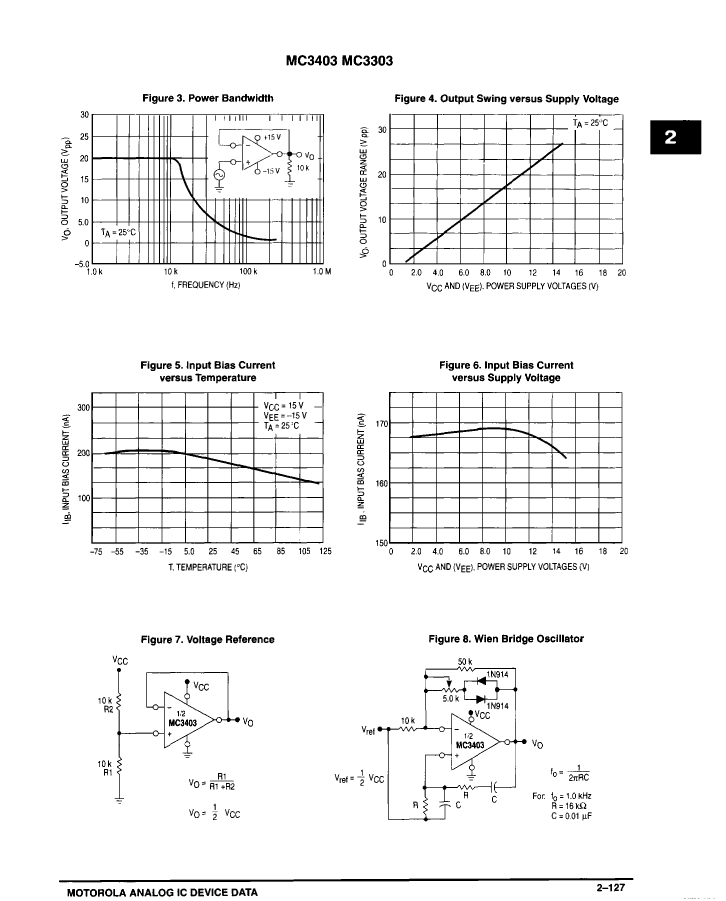

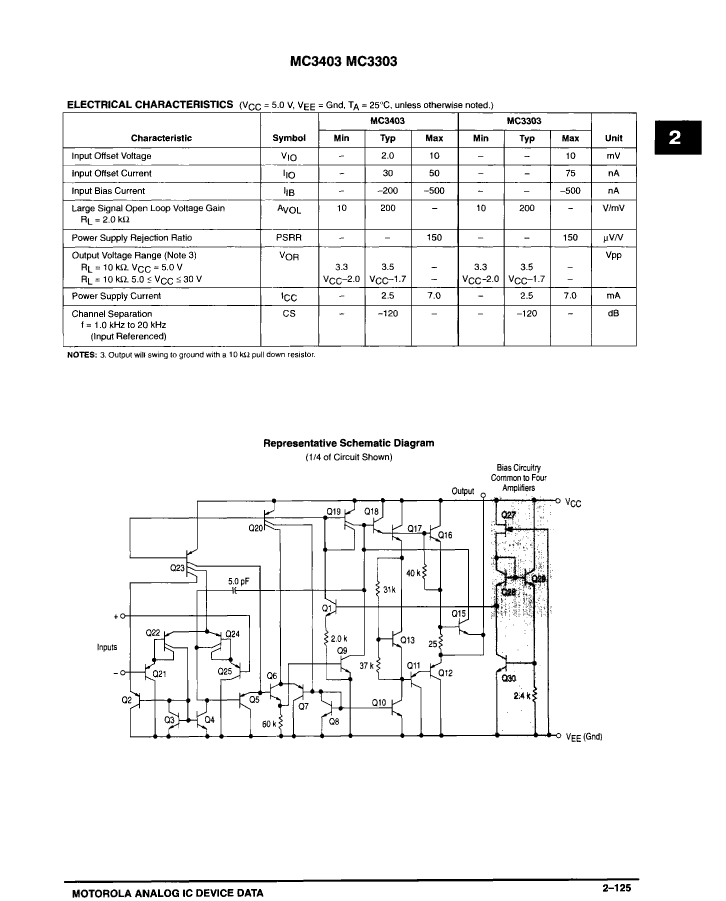

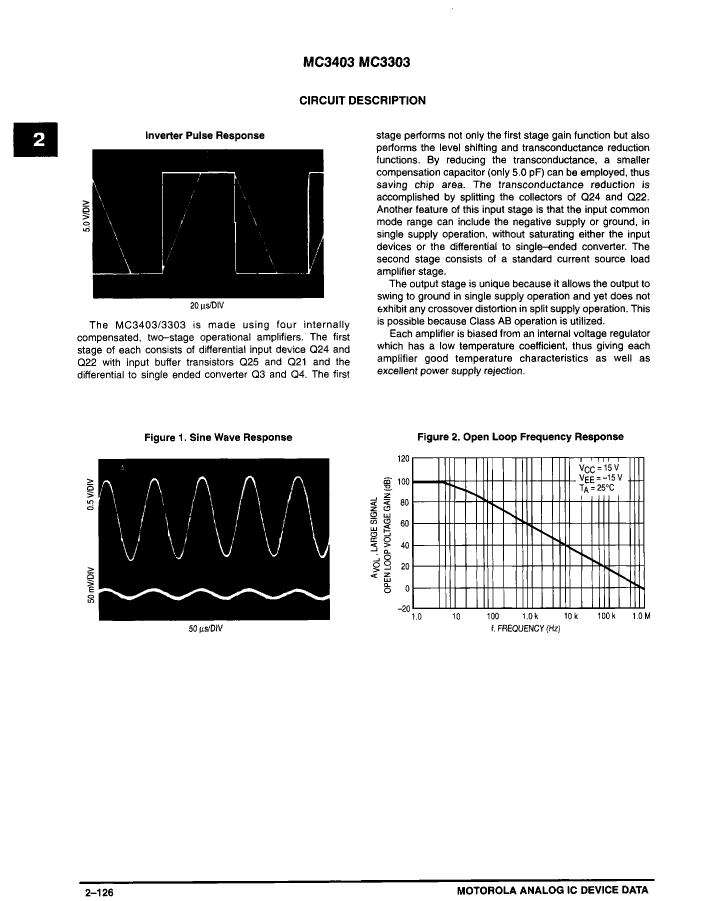

MC3403DR2: DescriptionQUAD OP-AMP, 12000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size182KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC3403DR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC3403DR2	-	-	View	Buy Now

QUAD OP-AMP, 12000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.8 µA
Minimum Common Mode Rejection Ratio	70 dB
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	12000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	0.6 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	20000
width	3.9 mm
Base Number Matches	1

	MC3403DR2	MC3303DR2
Description	QUAD OP-AMP, 12000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14	QUAD OP-AMP, 10000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.8 µA	1 µA
Minimum Common Mode Rejection Ratio	70 dB	70 dB
Nominal Common Mode Rejection Ratio	90 dB	90 dB
Maximum input offset voltage	12000 µV	10000 µV
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	8.65 mm
Negative supply voltage upper limit	-18 V	-18 V
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Nominal slew rate	0.6 V/us	0.6 V/us
Maximum slew rate	7 mA	7 mA
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	15 V	14 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz
Minimum voltage gain	20000	20000
width	3.9 mm	3.9 mm
