KP0215ANBKG036CF-2TJB

Description
Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
CategoryMechanical and electronic products    switch
File Size1MB，12 Pages
ManufacturerNDK
Websitehttp://www.ndk.com/en/
Download Datasheet Parametric Compare View All

KP0215ANBKG036CF-2TJB Online Shopping

Suppliers Part Number Price MOQ In stock
KP0215ANBKG036CF-2TJB - - View Buy Now

KP0215ANBKG036CF-2TJB Overview

Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight,

KP0215ANBKG036CF-2TJB Parametric

Parameter NameAttribute value
Brand NameNKK Switches
Is it lead-free?Lead free
MakerNDK
Reach Compliance Codecompliant
Actuator angle
Actuator stroke3.5052 mm
Actuator typePUSHBUTTON
Other featuresRED/GREEN BICOLOR LED
body width15.0114 mm
body height11.5062 mm
Body length or diameter15.0114 mm
center contact materialSTAINLESS STEEL
Center contact platingGOLD
Maximum contact current (DC)0.1 A
Contact (DC) maximum rated R load0.1A@12VDC
Contact functionOFF-(ON)
Contact resistance0.2 mΩ
Maximum contact voltage (DC)12 V
Dielectric withstand voltage1500VAC V
Electrical life500000 Cycle(s)
End contact materialCOPPER ALLOY
End contact platingGOLD
illuminationLED
Insulation resistance100000000 Ω
Manufacturer's serial numberKP
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating temperature50 °C
Minimum operating temperature-25 °C
PCB hole count9
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typePUSHBUTTON SWITCH
Terminal length0.142 inch
Terminal materialBRASS
Termination typeSOLDER
Base Number Matches1

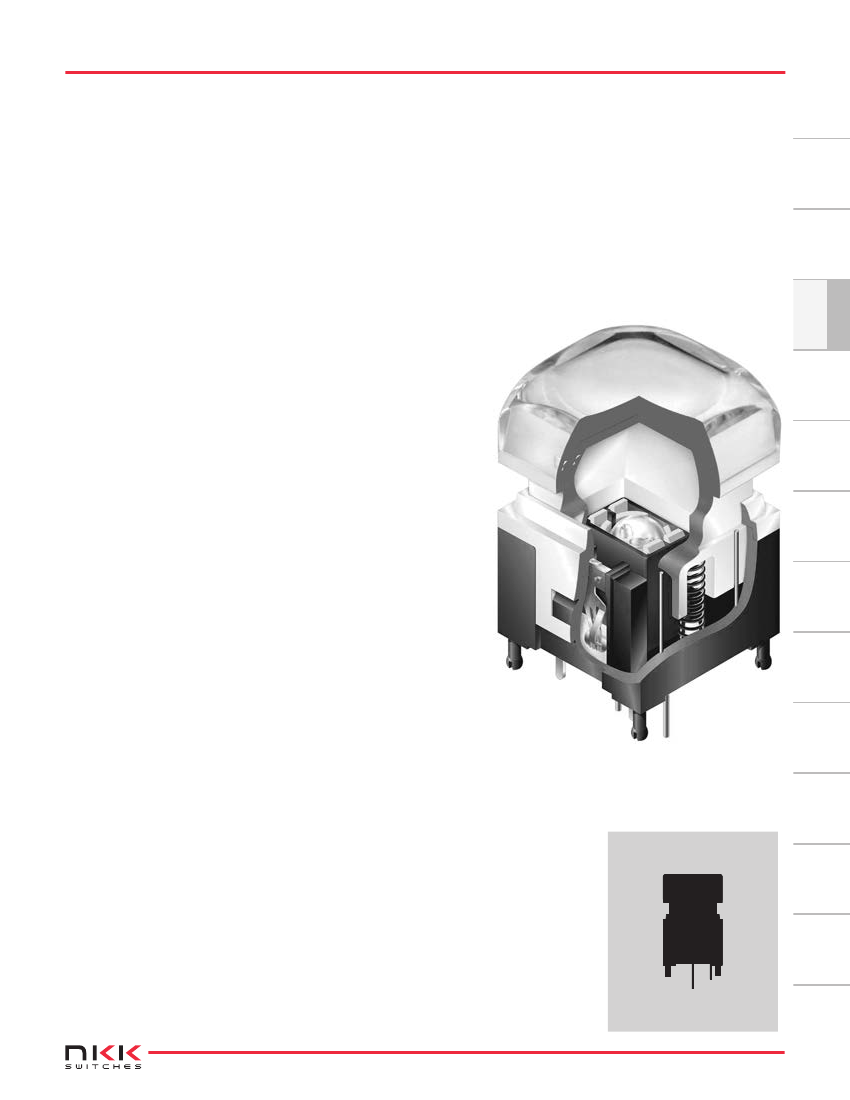

Preview

Download Datasheet
Series KP
Toggles
Miniature Audio/Video Pushbuttons
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Low Level:
100mA maximum @ 12V DC
Pushbuttons
Other Ratings
Programmable
Illuminated PB
D
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Travel:
Keylocks
200 milliohms maximum
100 megohms minimum @ 250V DC
1,000V AC minimum between contacts for 1 minute minimum
1,500V AC minimum between contacts & case for 1 minute minimum
5,000,000 operations minimum;
1,000,000 operations minimum for custom Rectangular Switch/Cap Assembly (at center of cap)
5,000,000 operations minimum
KP01:
1.9N maximum for Tactile & Nontactile models (at center of cap)
KP02:
1.6N maximum for Tactile, Nontactile & Tactile/Audible models (at center of cap)
KP01:
Pretravel .122” (3.1mm); Overtravel .055” (1.4mm); Total Travel .177” (4.5mm)
KP02:
Pretravel .091” (2.3mm); Overtravel .047” (1.2mm); Total Travel .138” (3.5mm)
Materials & Finishes
Plunger/Upper Housing:
Lower Housing:
Movable Contact:
Stationary Contacts:
Switch Terminals:
Polyacetal
Glass fiber reinforced PBT (UL94V-0)
Stainless steel with gold plating
Gold over copper alloy
Brass with tin plating
Slides
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +50°C (–13°F through +122°F)
90-95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
51G (500m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Installation
Cap Installation Force :
50.0N maximum downward force on actuator
Touch
PCB Processing
Soldering:
Cleaning:
Indicators
Wave Soldering. See Profile A in Supplement section.
Manual Soldering. See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Standards & Certifications
Flammability Standards:
Accessories
UL94V-0 lower housing
The KP Series pushbuttons have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
Supplement
D36
www.nkkswitches.com

KP0215ANBKG036CF-2TJB Related Products

KP0215ANBKG036CF-2TJB KP0215ASAKG036CF-1TJB KP0215ASAKG036CF-1FJB KP0215ANBKG036CF-3FJB KP0215ACAKG036CF-1FJB KP0215ACBKG036CF-2TJB KP0215ACBKG036CF-2FJB KP0215ACBKG036CF-3FJB KP0215ASBKG036CF-2SJB
Description Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight, Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
Brand Name NKK Switches NKK Switches NKK Switches NKK Switches NKK Switches NKK Switches NKK Switches NKK Switches NKK Switches
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Maker NDK NDK NDK NDK NDK NDK NDK NDK NDK
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
Actuator stroke 3.5052 mm 3.5052 mm 3.5052 mm 3.5052 mm 3.5052 mm 3.5052 mm 3.5052 mm 3.5052 mm 3.5052 mm
Actuator type PUSHBUTTON PUSHBUTTON PUSHBUTTON PUSHBUTTON PUSHBUTTON PUSHBUTTON PUSHBUTTON PUSHBUTTON PUSHBUTTON
Other features RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED RED/GREEN BICOLOR LED
body width 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm
body height 11.5062 mm 11.5062 mm 11.5062 mm 11.5062 mm 11.5062 mm 11.5062 mm 11.5062 mm 11.5062 mm 11.5062 mm
Body length or diameter 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm 15.0114 mm
center contact material STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL
Center contact plating GOLD GOLD GOLD GOLD GOLD GOLD GOLD GOLD GOLD
Maximum contact current (DC) 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A
Contact (DC) maximum rated R load 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC 0.1A@12VDC
Contact function OFF-(ON) OFF-(ON) OFF-(ON) OFF-(ON) OFF-(ON) OFF-(ON) OFF-(ON) OFF-(ON) OFF-(ON)
Contact resistance 0.2 mΩ 0.2 mΩ 0.2 mΩ 0.2 mΩ 0.2 mΩ 0.2 mΩ 0.2 mΩ 0.2 mΩ 0.2 mΩ
Maximum contact voltage (DC) 12 V 12 V 12 V 12 V 12 V 12 V 12 V 12 V 12 V
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Electrical life 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s) 500000 Cycle(s)
End contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
End contact plating GOLD GOLD GOLD GOLD GOLD GOLD GOLD GOLD GOLD
illumination LED LED LED LED LED LED LED LED LED
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Manufacturer's serial number KP KP KP KP KP KP KP KP KP
Installation features THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT
Maximum operating temperature 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C
Minimum operating temperature -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
PCB hole count 9 9 9 9 9 9 9 9 9
surface mount NO NO NO NO NO NO NO NO NO
Switch action MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY
switch function SPST SPST SPST SPST SPST SPST SPST SPST SPST
Switch type PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH
Terminal length 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch
Terminal material BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Base Number Matches 1 1 1 1 1 1 1 - -
