DA1R026L91 datasheet, PDF - EEWORLD Datasheet

DA1R026L91: DescriptionTelecom and Datacom Connector, 26 Contact(s), Male, Right Angle, Surface Mount Terminal, M2, Plug; CategoryThe connector The connector; File Size225KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric View All

DA1R026L91 Overview

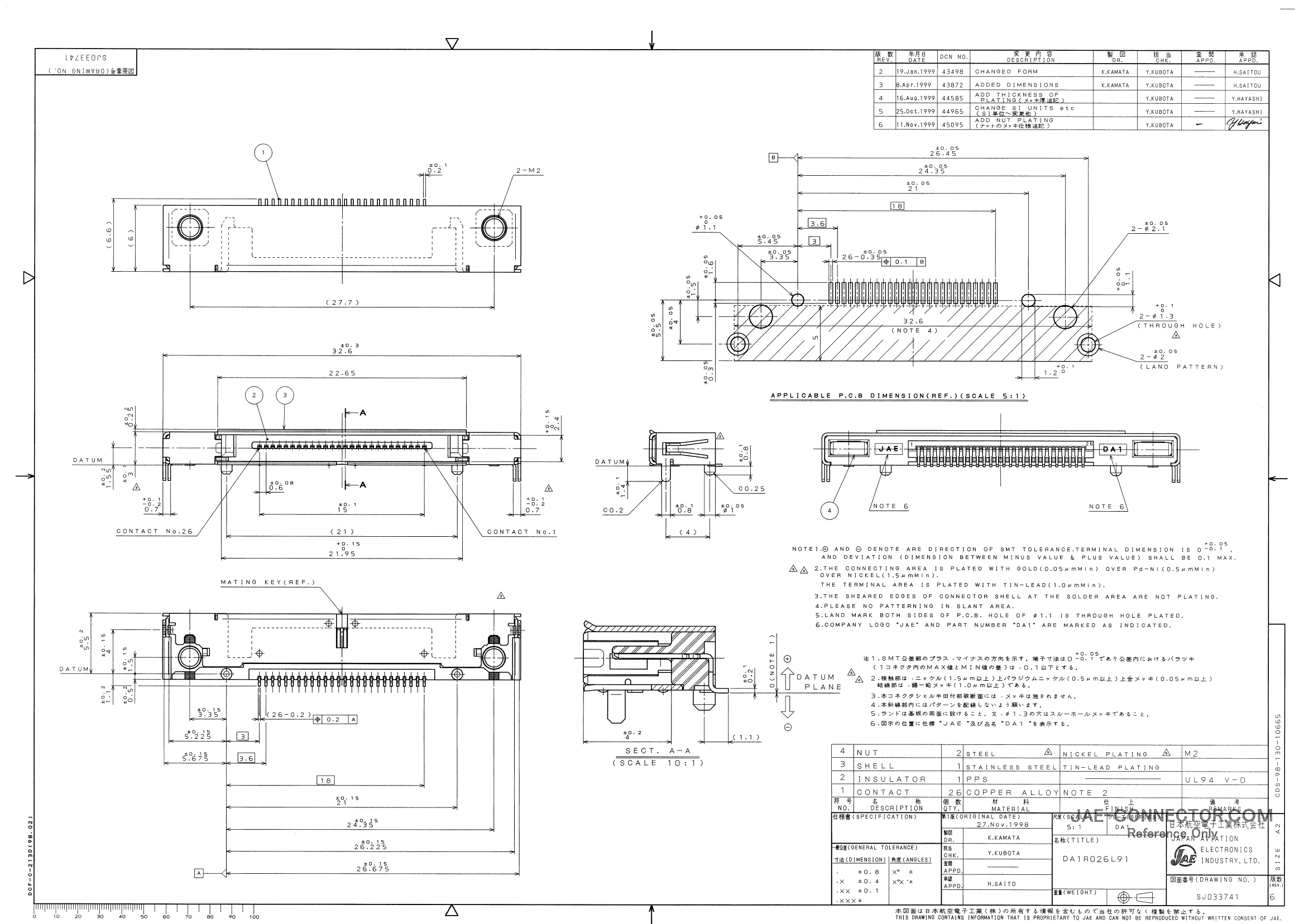

Telecom and Datacom Connector, 26 Contact(s), Male, Right Angle, Surface Mount Terminal, M2, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Other features	NONE
Board mount options	PEG
body width	0.128 inch
subject depth	0.236 inch
body length	1.283 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (2) OVER PALLADIUM NICKEL (20)
Contact completed and terminated	TIN LEAD (39)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.024 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	LOCKNUT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	2u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN LEAD
Shell material	STAINLESS STEEL
Terminal length
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1
